02388-05V-block, vertical, with 2 holes, short |
go back |
|
Item description/product images |
|
|

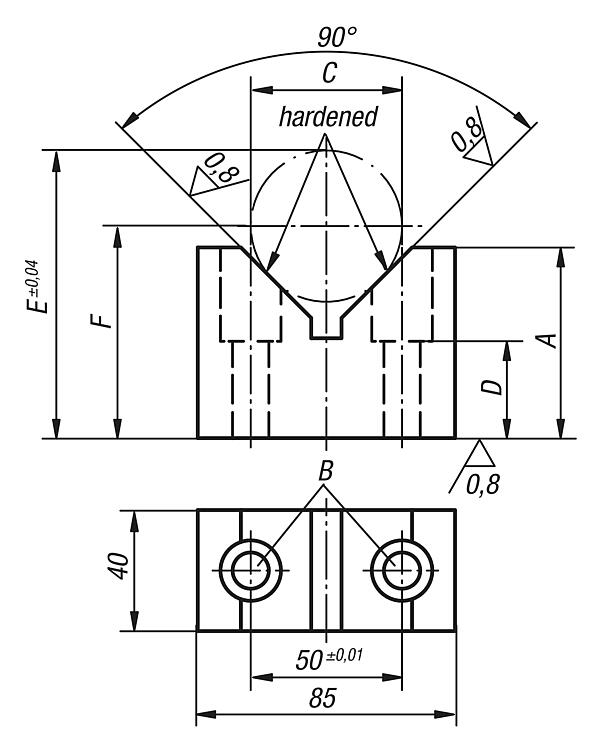

DescriptionMaterial:Carbon steel.Version:Black oxidised.
Prism and contact faces ground.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | A | B
Ø for
shoulder screw | C
min. | C
max. | C
Test-Ø | D | E | F | Suitable
shoulder screw
| CAD | Acc. | Price | Order |
|---|
| 02388-05-60512063 | 63 | 12 F7 | 15 | 80 | 50±0,003 | 32 | 95,071 | C/2x√2+34,716 | 07533-112065 |  | | on request | | | 02388-05-60512075 | 75 | 12 F7 | 15 | 100 | 70±0,003 | 32 | 124,142 | C/2x√2+39,645 | 07533-112065 | | | on request | | | 02388-05-60516063 | 63 | 16 F7 | 15 | 80 | 50±0,003 | 25 | 95,071 | C/2x√2+34,716 | 07533-116065 | | | on request | | | 02388-05-60516075 | 75 | 16 F7 | 15 | 100 | 70±0,003 | 25 | 124,142 | C/2x√2+39,645 | 07533-116065 | | | on request | |
