        Stops, 4 sided for T-slot and grid systems

Item description/product images

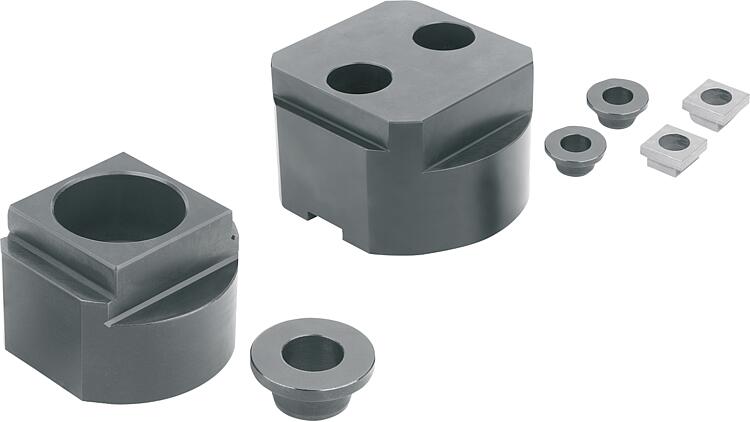

DescriptionProduct description:These 4-sided stops are flexible support and stop elements that can be used in various machining applications.
With the aid of these stops, workpieces can be precisely positioned and aligned at defined levels via the integrated steps.
Single or multiple clamping can be realised with the stops.Material:Steel.Version:Hardened, black oxidised.Note:The Form A 4-sided stops can be used on grid systems.
The Form B 4-sided stops can be used on grid and T-slot systems.Assembly:The 4-sided stops are positioned and fastened using shoulder screws (M12, M16) on grid systems and T-slot keys and cap screws on T-slot systems (14, 18, 22).Accessory:Shoulder screws 07533.
Cap screws 07160.Supplied withForm A
System size M12:
1x body stop
1x reducer bush for M12 shoulder screw (single)
2x reducer bushes for M12 shoulder screw (double)

System size M16:
1x body stop

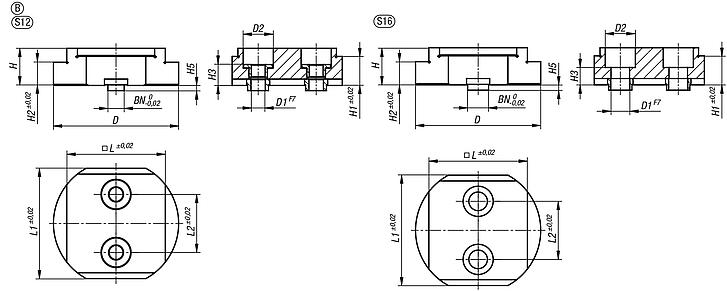

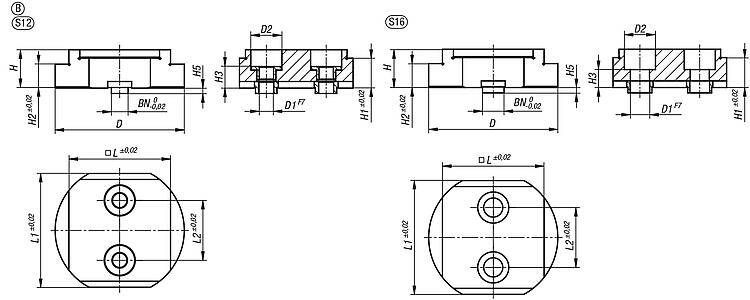

Form B
System size M12:
1x body stop
2x reducer bushes for M12 shoulder screw
2x T-slot keys

System size M16:
1x body stop
2x T-slot keys

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02394-10 Stops, 4 sided for T-slot and grid systems

223 kB

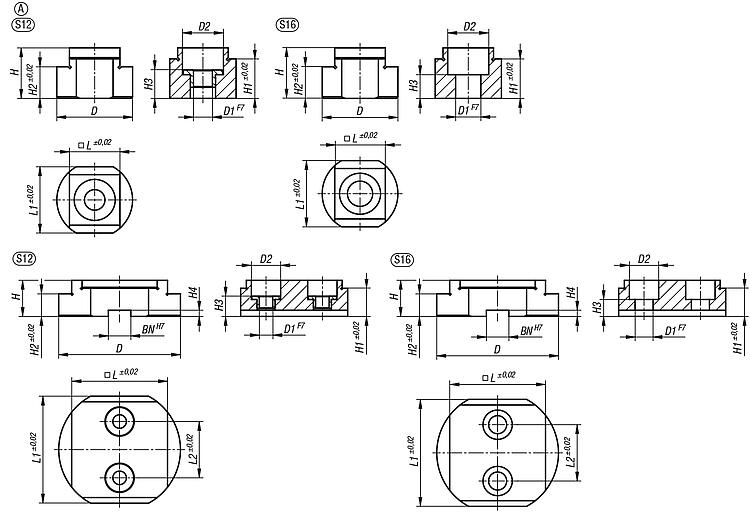

Drawings (total overview)

More information

Drawings

Item selection/filter

Order No.	Size	Version 2	Form	D	D1	D2	H	H1	H2	H3	H4	L	L1	L2	BN=Slot width	Price
02394-10-11232	System size 12	single	A	48	12	26	32	25	20	18	-	32	42	-	-	on request
02394-10-11240	System size 12	single	A	48	12	26	40	32	25	23	-	32	42	-	-	on request
02394-10-11250	System size 12	single	A	48	12	26	50	40	32	33	-	32	42	-	-	on request
02394-10-11263	System size 12	single	A	48	12	26	63	50	40	42	-	32	42	-	-	on request
02394-10-11632	System size 16	single	A	48	16	26	32	25	20	15	-	32	42	-	-	on request
02394-10-11640	System size 16	single	A	48	16	26	40	32	25	20	-	32	42	-	-	on request
02394-10-11650	System size 16	single	A	48	16	26	50	40	32	30	-	32	42	-	-	on request
02394-10-11663	System size 16	single	A	48	16	26	63	50	40	39	-	32	42	-	-	on request
02394-10-21232	System size 12	duplex	A	108	12	26	32	25	20	18	5,5	85	95	50	20	on request
02394-10-21240	System size 12	duplex	A	108	12	26	40	32	25	23	5,5	85	95	50	20	on request
02394-10-21250	System size 12	duplex	A	108	12	26	50	40	32	36	5,5	85	95	50	20	on request
02394-10-21263	System size 12	duplex	A	108	12	26	63	50	40	49	5,5	85	95	50	20	on request
02394-10-21632	System size 16	duplex	A	108	16	26	32	25	20	15	5,5	85	95	50	20	on request
02394-10-21640	System size 16	duplex	A	108	16	26	40	32	25	20	5,5	85	95	50	20	on request
02394-10-21650	System size 16	duplex	A	108	16	26	50	40	32	33	5,5	85	95	50	20	on request
02394-10-21663	System size 16	duplex	A	108	16	26	63	50	40	46	5,5	85	95	50	20	on request

More information

Drawings

Item selection/filter

Order No.	Size	Version 2	Form	D	D1	D2	H	H1	H2	H3	H5	L	L1	L2	BN=Slot width	Price
02394-10-2123214	System size 12	duplex	B	108	12	26	32	25	20	18	4,5	85	95	50	14	on request
02394-10-2124014	System size 12	duplex	B	108	12	26	40	32	25	23	4,5	85	95	50	14	on request
02394-10-2125014	System size 12	duplex	B	108	12	26	50	40	32	36	4,5	85	95	50	14	on request
02394-10-2126314	System size 12	duplex	B	108	12	26	63	50	40	49	4,5	85	95	50	14	on request
02394-10-216321822	System size 16	duplex	B	108	16	26	32	25	20	15	4,5	85	95	50	18/22	on request
02394-10-216401822	System size 16	duplex	B	108	16	26	40	32	25	20	4,5	85	95	50	18/22	on request
02394-10-216501822	System size 16	duplex	B	108	16	26	50	40	32	33	4,5	85	95	50	18/22	on request
02394-10-216631822	System size 16	duplex	B	108	16	26	63	50	40	46	4,5	85	95	50	18/22	on request
