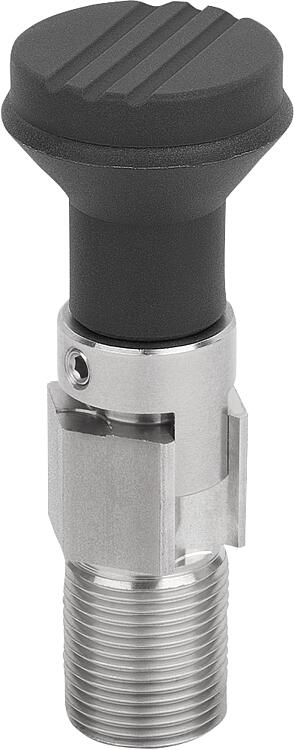

        Actuating elements for remote control, stainless steel, with mushroom grip, Bowden cable systems
        Actuating elements for remote control, stainless steel, with detent function and mushroom grip, Bowden cable systems

Item description/product images

DescriptionProduct description:The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Actuation variants: with detent function, without detent function, with rotation lock, rotary cam.
Grip types: Mushroom grip, T-grip, star grip, clamping lever.Material:

Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:Stainless steel parts bright.
Setscrew electro zinc-plated.
Plastic grip available in various colours.Note for ordering:We recommend using the online shop configurator to create a complete system with ease.Note:When installing the Bowden cables, the following points should be noted:
The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Indexing plunger 03096-08.
Indexing plunger 03096-09.
Hex nut 07212.
Mounting bracket 03099.
Bowden cable 03096-14.
Wire cable 03096-15.
Tension sleeve 03096-20.
End sleeve 03096-25.
Setscrew 03096-30.
Bowden cable distributor 03096-50.Supplied withActuating element with plastic grip and optional setscrew.Drawing reference:

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096-07_B Actuating elements for remote control, stainless steel, with detent function and mushroom grip, Bowden cable systems

259 kB

Drawings

Item selection/filter

Order No.	Version 1	Bowden cable connection	Size	Form	Form definition	Component colour	D	D Internal thread	D1	D2	Price
03096-07-1211104	with mushroom grip	single	1	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1211105	with mushroom grip	single	1	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1211106	with mushroom grip	single	1	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1221108	with mushroom grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1221110	with mushroom grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1221112	with mushroom grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1221116	with mushroom grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1213104	with mushroom grip	-	1	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1213105	with mushroom grip	-	1	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1213106	with mushroom grip	-	1	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1223108	with mushroom grip	-	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1223110	with mushroom grip	-	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1223112	with mushroom grip	-	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1223116	with mushroom grip	-	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-12111104	with mushroom grip	single	1	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12111105	with mushroom grip	single	1	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12111106	with mushroom grip	single	1	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12211108	with mushroom grip	single	2	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12211110	with mushroom grip	single	2	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12211112	with mushroom grip	single	2	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12211116	with mushroom grip	single	2	B	with detent	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-12131104	with mushroom grip	-	1	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12131105	with mushroom grip	-	1	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12131106	with mushroom grip	-	1	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12231108	with mushroom grip	-	2	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12231110	with mushroom grip	-	2	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12231112	with mushroom grip	-	2	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12231116	with mushroom grip	-	2	B	with detent	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-12111204	with mushroom grip	single	1	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12111205	with mushroom grip	single	1	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12111206	with mushroom grip	single	1	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12211208	with mushroom grip	single	2	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12211210	with mushroom grip	single	2	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12211212	with mushroom grip	single	2	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12211216	with mushroom grip	single	2	B	with detent	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-12131204	with mushroom grip	-	1	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12131205	with mushroom grip	-	1	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12131206	with mushroom grip	-	1	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12231208	with mushroom grip	-	2	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12231210	with mushroom grip	-	2	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12231212	with mushroom grip	-	2	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12231216	with mushroom grip	-	2	B	with detent	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-12111304	with mushroom grip	single	1	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12111305	with mushroom grip	single	1	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12111306	with mushroom grip	single	1	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12211308	with mushroom grip	single	2	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12211310	with mushroom grip	single	2	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12211312	with mushroom grip	single	2	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12211316	with mushroom grip	single	2	B	with detent	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-12131304	with mushroom grip	-	1	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12131305	with mushroom grip	-	1	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12131306	with mushroom grip	-	1	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12231308	with mushroom grip	-	2	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12231310	with mushroom grip	-	2	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12231312	with mushroom grip	-	2	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12231316	with mushroom grip	-	2	B	with detent	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-12111504	with mushroom grip	single	1	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12111505	with mushroom grip	single	1	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12111506	with mushroom grip	single	1	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12211508	with mushroom grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12211510	with mushroom grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12211512	with mushroom grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12211516	with mushroom grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-12131504	with mushroom grip	-	1	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12131505	with mushroom grip	-	1	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12131506	with mushroom grip	-	1	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12231508	with mushroom grip	-	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12231510	with mushroom grip	-	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12231512	with mushroom grip	-	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12231516	with mushroom grip	-	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-12111604	with mushroom grip	single	1	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12111605	with mushroom grip	single	1	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12111606	with mushroom grip	single	1	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12211608	with mushroom grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12211610	with mushroom grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12211612	with mushroom grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12211616	with mushroom grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-12131604	with mushroom grip	-	1	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12131605	with mushroom grip	-	1	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12131606	with mushroom grip	-	1	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12231608	with mushroom grip	-	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12231610	with mushroom grip	-	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12231612	with mushroom grip	-	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12231616	with mushroom grip	-	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-12111704	with mushroom grip	single	1	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12111705	with mushroom grip	single	1	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12111706	with mushroom grip	single	1	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12211708	with mushroom grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12211710	with mushroom grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12211712	with mushroom grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12211716	with mushroom grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-12131704	with mushroom grip	-	1	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-12131705	with mushroom grip	-	1	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-12131706	with mushroom grip	-	1	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-12231708	with mushroom grip	-	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-12231710	with mushroom grip	-	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-12231712	with mushroom grip	-	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-12231716	with mushroom grip	-	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	33	on request

Order No.	Bowden cable connection	Size	Component colour	L	L1	L2	L3	L4	Travel S	SW	Price
03096-07-1211104	single	1	black grey RAL 7021	76	25	10	21,2	8	4	22	on request
03096-07-1211105	single	1	black grey RAL 7021	76	25	10	21,2	8	5	22	on request
03096-07-1211106	single	1	black grey RAL 7021	76	25	10	21,2	8	6	22	on request
03096-07-1221108	single	2	black grey RAL 7021	86	25	20	21,2	8	8	22	on request
03096-07-1221110	single	2	black grey RAL 7021	86	25	20	21,2	8	10	22	on request
03096-07-1221112	single	2	black grey RAL 7021	86	25	20	21,2	8	12	22	on request
03096-07-1221116	single	2	black grey RAL 7021	86	25	20	21,2	8	16	22	on request
03096-07-1213104	-	1	black grey RAL 7021	76	25	10	21,2	8	4	22	on request
03096-07-1213105	-	1	black grey RAL 7021	76	25	10	21,2	8	5	22	on request
03096-07-1213106	-	1	black grey RAL 7021	76	25	10	21,2	8	6	22	on request
03096-07-1223108	-	2	black grey RAL 7021	86	25	20	21,2	8	8	22	on request
03096-07-1223110	-	2	black grey RAL 7021	86	25	20	21,2	8	10	22	on request
03096-07-1223112	-	2	black grey RAL 7021	86	25	20	21,2	8	12	22	on request
03096-07-1223116	-	2	black grey RAL 7021	86	25	20	21,2	8	16	22	on request
03096-07-12111104	single	1	orange RAL 2004	76	25	10	21,2	8	4	22	on request
03096-07-12111105	single	1	orange RAL 2004	76	25	10	21,2	8	5	22	on request
03096-07-12111106	single	1	orange RAL 2004	76	25	10	21,2	8	6	22	on request
03096-07-12211108	single	2	orange RAL 2004	86	25	20	21,2	8	8	22	on request
03096-07-12211110	single	2	orange RAL 2004	86	25	20	21,2	8	10	22	on request
03096-07-12211112	single	2	orange RAL 2004	86	25	20	21,2	8	12	22	on request
03096-07-12211116	single	2	orange RAL 2004	86	25	20	21,2	8	16	22	on request
03096-07-12131104	-	1	orange RAL 2004	76	25	10	21,2	8	4	22	on request
03096-07-12131105	-	1	orange RAL 2004	76	25	10	21,2	8	5	22	on request
03096-07-12131106	-	1	orange RAL 2004	76	25	10	21,2	8	6	22	on request
03096-07-12231108	-	2	orange RAL 2004	86	25	20	21,2	8	8	22	on request
03096-07-12231110	-	2	orange RAL 2004	86	25	20	21,2	8	10	22	on request
03096-07-12231112	-	2	orange RAL 2004	86	25	20	21,2	8	12	22	on request
03096-07-12231116	-	2	orange RAL 2004	86	25	20	21,2	8	16	22	on request
03096-07-12111204	single	1	signal green RAL 6032	76	25	10	21,2	8	4	22	on request
03096-07-12111205	single	1	signal green RAL 6032	76	25	10	21,2	8	5	22	on request
03096-07-12111206	single	1	signal green RAL 6032	76	25	10	21,2	8	6	22	on request
03096-07-12211208	single	2	signal green RAL 6032	86	25	20	21,2	8	8	22	on request
03096-07-12211210	single	2	signal green RAL 6032	86	25	20	21,2	8	10	22	on request
03096-07-12211212	single	2	signal green RAL 6032	86	25	20	21,2	8	12	22	on request
03096-07-12211216	single	2	signal green RAL 6032	86	25	20	21,2	8	16	22	on request
03096-07-12131204	-	1	signal green RAL 6032	76	25	10	21,2	8	4	22	on request
03096-07-12131205	-	1	signal green RAL 6032	76	25	10	21,2	8	5	22	on request
03096-07-12131206	-	1	signal green RAL 6032	76	25	10	21,2	8	6	22	on request
03096-07-12231208	-	2	signal green RAL 6032	86	25	20	21,2	8	8	22	on request
03096-07-12231210	-	2	signal green RAL 6032	86	25	20	21,2	8	10	22	on request
03096-07-12231212	-	2	signal green RAL 6032	86	25	20	21,2	8	12	22	on request
03096-07-12231216	-	2	signal green RAL 6032	86	25	20	21,2	8	16	22	on request
03096-07-12111304	single	1	traffic blue RAL 5017	76	25	10	21,2	8	4	22	on request
03096-07-12111305	single	1	traffic blue RAL 5017	76	25	10	21,2	8	5	22	on request
03096-07-12111306	single	1	traffic blue RAL 5017	76	25	10	21,2	8	6	22	on request
03096-07-12211308	single	2	traffic blue RAL 5017	86	25	20	21,2	8	8	22	on request
03096-07-12211310	single	2	traffic blue RAL 5017	86	25	20	21,2	8	10	22	on request
03096-07-12211312	single	2	traffic blue RAL 5017	86	25	20	21,2	8	12	22	on request
03096-07-12211316	single	2	traffic blue RAL 5017	86	25	20	21,2	8	16	22	on request
03096-07-12131304	-	1	traffic blue RAL 5017	76	25	10	21,2	8	4	22	on request
03096-07-12131305	-	1	traffic blue RAL 5017	76	25	10	21,2	8	5	22	on request
03096-07-12131306	-	1	traffic blue RAL 5017	76	25	10	21,2	8	6	22	on request
03096-07-12231308	-	2	traffic blue RAL 5017	86	25	20	21,2	8	8	22	on request
03096-07-12231310	-	2	traffic blue RAL 5017	86	25	20	21,2	8	10	22	on request
03096-07-12231312	-	2	traffic blue RAL 5017	86	25	20	21,2	8	12	22	on request
03096-07-12231316	-	2	traffic blue RAL 5017	86	25	20	21,2	8	16	22	on request
03096-07-12111504	single	1	light grey RAL 7035	76	25	10	21,2	8	4	22	on request
03096-07-12111505	single	1	light grey RAL 7035	76	25	10	21,2	8	5	22	on request
03096-07-12111506	single	1	light grey RAL 7035	76	25	10	21,2	8	6	22	on request
03096-07-12211508	single	2	light grey RAL 7035	86	25	20	21,2	8	8	22	on request
03096-07-12211510	single	2	light grey RAL 7035	86	25	20	21,2	8	10	22	on request
03096-07-12211512	single	2	light grey RAL 7035	86	25	20	21,2	8	12	22	on request
03096-07-12211516	single	2	light grey RAL 7035	86	25	20	21,2	8	16	22	on request
03096-07-12131504	-	1	light grey RAL 7035	76	25	10	21,2	8	4	22	on request
03096-07-12131505	-	1	light grey RAL 7035	76	25	10	21,2	8	5	22	on request
03096-07-12131506	-	1	light grey RAL 7035	76	25	10	21,2	8	6	22	on request
03096-07-12231508	-	2	light grey RAL 7035	86	25	20	21,2	8	8	22	on request
03096-07-12231510	-	2	light grey RAL 7035	86	25	20	21,2	8	10	22	on request
03096-07-12231512	-	2	light grey RAL 7035	86	25	20	21,2	8	12	22	on request
03096-07-12231516	-	2	light grey RAL 7035	86	25	20	21,2	8	16	22	on request
03096-07-12111604	single	1	traffic red RAL 3020	76	25	10	21,2	8	4	22	on request
03096-07-12111605	single	1	traffic red RAL 3020	76	25	10	21,2	8	5	22	on request
03096-07-12111606	single	1	traffic red RAL 3020	76	25	10	21,2	8	6	22	on request
03096-07-12211608	single	2	traffic red RAL 3020	86	25	20	21,2	8	8	22	on request
03096-07-12211610	single	2	traffic red RAL 3020	86	25	20	21,2	8	10	22	on request
03096-07-12211612	single	2	traffic red RAL 3020	86	25	20	21,2	8	12	22	on request
03096-07-12211616	single	2	traffic red RAL 3020	86	25	20	21,2	8	16	22	on request
03096-07-12131604	-	1	traffic red RAL 3020	76	25	10	21,2	8	4	22	on request
03096-07-12131605	-	1	traffic red RAL 3020	76	25	10	21,2	8	5	22	on request
03096-07-12131606	-	1	traffic red RAL 3020	76	25	10	21,2	8	6	22	on request
03096-07-12231608	-	2	traffic red RAL 3020	86	25	20	21,2	8	8	22	on request
03096-07-12231610	-	2	traffic red RAL 3020	86	25	20	21,2	8	10	22	on request
03096-07-12231612	-	2	traffic red RAL 3020	86	25	20	21,2	8	12	22	on request
03096-07-12231616	-	2	traffic red RAL 3020	86	25	20	21,2	8	16	22	on request
03096-07-12111704	single	1	colza yellow RAL 1021	76	25	10	21,2	8	4	22	on request
03096-07-12111705	single	1	colza yellow RAL 1021	76	25	10	21,2	8	5	22	on request
03096-07-12111706	single	1	colza yellow RAL 1021	76	25	10	21,2	8	6	22	on request
03096-07-12211708	single	2	colza yellow RAL 1021	86	25	20	21,2	8	8	22	on request
03096-07-12211710	single	2	colza yellow RAL 1021	86	25	20	21,2	8	10	22	on request
03096-07-12211712	single	2	colza yellow RAL 1021	86	25	20	21,2	8	12	22	on request
03096-07-12211716	single	2	colza yellow RAL 1021	86	25	20	21,2	8	16	22	on request
03096-07-12131704	-	1	colza yellow RAL 1021	76	25	10	21,2	8	4	22	on request
03096-07-12131705	-	1	colza yellow RAL 1021	76	25	10	21,2	8	5	22	on request
03096-07-12131706	-	1	colza yellow RAL 1021	76	25	10	21,2	8	6	22	on request
03096-07-12231708	-	2	colza yellow RAL 1021	86	25	20	21,2	8	8	22	on request
03096-07-12231710	-	2	colza yellow RAL 1021	86	25	20	21,2	8	10	22	on request
03096-07-12231712	-	2	colza yellow RAL 1021	86	25	20	21,2	8	12	22	on request
03096-07-12231716	-	2	colza yellow RAL 1021	86	25	20	21,2	8	16	22	on request
