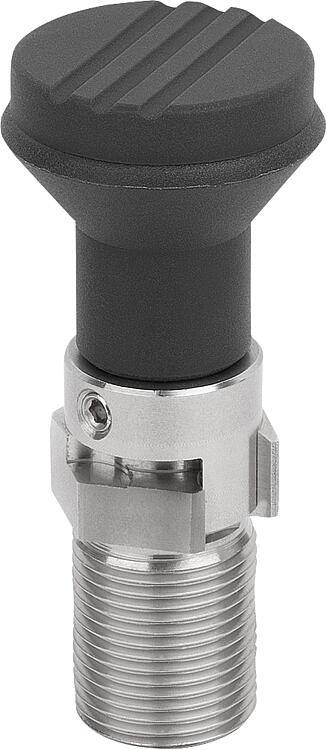

        Actuating elements for remote control, stainless steel, with mushroom grip, Bowden cable systems
        Actuating elements for remote control, stainless steel, with detent function, rotation lock and mushroom grip, Bowden cable systems

Item description/product images

DescriptionProduct description:The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Actuation variants: with detent function, without detent function, with rotation lock, rotary cam.
Grip types: Mushroom grip, T-grip, star grip, clamping lever.Material:

Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:Stainless steel parts bright.
Setscrew electro zinc-plated.
Plastic grip available in various colours.Note for ordering:We recommend using the online shop configurator to create a complete system with ease.Note:When installing the Bowden cables, the following points should be noted:

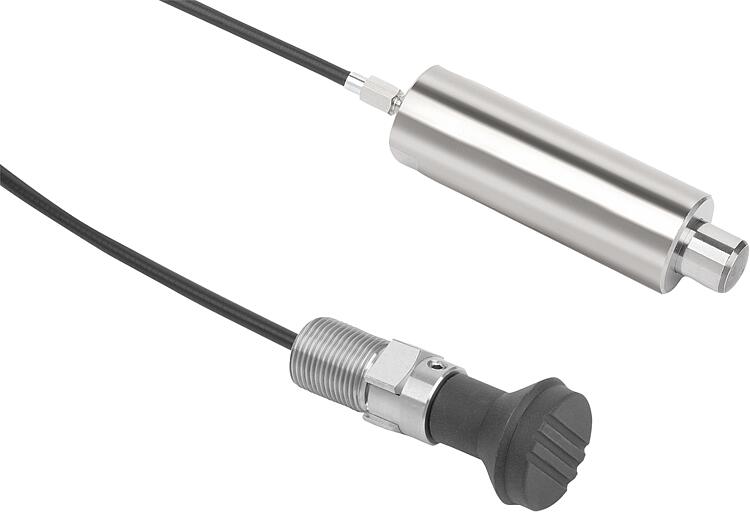

The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Indexing plunger 03096-08.
Indexing plunger 03096-09.
Hex nut 07212.
Mounting bracket 03099.
Bowden cable 03096-14.
Wire cable 03096-15.
Tension sleeve 03096-20.
End sleeve 03096-25.
Setscrew 03096-30.
Bowden cable distributor 03096-50.Supplied withActuating element with plastic grip and optional setscrew.Drawing reference:

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096-07_C Actuating elements for remote control, stainless steel, with detent function, rotation lock and mushroom grip, Bowden cable systems

289 kB

Drawings

Item selection/filter

Order No.	Version 1	Bowden cable connection	Size	Form	Form definition	Component colour	D	D Internal thread	D1	D2	Price
03096-07-1311104	with mushroom grip	single	1	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1311105	with mushroom grip	single	1	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1311106	with mushroom grip	single	1	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1321108	with mushroom grip	single	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1321110	with mushroom grip	single	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1321112	with mushroom grip	single	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1321116	with mushroom grip	single	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1312104	with mushroom grip	duplex	1	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1312105	with mushroom grip	duplex	1	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1312106	with mushroom grip	duplex	1	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1322108	with mushroom grip	duplex	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1322110	with mushroom grip	duplex	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1322112	with mushroom grip	duplex	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1322116	with mushroom grip	duplex	2	C	-	black grey RAL 7021	6	-	M20x1,5	33	on request
03096-07-1313104	with mushroom grip	-	1	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1313105	with mushroom grip	-	1	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1313106	with mushroom grip	-	1	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1323108	with mushroom grip	-	2	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1323110	with mushroom grip	-	2	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1323112	with mushroom grip	-	2	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-1323116	with mushroom grip	-	2	C	-	black grey RAL 7021	-	M6	M20x1,5	33	on request
03096-07-13111104	with mushroom grip	single	1	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13111105	with mushroom grip	single	1	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13111106	with mushroom grip	single	1	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13211108	with mushroom grip	single	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13211110	with mushroom grip	single	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13211112	with mushroom grip	single	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13211116	with mushroom grip	single	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13121104	with mushroom grip	duplex	1	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13121105	with mushroom grip	duplex	1	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13121106	with mushroom grip	duplex	1	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13221108	with mushroom grip	duplex	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13221110	with mushroom grip	duplex	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13221112	with mushroom grip	duplex	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13221116	with mushroom grip	duplex	2	C	-	orange RAL 2004	6	-	M20x1,5	33	on request
03096-07-13131104	with mushroom grip	-	1	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13131105	with mushroom grip	-	1	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13131106	with mushroom grip	-	1	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13231108	with mushroom grip	-	2	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13231110	with mushroom grip	-	2	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13231112	with mushroom grip	-	2	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13231116	with mushroom grip	-	2	C	-	orange RAL 2004	-	M6	M20x1,5	33	on request
03096-07-13111204	with mushroom grip	single	1	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13111205	with mushroom grip	single	1	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13111206	with mushroom grip	single	1	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13211208	with mushroom grip	single	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13211210	with mushroom grip	single	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13211212	with mushroom grip	single	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13211216	with mushroom grip	single	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13121204	with mushroom grip	duplex	1	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13121205	with mushroom grip	duplex	1	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13121206	with mushroom grip	duplex	1	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13221208	with mushroom grip	duplex	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13221210	with mushroom grip	duplex	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13221212	with mushroom grip	duplex	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13221216	with mushroom grip	duplex	2	C	-	signal green RAL 6032	6	-	M20x1,5	33	on request
03096-07-13131204	with mushroom grip	-	1	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13131205	with mushroom grip	-	1	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13131206	with mushroom grip	-	1	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13231208	with mushroom grip	-	2	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13231210	with mushroom grip	-	2	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13231212	with mushroom grip	-	2	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13231216	with mushroom grip	-	2	C	-	signal green RAL 6032	-	M6	M20x1,5	33	on request
03096-07-13111304	with mushroom grip	single	1	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13111305	with mushroom grip	single	1	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13111306	with mushroom grip	single	1	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13211308	with mushroom grip	single	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13211310	with mushroom grip	single	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13211312	with mushroom grip	single	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13211316	with mushroom grip	single	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13121304	with mushroom grip	duplex	1	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13121305	with mushroom grip	duplex	1	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13121306	with mushroom grip	duplex	1	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13221308	with mushroom grip	duplex	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13221310	with mushroom grip	duplex	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13221312	with mushroom grip	duplex	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13221316	with mushroom grip	duplex	2	C	-	traffic blue RAL 5017	6	-	M20x1,5	33	on request
03096-07-13131304	with mushroom grip	-	1	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13131305	with mushroom grip	-	1	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13131306	with mushroom grip	-	1	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13231308	with mushroom grip	-	2	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13231310	with mushroom grip	-	2	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13231312	with mushroom grip	-	2	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13231316	with mushroom grip	-	2	C	-	traffic blue RAL 5017	-	M6	M20x1,5	33	on request
03096-07-13111504	with mushroom grip	single	1	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13111505	with mushroom grip	single	1	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13111506	with mushroom grip	single	1	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13211508	with mushroom grip	single	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13211510	with mushroom grip	single	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13211512	with mushroom grip	single	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13211516	with mushroom grip	single	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13121504	with mushroom grip	duplex	1	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13121505	with mushroom grip	duplex	1	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13121506	with mushroom grip	duplex	1	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13221508	with mushroom grip	duplex	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13221510	with mushroom grip	duplex	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13221512	with mushroom grip	duplex	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13221516	with mushroom grip	duplex	2	C	-	light grey RAL 7035	6	-	M20x1,5	33	on request
03096-07-13131504	with mushroom grip	-	1	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13131505	with mushroom grip	-	1	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13131506	with mushroom grip	-	1	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13231508	with mushroom grip	-	2	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13231510	with mushroom grip	-	2	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13231512	with mushroom grip	-	2	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13231516	with mushroom grip	-	2	C	-	light grey RAL 7035	-	M6	M20x1,5	33	on request
03096-07-13111604	with mushroom grip	single	1	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13111605	with mushroom grip	single	1	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13111606	with mushroom grip	single	1	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13211608	with mushroom grip	single	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13211610	with mushroom grip	single	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13211612	with mushroom grip	single	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13211616	with mushroom grip	single	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13121604	with mushroom grip	duplex	1	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13121605	with mushroom grip	duplex	1	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13121606	with mushroom grip	duplex	1	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13221608	with mushroom grip	duplex	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13221610	with mushroom grip	duplex	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13221612	with mushroom grip	duplex	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13221616	with mushroom grip	duplex	2	C	-	traffic red RAL 3020	6	-	M20x1,5	33	on request
03096-07-13131604	with mushroom grip	-	1	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13131605	with mushroom grip	-	1	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13131606	with mushroom grip	-	1	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13231608	with mushroom grip	-	2	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13231610	with mushroom grip	-	2	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13231612	with mushroom grip	-	2	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13231616	with mushroom grip	-	2	C	-	traffic red RAL 3020	-	M6	M20x1,5	33	on request
03096-07-13111704	with mushroom grip	single	1	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13111705	with mushroom grip	single	1	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13111706	with mushroom grip	single	1	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13211708	with mushroom grip	single	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13211710	with mushroom grip	single	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13211712	with mushroom grip	single	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13211716	with mushroom grip	single	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13121704	with mushroom grip	duplex	1	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13121705	with mushroom grip	duplex	1	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13121706	with mushroom grip	duplex	1	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13221708	with mushroom grip	duplex	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13221710	with mushroom grip	duplex	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13221712	with mushroom grip	duplex	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13221716	with mushroom grip	duplex	2	C	-	colza yellow RAL 1021	6	-	M20x1,5	33	on request
03096-07-13131704	with mushroom grip	-	1	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-13131705	with mushroom grip	-	1	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-13131706	with mushroom grip	-	1	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-13231708	with mushroom grip	-	2	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-13231710	with mushroom grip	-	2	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-13231712	with mushroom grip	-	2	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request
03096-07-13231716	with mushroom grip	-	2	C	-	colza yellow RAL 1021	-	M6	M20x1,5	33	on request

Order No.	Bowden cable connection	Size	Component colour	L	L1	L2	L3	L4	Travel S	SW	Price
03096-07-1311104	single	1	black grey RAL 7021	76	25	10	21,2	8	4	22	on request
03096-07-1311105	single	1	black grey RAL 7021	76	25	10	21,2	8	5	22	on request
03096-07-1311106	single	1	black grey RAL 7021	76	25	10	21,2	8	6	22	on request
03096-07-1321108	single	2	black grey RAL 7021	86	25	20	21,2	8	8	22	on request
03096-07-1321110	single	2	black grey RAL 7021	86	25	20	21,2	8	10	22	on request
03096-07-1321112	single	2	black grey RAL 7021	86	25	20	21,2	8	12	22	on request
03096-07-1321116	single	2	black grey RAL 7021	86	25	20	21,2	8	16	22	on request
03096-07-1312104	duplex	1	black grey RAL 7021	76	25	10	21,2	8	4	22	on request
03096-07-1312105	duplex	1	black grey RAL 7021	76	25	10	21,2	8	5	22	on request
03096-07-1312106	duplex	1	black grey RAL 7021	76	25	10	21,2	8	6	22	on request
03096-07-1322108	duplex	2	black grey RAL 7021	86	25	20	21,2	8	8	22	on request
03096-07-1322110	duplex	2	black grey RAL 7021	86	25	20	21,2	8	10	22	on request
03096-07-1322112	duplex	2	black grey RAL 7021	86	25	20	21,2	8	12	22	on request
03096-07-1322116	duplex	2	black grey RAL 7021	86	25	20	21,2	8	16	22	on request
03096-07-1313104	-	1	black grey RAL 7021	76	25	10	21,2	8	4	22	on request
03096-07-1313105	-	1	black grey RAL 7021	76	25	10	21,2	8	5	22	on request
03096-07-1313106	-	1	black grey RAL 7021	76	25	10	21,2	8	6	22	on request
03096-07-1323108	-	2	black grey RAL 7021	86	25	20	21,2	8	8	22	on request
03096-07-1323110	-	2	black grey RAL 7021	86	25	20	21,2	8	10	22	on request
03096-07-1323112	-	2	black grey RAL 7021	86	25	20	21,2	8	12	22	on request
03096-07-1323116	-	2	black grey RAL 7021	86	25	20	21,2	8	16	22	on request
03096-07-13111104	single	1	orange RAL 2004	76	25	10	21,2	8	4	22	on request
03096-07-13111105	single	1	orange RAL 2004	76	25	10	21,2	8	5	22	on request
03096-07-13111106	single	1	orange RAL 2004	76	25	10	21,2	8	6	22	on request
03096-07-13211108	single	2	orange RAL 2004	86	25	20	21,2	8	8	22	on request
03096-07-13211110	single	2	orange RAL 2004	86	25	20	21,2	8	10	22	on request
03096-07-13211112	single	2	orange RAL 2004	86	25	20	21,2	8	12	22	on request
03096-07-13211116	single	2	orange RAL 2004	86	25	20	21,2	8	16	22	on request
03096-07-13121104	duplex	1	orange RAL 2004	76	25	10	21,2	8	4	22	on request
03096-07-13121105	duplex	1	orange RAL 2004	76	25	10	21,2	8	5	22	on request
03096-07-13121106	duplex	1	orange RAL 2004	76	25	10	21,2	8	6	22	on request
03096-07-13221108	duplex	2	orange RAL 2004	86	25	20	21,2	8	8	22	on request
03096-07-13221110	duplex	2	orange RAL 2004	86	25	20	21,2	8	10	22	on request
03096-07-13221112	duplex	2	orange RAL 2004	86	25	20	21,2	8	12	22	on request
03096-07-13221116	duplex	2	orange RAL 2004	86	25	20	21,2	8	16	22	on request
03096-07-13131104	-	1	orange RAL 2004	76	25	10	21,2	8	4	22	on request
03096-07-13131105	-	1	orange RAL 2004	76	25	10	21,2	8	5	22	on request
03096-07-13131106	-	1	orange RAL 2004	76	25	10	21,2	8	6	22	on request
03096-07-13231108	-	2	orange RAL 2004	86	25	20	21,2	8	8	22	on request
03096-07-13231110	-	2	orange RAL 2004	86	25	20	21,2	8	10	22	on request
03096-07-13231112	-	2	orange RAL 2004	86	25	20	21,2	8	12	22	on request
03096-07-13231116	-	2	orange RAL 2004	86	25	20	21,2	8	16	22	on request
03096-07-13111204	single	1	signal green RAL 6032	76	25	10	21,2	8	4	22	on request
03096-07-13111205	single	1	signal green RAL 6032	76	25	10	21,2	8	5	22	on request
03096-07-13111206	single	1	signal green RAL 6032	76	25	10	21,2	8	6	22	on request
03096-07-13211208	single	2	signal green RAL 6032	86	25	20	21,2	8	8	22	on request
03096-07-13211210	single	2	signal green RAL 6032	86	25	20	21,2	8	10	22	on request
03096-07-13211212	single	2	signal green RAL 6032	86	25	20	21,2	8	12	22	on request
03096-07-13211216	single	2	signal green RAL 6032	86	25	20	21,2	8	16	22	on request
03096-07-13121204	duplex	1	signal green RAL 6032	76	25	10	21,2	8	4	22	on request
03096-07-13121205	duplex	1	signal green RAL 6032	76	25	10	21,2	8	5	22	on request
03096-07-13121206	duplex	1	signal green RAL 6032	76	25	10	21,2	8	6	22	on request
03096-07-13221208	duplex	2	signal green RAL 6032	86	25	20	21,2	8	8	22	on request
03096-07-13221210	duplex	2	signal green RAL 6032	86	25	20	21,2	8	10	22	on request
03096-07-13221212	duplex	2	signal green RAL 6032	86	25	20	21,2	8	12	22	on request
03096-07-13221216	duplex	2	signal green RAL 6032	86	25	20	21,2	8	16	22	on request
03096-07-13131204	-	1	signal green RAL 6032	76	25	10	21,2	8	4	22	on request
03096-07-13131205	-	1	signal green RAL 6032	76	25	10	21,2	8	5	22	on request
03096-07-13131206	-	1	signal green RAL 6032	76	25	10	21,2	8	6	22	on request
03096-07-13231208	-	2	signal green RAL 6032	86	25	20	21,2	8	8	22	on request
03096-07-13231210	-	2	signal green RAL 6032	86	25	20	21,2	8	10	22	on request
03096-07-13231212	-	2	signal green RAL 6032	86	25	20	21,2	8	12	22	on request
03096-07-13231216	-	2	signal green RAL 6032	86	25	20	21,2	8	16	22	on request
03096-07-13111304	single	1	traffic blue RAL 5017	76	25	10	21,2	8	4	22	on request
03096-07-13111305	single	1	traffic blue RAL 5017	76	25	10	21,2	8	5	22	on request
03096-07-13111306	single	1	traffic blue RAL 5017	76	25	10	21,2	8	6	22	on request
03096-07-13211308	single	2	traffic blue RAL 5017	86	25	20	21,2	8	8	22	on request
03096-07-13211310	single	2	traffic blue RAL 5017	86	25	20	21,2	8	10	22	on request
03096-07-13211312	single	2	traffic blue RAL 5017	86	25	20	21,2	8	12	22	on request
03096-07-13211316	single	2	traffic blue RAL 5017	86	25	20	21,2	8	16	22	on request
03096-07-13121304	duplex	1	traffic blue RAL 5017	76	25	10	21,2	8	4	22	on request
03096-07-13121305	duplex	1	traffic blue RAL 5017	76	25	10	21,2	8	5	22	on request
03096-07-13121306	duplex	1	traffic blue RAL 5017	76	25	10	21,2	8	6	22	on request
03096-07-13221308	duplex	2	traffic blue RAL 5017	86	25	20	21,2	8	8	22	on request
03096-07-13221310	duplex	2	traffic blue RAL 5017	86	25	20	21,2	8	10	22	on request
03096-07-13221312	duplex	2	traffic blue RAL 5017	86	25	20	21,2	8	12	22	on request
03096-07-13221316	duplex	2	traffic blue RAL 5017	86	25	20	21,2	8	16	22	on request
03096-07-13131304	-	1	traffic blue RAL 5017	76	25	10	21,2	8	4	22	on request
03096-07-13131305	-	1	traffic blue RAL 5017	76	25	10	21,2	8	5	22	on request
03096-07-13131306	-	1	traffic blue RAL 5017	76	25	10	21,2	8	6	22	on request
03096-07-13231308	-	2	traffic blue RAL 5017	86	25	20	21,2	8	8	22	on request
03096-07-13231310	-	2	traffic blue RAL 5017	86	25	20	21,2	8	10	22	on request
03096-07-13231312	-	2	traffic blue RAL 5017	86	25	20	21,2	8	12	22	on request
03096-07-13231316	-	2	traffic blue RAL 5017	86	25	20	21,2	8	16	22	on request
03096-07-13111504	single	1	light grey RAL 7035	76	25	10	21,2	8	4	22	on request
03096-07-13111505	single	1	light grey RAL 7035	76	25	10	21,2	8	5	22	on request
03096-07-13111506	single	1	light grey RAL 7035	76	25	10	21,2	8	6	22	on request
03096-07-13211508	single	2	light grey RAL 7035	86	25	20	21,2	8	8	22	on request
03096-07-13211510	single	2	light grey RAL 7035	86	25	20	21,2	8	10	22	on request
03096-07-13211512	single	2	light grey RAL 7035	86	25	20	21,2	8	12	22	on request
03096-07-13211516	single	2	light grey RAL 7035	86	25	20	21,2	8	16	22	on request
03096-07-13121504	duplex	1	light grey RAL 7035	76	25	10	21,2	8	4	22	on request
03096-07-13121505	duplex	1	light grey RAL 7035	76	25	10	21,2	8	5	22	on request
03096-07-13121506	duplex	1	light grey RAL 7035	76	25	10	21,2	8	6	22	on request
03096-07-13221508	duplex	2	light grey RAL 7035	86	25	20	21,2	8	8	22	on request
03096-07-13221510	duplex	2	light grey RAL 7035	86	25	20	21,2	8	10	22	on request
03096-07-13221512	duplex	2	light grey RAL 7035	86	25	20	21,2	8	12	22	on request
03096-07-13221516	duplex	2	light grey RAL 7035	86	25	20	21,2	8	16	22	on request
03096-07-13131504	-	1	light grey RAL 7035	76	25	10	21,2	8	4	22	on request
03096-07-13131505	-	1	light grey RAL 7035	76	25	10	21,2	8	5	22	on request
03096-07-13131506	-	1	light grey RAL 7035	76	25	10	21,2	8	6	22	on request
03096-07-13231508	-	2	light grey RAL 7035	86	25	20	21,2	8	8	22	on request
03096-07-13231510	-	2	light grey RAL 7035	86	25	20	21,2	8	10	22	on request
03096-07-13231512	-	2	light grey RAL 7035	86	25	20	21,2	8	12	22	on request
03096-07-13231516	-	2	light grey RAL 7035	86	25	20	21,2	8	16	22	on request
03096-07-13111604	single	1	traffic red RAL 3020	76	25	10	21,2	8	4	22	on request
03096-07-13111605	single	1	traffic red RAL 3020	76	25	10	21,2	8	5	22	on request
03096-07-13111606	single	1	traffic red RAL 3020	76	25	10	21,2	8	6	22	on request
03096-07-13211608	single	2	traffic red RAL 3020	86	25	20	21,2	8	8	22	on request
03096-07-13211610	single	2	traffic red RAL 3020	86	25	20	21,2	8	10	22	on request
03096-07-13211612	single	2	traffic red RAL 3020	86	25	20	21,2	8	12	22	on request
03096-07-13211616	single	2	traffic red RAL 3020	86	25	20	21,2	8	16	22	on request
03096-07-13121604	duplex	1	traffic red RAL 3020	76	25	10	21,2	8	4	22	on request
03096-07-13121605	duplex	1	traffic red RAL 3020	76	25	10	21,2	8	5	22	on request
03096-07-13121606	duplex	1	traffic red RAL 3020	76	25	10	21,2	8	6	22	on request
03096-07-13221608	duplex	2	traffic red RAL 3020	86	25	20	21,2	8	8	22	on request
03096-07-13221610	duplex	2	traffic red RAL 3020	86	25	20	21,2	8	10	22	on request
03096-07-13221612	duplex	2	traffic red RAL 3020	86	25	20	21,2	8	12	22	on request
03096-07-13221616	duplex	2	traffic red RAL 3020	86	25	20	21,2	8	16	22	on request
03096-07-13131604	-	1	traffic red RAL 3020	76	25	10	21,2	8	4	22	on request
03096-07-13131605	-	1	traffic red RAL 3020	76	25	10	21,2	8	5	22	on request
03096-07-13131606	-	1	traffic red RAL 3020	76	25	10	21,2	8	6	22	on request
03096-07-13231608	-	2	traffic red RAL 3020	86	25	20	21,2	8	8	22	on request
03096-07-13231610	-	2	traffic red RAL 3020	86	25	20	21,2	8	10	22	on request
03096-07-13231612	-	2	traffic red RAL 3020	86	25	20	21,2	8	12	22	on request
03096-07-13231616	-	2	traffic red RAL 3020	86	25	20	21,2	8	16	22	on request
03096-07-13111704	single	1	colza yellow RAL 1021	76	25	10	21,2	8	4	22	on request
03096-07-13111705	single	1	colza yellow RAL 1021	76	25	10	21,2	8	5	22	on request
03096-07-13111706	single	1	colza yellow RAL 1021	76	25	10	21,2	8	6	22	on request
03096-07-13211708	single	2	colza yellow RAL 1021	86	25	20	21,2	8	8	22	on request
03096-07-13211710	single	2	colza yellow RAL 1021	86	25	20	21,2	8	10	22	on request
03096-07-13211712	single	2	colza yellow RAL 1021	86	25	20	21,2	8	12	22	on request
03096-07-13211716	single	2	colza yellow RAL 1021	86	25	20	21,2	8	16	22	on request
03096-07-13121704	duplex	1	colza yellow RAL 1021	76	25	10	21,2	8	4	22	on request
03096-07-13121705	duplex	1	colza yellow RAL 1021	76	25	10	21,2	8	5	22	on request
03096-07-13121706	duplex	1	colza yellow RAL 1021	76	25	10	21,2	8	6	22	on request
03096-07-13221708	duplex	2	colza yellow RAL 1021	86	25	20	21,2	8	8	22	on request
03096-07-13221710	duplex	2	colza yellow RAL 1021	86	25	20	21,2	8	10	22	on request
03096-07-13221712	duplex	2	colza yellow RAL 1021	86	25	20	21,2	8	12	22	on request
03096-07-13221716	duplex	2	colza yellow RAL 1021	86	25	20	21,2	8	16	22	on request
03096-07-13131704	-	1	colza yellow RAL 1021	76	25	10	21,2	8	4	22	on request
03096-07-13131705	-	1	colza yellow RAL 1021	76	25	10	21,2	8	5	22	on request
03096-07-13131706	-	1	colza yellow RAL 1021	76	25	10	21,2	8	6	22	on request
03096-07-13231708	-	2	colza yellow RAL 1021	86	25	20	21,2	8	8	22	on request
03096-07-13231710	-	2	colza yellow RAL 1021	86	25	20	21,2	8	10	22	on request
03096-07-13231712	-	2	colza yellow RAL 1021	86	25	20	21,2	8	12	22	on request
03096-07-13231716	-	2	colza yellow RAL 1021	86	25	20	21,2	8	16	22	on request
