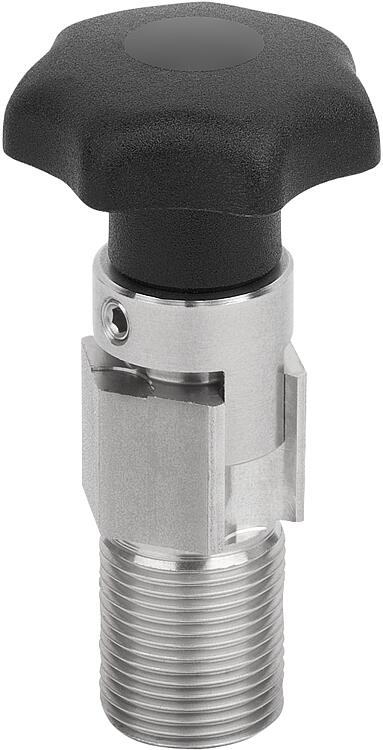

        Actuating elements for remote control, stainless steel, with star grip, Bowden cable systems
        Actuating elements for remote control, stainless steel, with detent function and star grip, Bowden cable systems

Item description/product images

DescriptionProduct description:The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Actuation variants: with detent function, without detent function, with rotation lock, rotary cam.
Grip types: Mushroom grip, T-grip, star grip, clamping lever.Material:

Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:Stainless steel parts bright.
Setscrew galvanised.
Plastic grip available in various colours.Note for ordering:We recommend using the online shop configurator to create a complete system with ease.Note:When installing the Bowden cables, the following points should be noted:
The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Indexing plunger 03096-08.
Indexing plunger 03096-09.
Hex nut 07212.
Mounting bracket 03099.
Bowden cable 03096-14.
Wire cable 03096-15.
Tension sleeve 03096-20.
End sleeve 03096-25.
Setscrew 03096-30.
Bowden cable distributor 03096-50.Supplied withActuating element with plastic grip and optional setscrew.Drawing reference:

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096-07_B Actuating elements for remote control, stainless steel, with detent function and star grip, Bowden cable systems

253 kB

Drawings

Item selection/filter

Order No.	Version 1	Bowden cable connection	Size	Form	Form definition	Component colour	D	D Internal thread	D1	D2	Price
03096-07-1211304	with star grip	single	1	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1211305	with star grip	single	1	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1211306	with star grip	single	1	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1221308	with star grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1221310	with star grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1221312	with star grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1221316	with star grip	single	2	B	with detent	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1213304	with star grip	single with setscrew	1	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1213305	with star grip	single with setscrew	1	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1213306	with star grip	single with setscrew	1	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1223308	with star grip	single with setscrew	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1223310	with star grip	single with setscrew	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1223312	with star grip	single with setscrew	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1223316	with star grip	single with setscrew	2	B	with detent	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-12113504	with star grip	single	1	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12113505	with star grip	single	1	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12113506	with star grip	single	1	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12213508	with star grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12213510	with star grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12213512	with star grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12213516	with star grip	single	2	B	with detent	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-12133504	with star grip	single with setscrew	1	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12133505	with star grip	single with setscrew	1	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12133506	with star grip	single with setscrew	1	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12233508	with star grip	single with setscrew	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12233510	with star grip	single with setscrew	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12233512	with star grip	single with setscrew	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12233516	with star grip	single with setscrew	2	B	with detent	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-12113604	with star grip	single	1	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12113605	with star grip	single	1	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12113606	with star grip	single	1	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12213608	with star grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12213610	with star grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12213612	with star grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12213616	with star grip	single	2	B	with detent	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-12133604	with star grip	single with setscrew	1	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12133605	with star grip	single with setscrew	1	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12133606	with star grip	single with setscrew	1	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12233608	with star grip	single with setscrew	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12233610	with star grip	single with setscrew	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12233612	with star grip	single with setscrew	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12233616	with star grip	single with setscrew	2	B	with detent	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-12113704	with star grip	single	1	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12113705	with star grip	single	1	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12113706	with star grip	single	1	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12213708	with star grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12213710	with star grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12213712	with star grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12213716	with star grip	single	2	B	with detent	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-12133704	with star grip	single with setscrew	1	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-12133705	with star grip	single with setscrew	1	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-12133706	with star grip	single with setscrew	1	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-12233708	with star grip	single with setscrew	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-12233710	with star grip	single with setscrew	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-12233712	with star grip	single with setscrew	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-12233716	with star grip	single with setscrew	2	B	with detent	colza yellow RAL 1021	-	M6	M20x1,5	40	on request

Order No.	Bowden cable connection	Size	Component colour	L	L1	L2	L3	L4	Travel S	SW	Price
03096-07-1211304	single	1	black grey RAL 7021	68	25	10	21,2	8	4	22	on request
03096-07-1211305	single	1	black grey RAL 7021	68	25	10	21,2	8	5	22	on request
03096-07-1211306	single	1	black grey RAL 7021	68	25	10	21,2	8	6	22	on request
03096-07-1221308	single	2	black grey RAL 7021	78	25	20	21,2	8	8	22	on request
03096-07-1221310	single	2	black grey RAL 7021	78	25	20	21,2	8	10	22	on request
03096-07-1221312	single	2	black grey RAL 7021	78	25	20	21,2	8	12	22	on request
03096-07-1221316	single	2	black grey RAL 7021	78	25	20	21,2	8	16	22	on request
03096-07-1213304	single with setscrew	1	black grey RAL 7021	68	25	10	21,2	8	4	22	on request
03096-07-1213305	single with setscrew	1	black grey RAL 7021	68	25	10	21,2	8	5	22	on request
03096-07-1213306	single with setscrew	1	black grey RAL 7021	68	25	10	21,2	8	6	22	on request
03096-07-1223308	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	8	22	on request
03096-07-1223310	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	10	22	on request
03096-07-1223312	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	12	22	on request
03096-07-1223316	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	16	22	on request
03096-07-12113504	single	1	light grey RAL 7035	68	25	10	21,2	8	4	22	on request
03096-07-12113505	single	1	light grey RAL 7035	68	25	10	21,2	8	5	22	on request
03096-07-12113506	single	1	light grey RAL 7035	68	25	10	21,2	8	6	22	on request
03096-07-12213508	single	2	light grey RAL 7035	78	25	20	21,2	8	8	22	on request
03096-07-12213510	single	2	light grey RAL 7035	78	25	20	21,2	8	10	22	on request
03096-07-12213512	single	2	light grey RAL 7035	78	25	20	21,2	8	12	22	on request
03096-07-12213516	single	2	light grey RAL 7035	78	25	20	21,2	8	16	22	on request
03096-07-12133504	single with setscrew	1	light grey RAL 7035	68	25	10	21,2	8	4	22	on request
03096-07-12133505	single with setscrew	1	light grey RAL 7035	68	25	10	21,2	8	5	22	on request
03096-07-12133506	single with setscrew	1	light grey RAL 7035	68	25	10	21,2	8	6	22	on request
03096-07-12233508	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	8	22	on request
03096-07-12233510	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	10	22	on request
03096-07-12233512	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	12	22	on request
03096-07-12233516	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	16	22	on request
03096-07-12113604	single	1	traffic red RAL 3020	68	25	10	21,2	8	4	22	on request
03096-07-12113605	single	1	traffic red RAL 3020	68	25	10	21,2	8	5	22	on request
03096-07-12113606	single	1	traffic red RAL 3020	68	25	10	21,2	8	6	22	on request
03096-07-12213608	single	2	traffic red RAL 3020	78	25	20	21,2	8	8	22	on request
03096-07-12213610	single	2	traffic red RAL 3020	78	25	20	21,2	8	10	22	on request
03096-07-12213612	single	2	traffic red RAL 3020	78	25	20	21,2	8	12	22	on request
03096-07-12213616	single	2	traffic red RAL 3020	78	25	20	21,2	8	16	22	on request
03096-07-12133604	single with setscrew	1	traffic red RAL 3020	68	25	10	21,2	8	4	22	on request
03096-07-12133605	single with setscrew	1	traffic red RAL 3020	68	25	10	21,2	8	5	22	on request
03096-07-12133606	single with setscrew	1	traffic red RAL 3020	68	25	10	21,2	8	6	22	on request
03096-07-12233608	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	8	22	on request
03096-07-12233610	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	10	22	on request
03096-07-12233612	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	12	22	on request
03096-07-12233616	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	16	22	on request
03096-07-12113704	single	1	colza yellow RAL 1021	68	25	10	21,2	8	4	22	on request
03096-07-12113705	single	1	colza yellow RAL 1021	68	25	10	21,2	8	5	22	on request
03096-07-12113706	single	1	colza yellow RAL 1021	68	25	10	21,2	8	6	22	on request
03096-07-12213708	single	2	colza yellow RAL 1021	78	25	20	21,2	8	8	22	on request
03096-07-12213710	single	2	colza yellow RAL 1021	78	25	20	21,2	8	10	22	on request
03096-07-12213712	single	2	colza yellow RAL 1021	78	25	20	21,2	8	12	22	on request
03096-07-12213716	single	2	colza yellow RAL 1021	78	25	20	21,2	8	16	22	on request
03096-07-12133704	single with setscrew	1	colza yellow RAL 1021	68	25	10	21,2	8	4	22	on request
03096-07-12133705	single with setscrew	1	colza yellow RAL 1021	68	25	10	21,2	8	5	22	on request
03096-07-12133706	single with setscrew	1	colza yellow RAL 1021	68	25	10	21,2	8	6	22	on request
03096-07-12233708	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	8	22	on request
03096-07-12233710	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	10	22	on request
03096-07-12233712	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	12	22	on request
03096-07-12233716	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	16	22	on request
