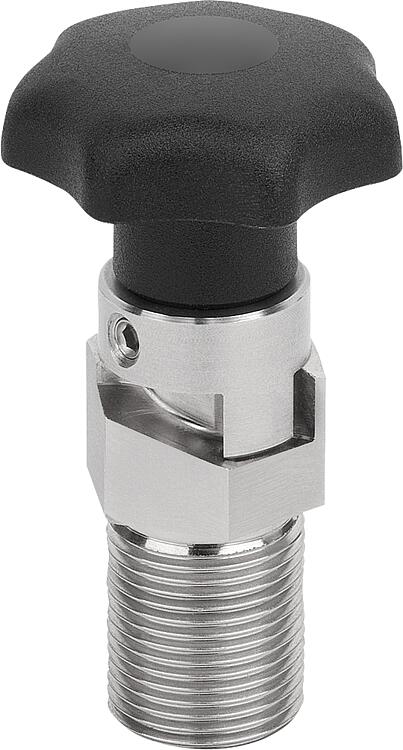

        Actuating elements for remote control, stainless steel, with star grip, Bowden cable systems
        Actuating elements for remote control, stainless steel, with rotation cam and star grip, Bowden cable systems

Item description/product images

DescriptionProduct description:The operating elements for manual operation of the Bowden cable systems were specially designed to match the system-compatible indexing plungers. The combination of indexing plunger and actuating element forms a complete system which can be used for many types of application. Differing grip geometries enable optimal handling for the respective application.

Actuation variants: with detent function, without detent function, with rotation lock, rotary cam.
Grip types: Mushroom grip, T-grip, star grip, clamping lever.Material:

Actuating element 1.4305.
Grip thermoplastic.
Setscrew brass.

Version:Stainless steel parts bright.
Setscrew galvanised.
Plastic grip available in various colours.Note for ordering:We recommend using the online shop configurator to create a complete system with ease.Note:When installing the Bowden cables, the following points should be noted:
The length of the free end of the cable can change due to the layout angle, bending radius and load factors. So, after laying the Bowden cable, the length of the counter-bearing (casing) must be adjusted using the adjusting screw supplied. The adjusting screw is also used to set the pretension in the Bowden cable system.
When laying the cable, particular care must be taken to ensure that the bending radius is not below the minimum value, which in this case is R = 65 mm. A radius which is too narrow can lead to increased wear and higher friction.
Also avoid letting the bending radius briefly go below the minimum value when installing, as this can cause damage to the casing. Also, the casing is designed only to support pressure forces. If pulled too sharply, the inner coil will be stretched and permanently damaged.On request:Special versions.Accessory:Indexing plunger 03096-08.
Indexing plunger 03096-09.
Hex nut 07212.
Mounting bracket 03099.
Bowden cable 03096-14.
Wire cable 03096-15.
Tension sleeve 03096-20.
End sleeve 03096-25.
Setscrew 03096-30.
Bowden cable distributor 03096-50.Supplied withActuating element with plastic grip and optional setscrew.Drawing reference:

1) Single Bowden cable connection
2) Double Bowden cable connection
3) Single Bowden cable connection with setscrew

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03096-07_D Actuating elements for remote control, stainless steel, with rotation cam and star grip, Bowden cable systems

276 kB

Drawings

Item selection/filter

Order No.	Version 1	Bowden cable connection	Size	Form	Form definition	Component colour	D	D Internal thread	D1	D2	Price
03096-07-1411304	with star grip	single	1	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1411305	with star grip	single	1	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1411306	with star grip	single	1	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1421308	with star grip	single	2	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1421310	with star grip	single	2	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1421312	with star grip	single	2	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1431316	with star grip	single	3	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1412304	with star grip	duplex	1	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1412305	with star grip	duplex	1	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1412306	with star grip	duplex	1	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1422308	with star grip	duplex	2	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1422310	with star grip	duplex	2	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1422312	with star grip	duplex	2	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1432316	with star grip	duplex	3	D	Rotation cam	black grey RAL 7021	6	-	M20x1,5	40	on request
03096-07-1413304	with star grip	single with setscrew	1	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1413305	with star grip	single with setscrew	1	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1413306	with star grip	single with setscrew	1	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1423308	with star grip	single with setscrew	2	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1423310	with star grip	single with setscrew	2	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1423312	with star grip	single with setscrew	2	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-1433316	with star grip	single with setscrew	3	D	Rotation cam	black grey RAL 7021	-	M6	M20x1,5	40	on request
03096-07-14113504	with star grip	single	1	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14113505	with star grip	single	1	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14113506	with star grip	single	1	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14213508	with star grip	single	2	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14213510	with star grip	single	2	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14213512	with star grip	single	2	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14313516	with star grip	single	3	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14123504	with star grip	duplex	1	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14123505	with star grip	duplex	1	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14123506	with star grip	duplex	1	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14223508	with star grip	duplex	2	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14223510	with star grip	duplex	2	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14223512	with star grip	duplex	2	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14323516	with star grip	duplex	3	D	Rotation cam	light grey RAL 7035	6	-	M20x1,5	40	on request
03096-07-14133504	with star grip	single with setscrew	1	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14133505	with star grip	single with setscrew	1	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14133506	with star grip	single with setscrew	1	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14233508	with star grip	single with setscrew	2	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14233510	with star grip	single with setscrew	2	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14233512	with star grip	single with setscrew	2	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14333516	with star grip	single with setscrew	3	D	Rotation cam	light grey RAL 7035	-	M6	M20x1,5	40	on request
03096-07-14113604	with star grip	single	1	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14113605	with star grip	single	1	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14113606	with star grip	single	1	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14213608	with star grip	single	2	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14213610	with star grip	single	2	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14213612	with star grip	single	2	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14313616	with star grip	single	3	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14123604	with star grip	duplex	1	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14123605	with star grip	duplex	1	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14123606	with star grip	duplex	1	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14223608	with star grip	duplex	2	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14223610	with star grip	duplex	2	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14223612	with star grip	duplex	2	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14323616	with star grip	duplex	3	D	Rotation cam	traffic red RAL 3020	6	-	M20x1,5	40	on request
03096-07-14133604	with star grip	single with setscrew	1	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14133605	with star grip	single with setscrew	1	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14133606	with star grip	single with setscrew	1	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14233608	with star grip	single with setscrew	2	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14233610	with star grip	single with setscrew	2	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14233612	with star grip	single with setscrew	2	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14333616	with star grip	single with setscrew	3	D	Rotation cam	traffic red RAL 3020	-	M6	M20x1,5	40	on request
03096-07-14113704	with star grip	single	1	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14113705	with star grip	single	1	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14113706	with star grip	single	1	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14213708	with star grip	single	2	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14213710	with star grip	single	2	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14213712	with star grip	single	2	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14313716	with star grip	single	3	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14123704	with star grip	duplex	1	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14123705	with star grip	duplex	1	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14123706	with star grip	duplex	1	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14223708	with star grip	duplex	2	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14223710	with star grip	duplex	2	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14223712	with star grip	duplex	2	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14323716	with star grip	duplex	3	D	Rotation cam	colza yellow RAL 1021	6	-	M20x1,5	40	on request
03096-07-14133704	with star grip	single with setscrew	1	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-14133705	with star grip	single with setscrew	1	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-14133706	with star grip	single with setscrew	1	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-14233708	with star grip	single with setscrew	2	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-14233710	with star grip	single with setscrew	2	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-14233712	with star grip	single with setscrew	2	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request
03096-07-14333716	with star grip	single with setscrew	3	D	Rotation cam	colza yellow RAL 1021	-	M6	M20x1,5	40	on request

Order No.	Bowden cable connection	Size	Component colour	L	L1	L2	L3	L4	Travel S	SW	Price
03096-07-1411304	single	1	black grey RAL 7021	73	25	15	21,2	8	4	22	on request
03096-07-1411305	single	1	black grey RAL 7021	73	25	15	21,2	8	5	22	on request
03096-07-1411306	single	1	black grey RAL 7021	73	25	15	21,2	8	6	22	on request
03096-07-1421308	single	2	black grey RAL 7021	78	25	20	21,2	8	8	22	on request
03096-07-1421310	single	2	black grey RAL 7021	78	25	20	21,2	8	10	22	on request
03096-07-1421312	single	2	black grey RAL 7021	78	25	20	21,2	8	12	22	on request
03096-07-1431316	single	3	black grey RAL 7021	83	25	25	21,2	8	16	22	on request
03096-07-1412304	duplex	1	black grey RAL 7021	73	25	15	21,2	8	4	22	on request
03096-07-1412305	duplex	1	black grey RAL 7021	73	25	15	21,2	8	5	22	on request
03096-07-1412306	duplex	1	black grey RAL 7021	73	25	15	21,2	8	6	22	on request
03096-07-1422308	duplex	2	black grey RAL 7021	78	25	20	21,2	8	8	22	on request
03096-07-1422310	duplex	2	black grey RAL 7021	78	25	20	21,2	8	10	22	on request
03096-07-1422312	duplex	2	black grey RAL 7021	78	25	20	21,2	8	12	22	on request
03096-07-1432316	duplex	3	black grey RAL 7021	83	25	25	21,2	8	16	22	on request
03096-07-1413304	single with setscrew	1	black grey RAL 7021	73	25	15	21,2	8	4	22	on request
03096-07-1413305	single with setscrew	1	black grey RAL 7021	73	25	15	21,2	8	5	22	on request
03096-07-1413306	single with setscrew	1	black grey RAL 7021	73	25	15	21,2	8	6	22	on request
03096-07-1423308	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	8	22	on request
03096-07-1423310	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	10	22	on request
03096-07-1423312	single with setscrew	2	black grey RAL 7021	78	25	20	21,2	8	12	22	on request
03096-07-1433316	single with setscrew	3	black grey RAL 7021	83	25	25	21,2	8	16	22	on request
03096-07-14113504	single	1	light grey RAL 7035	73	25	15	21,2	8	4	22	on request
03096-07-14113505	single	1	light grey RAL 7035	73	25	15	21,2	8	5	22	on request
03096-07-14113506	single	1	light grey RAL 7035	73	25	15	21,2	8	6	22	on request
03096-07-14213508	single	2	light grey RAL 7035	78	25	20	21,2	8	8	22	on request
03096-07-14213510	single	2	light grey RAL 7035	78	25	20	21,2	8	10	22	on request
03096-07-14213512	single	2	light grey RAL 7035	78	25	20	21,2	8	12	22	on request
03096-07-14313516	single	3	light grey RAL 7035	83	25	25	21,2	8	16	22	on request
03096-07-14123504	duplex	1	light grey RAL 7035	73	25	15	21,2	8	4	22	on request
03096-07-14123505	duplex	1	light grey RAL 7035	73	25	15	21,2	8	5	22	on request
03096-07-14123506	duplex	1	light grey RAL 7035	73	25	15	21,2	8	6	22	on request
03096-07-14223508	duplex	2	light grey RAL 7035	78	25	20	21,2	8	8	22	on request
03096-07-14223510	duplex	2	light grey RAL 7035	78	25	20	21,2	8	10	22	on request
03096-07-14223512	duplex	2	light grey RAL 7035	78	25	20	21,2	8	12	22	on request
03096-07-14323516	duplex	3	light grey RAL 7035	83	25	25	21,2	8	16	22	on request
03096-07-14133504	single with setscrew	1	light grey RAL 7035	73	25	15	21,2	8	4	22	on request
03096-07-14133505	single with setscrew	1	light grey RAL 7035	73	25	15	21,2	8	5	22	on request
03096-07-14133506	single with setscrew	1	light grey RAL 7035	73	25	15	21,2	8	6	22	on request
03096-07-14233508	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	8	22	on request
03096-07-14233510	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	10	22	on request
03096-07-14233512	single with setscrew	2	light grey RAL 7035	78	25	20	21,2	8	12	22	on request
03096-07-14333516	single with setscrew	3	light grey RAL 7035	83	25	25	21,2	8	16	22	on request
03096-07-14113604	single	1	traffic red RAL 3020	73	25	15	21,2	8	4	22	on request
03096-07-14113605	single	1	traffic red RAL 3020	73	25	15	21,2	8	5	22	on request
03096-07-14113606	single	1	traffic red RAL 3020	73	25	15	21,2	8	6	22	on request
03096-07-14213608	single	2	traffic red RAL 3020	78	25	20	21,2	8	8	22	on request
03096-07-14213610	single	2	traffic red RAL 3020	78	25	20	21,2	8	10	22	on request
03096-07-14213612	single	2	traffic red RAL 3020	78	25	20	21,2	8	12	22	on request
03096-07-14313616	single	3	traffic red RAL 3020	83	25	25	21,2	8	16	22	on request
03096-07-14123604	duplex	1	traffic red RAL 3020	73	25	15	21,2	8	4	22	on request
03096-07-14123605	duplex	1	traffic red RAL 3020	73	25	15	21,2	8	5	22	on request
03096-07-14123606	duplex	1	traffic red RAL 3020	73	25	15	21,2	8	6	22	on request
03096-07-14223608	duplex	2	traffic red RAL 3020	78	25	20	21,2	8	8	22	on request
03096-07-14223610	duplex	2	traffic red RAL 3020	78	25	20	21,2	8	10	22	on request
03096-07-14223612	duplex	2	traffic red RAL 3020	78	25	20	21,2	8	12	22	on request
03096-07-14323616	duplex	3	traffic red RAL 3020	83	25	25	21,2	8	16	22	on request
03096-07-14133604	single with setscrew	1	traffic red RAL 3020	73	25	15	21,2	8	4	22	on request
03096-07-14133605	single with setscrew	1	traffic red RAL 3020	73	25	15	21,2	8	5	22	on request
03096-07-14133606	single with setscrew	1	traffic red RAL 3020	73	25	15	21,2	8	6	22	on request
03096-07-14233608	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	8	22	on request
03096-07-14233610	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	10	22	on request
03096-07-14233612	single with setscrew	2	traffic red RAL 3020	78	25	20	21,2	8	12	22	on request
03096-07-14333616	single with setscrew	3	traffic red RAL 3020	83	25	25	21,2	8	16	22	on request
03096-07-14113704	single	1	colza yellow RAL 1021	73	25	15	21,2	8	4	22	on request
03096-07-14113705	single	1	colza yellow RAL 1021	73	25	15	21,2	8	5	22	on request
03096-07-14113706	single	1	colza yellow RAL 1021	73	25	15	21,2	8	6	22	on request
03096-07-14213708	single	2	colza yellow RAL 1021	78	25	20	21,2	8	8	22	on request
03096-07-14213710	single	2	colza yellow RAL 1021	78	25	20	21,2	8	10	22	on request
03096-07-14213712	single	2	colza yellow RAL 1021	78	25	20	21,2	8	12	22	on request
03096-07-14313716	single	3	colza yellow RAL 1021	83	25	25	21,2	8	16	22	on request
03096-07-14123704	duplex	1	colza yellow RAL 1021	73	25	15	21,2	8	4	22	on request
03096-07-14123705	duplex	1	colza yellow RAL 1021	73	25	15	21,2	8	5	22	on request
03096-07-14123706	duplex	1	colza yellow RAL 1021	73	25	15	21,2	8	6	22	on request
03096-07-14223708	duplex	2	colza yellow RAL 1021	78	25	20	21,2	8	8	22	on request
03096-07-14223710	duplex	2	colza yellow RAL 1021	78	25	20	21,2	8	10	22	on request
03096-07-14223712	duplex	2	colza yellow RAL 1021	78	25	20	21,2	8	12	22	on request
03096-07-14323716	duplex	3	colza yellow RAL 1021	83	25	25	21,2	8	16	22	on request
03096-07-14133704	single with setscrew	1	colza yellow RAL 1021	73	25	15	21,2	8	4	22	on request
03096-07-14133705	single with setscrew	1	colza yellow RAL 1021	73	25	15	21,2	8	5	22	on request
03096-07-14133706	single with setscrew	1	colza yellow RAL 1021	73	25	15	21,2	8	6	22	on request
03096-07-14233708	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	8	22	on request
03096-07-14233710	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	10	22	on request
03096-07-14233712	single with setscrew	2	colza yellow RAL 1021	78	25	20	21,2	8	12	22	on request
03096-07-14333716	single with setscrew	3	colza yellow RAL 1021	83	25	25	21,2	8	16	22	on request
