        Cam-action indexing plungers, stainless steel with thread lock

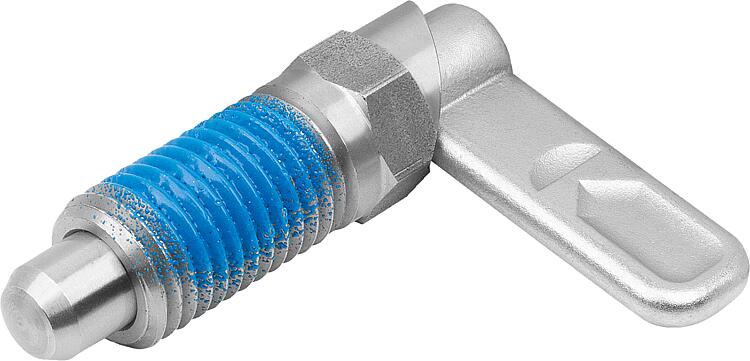

        Cam-action indexing plungers, stainless steel, with thread lock, without grip cap or nut, Form AP

Item description/product images

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.4308
Threaded sleeve and indexing pin 1.4305
Spring 1.4310
Grip cap thermoplastic PA.
Thread lock blue polyamideVersion:Threaded sleeve, spring and grip bright.
Indexing pin ground and bright.
Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.Accessory:Mounting bracket 03099.
Positioning bushes 03099-50.Drawing reference:

Form AP: without grip cap or nut.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-13_AP Cam-action indexing plungers, stainless steel, with thread lock, without grip cap or nut, Form AP

178 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-13-1940410	AP	without plastic cap, without locknut	4	M10	10	38,5	25	15	9	3	6	10	1	8	14	on request
03099-13-1940510	AP	without plastic cap, without locknut	5	M10	10	38,5	25	15	9	3	6	10	1,3	8	14	on request
03099-13-1940610	AP	without plastic cap, without locknut	6	M10	10	38,5	25	15	9	3	6	10	1,8	8	14	on request
03099-13-19404101	AP	without plastic cap, without locknut	4	M10x1	10	38,5	25	15	9	3	6	10	1	8	14	on request
03099-13-19405101	AP	without plastic cap, without locknut	5	M10x1	10	38,5	25	15	9	3	6	10	1,3	8	14	on request
03099-13-19406101	AP	without plastic cap, without locknut	6	M10x1	10	38,5	25	15	9	3	6	10	1,8	8	14	on request
03099-13-1940512	AP	without plastic cap, without locknut	5	M12	12	47,4	30	19	10,8	3,6	8	12	1,3	5	15	on request
03099-13-1940612	AP	without plastic cap, without locknut	6	M12	12	47,4	30	19	10,8	3,6	8	12	1,8	5	15	on request
03099-13-1940812	AP	without plastic cap, without locknut	8	M12	12	47,4	30	19	10,8	3,6	8	12	2,3	5	15	on request
03099-13-19405121	AP	without plastic cap, without locknut	5	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	1,3	5	15	on request
03099-13-19406121	AP	without plastic cap, without locknut	6	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	1,8	5	15	on request
03099-13-19408121	AP	without plastic cap, without locknut	8	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	2,3	5	15	on request
03099-13-1940616	AP	without plastic cap, without locknut	6	M16	16	61,2	40	26	14,4	4,8	10	16	1,8	15	35	on request
03099-13-1940816	AP	without plastic cap, without locknut	8	M16	16	61,2	40	26	14,4	4,8	10	16	2,3	15	35	on request
03099-13-1941016	AP	without plastic cap, without locknut	10	M16	16	61,2	40	26	14,4	4,8	10	16	2,8	15	35	on request
03099-13-19406161	AP	without plastic cap, without locknut	6	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	1,8	15	35	on request
03099-13-19408161	AP	without plastic cap, without locknut	8	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	2,3	15	35	on request
03099-13-19410161	AP	without plastic cap, without locknut	10	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	2,8	15	35	on request
03099-13-1940820	AP	without plastic cap, without locknut	8	M20	20	71	50	30	18	6	12	20	2,3	20	60	on request
03099-13-1941020	AP	without plastic cap, without locknut	10	M20	20	71	50	30	18	6	12	20	2,8	20	60	on request
03099-13-1941220	AP	without plastic cap, without locknut	12	M20	20	71	50	30	18	6	12	20	3	20	60	on request
03099-13-19408201	AP	without plastic cap, without locknut	8	M20x1,5	20	71	50	30	18	6	12	20	2,3	20	60	on request
03099-13-19410201	AP	without plastic cap, without locknut	10	M20x1,5	20	71	50	30	18	6	12	20	2,8	20	60	on request
03099-13-19412201	AP	without plastic cap, without locknut	12	M20x1,5	20	71	50	30	18	6	12	20	3	20	60	on request
