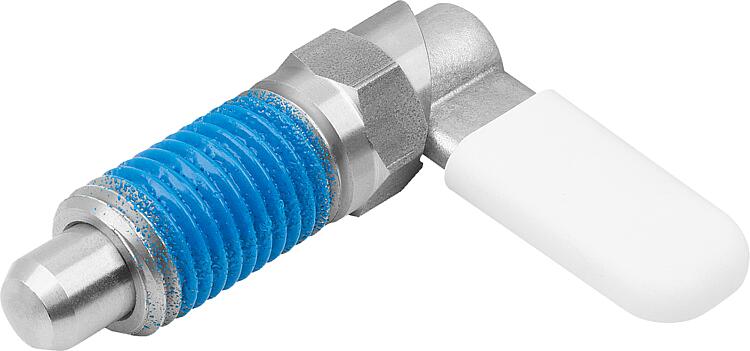

        Cam-action indexing plungers, stainless steel with thread lock
        Cam-action indexing plungers, stainless steel, with thread lock, with cap, without nut, Form CP

Item description/product images

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.4308
Threaded sleeve and indexing pin 1.4305
Spring 1.4310
Grip cap thermoplastic PA.
Thread lock blue polyamideVersion:Threaded sleeve, spring and grip bright.
Indexing pin ground and bright.
Grip cap in various colours:
- black grey RAL 7021.
- pure orange RAL 2004.
- colza yellow RAL 1021.
- traffic red RAL 3020.
- signal green RAL 6032.
- traffic blue RAL 5017.
- light grey RAL 7035.
Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.Accessory:Mounting bracket 03099.
Positioning bushes 03099-50.Drawing reference:

Form CP: with grip cap, without nut.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-13_CP Cam-action indexing plungers, stainless steel, with thread lock, with cap, without nut, Form CP

232 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	Component colour	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-13-1960410	CP	with plastic cap, without locknut	black grey RAL 7021	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-1960510	CP	with plastic cap, without locknut	black grey RAL 7021	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-1960610	CP	with plastic cap, without locknut	black grey RAL 7021	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-19604101	CP	with plastic cap, without locknut	black grey RAL 7021	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-19605101	CP	with plastic cap, without locknut	black grey RAL 7021	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-19606101	CP	with plastic cap, without locknut	black grey RAL 7021	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-1960512	CP	with plastic cap, without locknut	black grey RAL 7021	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-1960612	CP	with plastic cap, without locknut	black grey RAL 7021	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-1960812	CP	with plastic cap, without locknut	black grey RAL 7021	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-19605121	CP	with plastic cap, without locknut	black grey RAL 7021	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-19606121	CP	with plastic cap, without locknut	black grey RAL 7021	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-19608121	CP	with plastic cap, without locknut	black grey RAL 7021	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-1960616	CP	with plastic cap, without locknut	black grey RAL 7021	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-1960816	CP	with plastic cap, without locknut	black grey RAL 7021	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-1961016	CP	with plastic cap, without locknut	black grey RAL 7021	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-19606161	CP	with plastic cap, without locknut	black grey RAL 7021	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-19608161	CP	with plastic cap, without locknut	black grey RAL 7021	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-19610161	CP	with plastic cap, without locknut	black grey RAL 7021	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-1960820	CP	with plastic cap, without locknut	black grey RAL 7021	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-1961020	CP	with plastic cap, without locknut	black grey RAL 7021	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-1961220	CP	with plastic cap, without locknut	black grey RAL 7021	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-19608201	CP	with plastic cap, without locknut	black grey RAL 7021	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-19610201	CP	with plastic cap, without locknut	black grey RAL 7021	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-19612201	CP	with plastic cap, without locknut	black grey RAL 7021	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-19604102	CP	with plastic cap, without locknut	orange RAL 2004	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-19605102	CP	with plastic cap, without locknut	orange RAL 2004	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-19606102	CP	with plastic cap, without locknut	orange RAL 2004	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-196041012	CP	with plastic cap, without locknut	orange RAL 2004	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-196051012	CP	with plastic cap, without locknut	orange RAL 2004	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-196061012	CP	with plastic cap, without locknut	orange RAL 2004	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-19605122	CP	with plastic cap, without locknut	orange RAL 2004	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-19606122	CP	with plastic cap, without locknut	orange RAL 2004	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-19608122	CP	with plastic cap, without locknut	orange RAL 2004	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-196051212	CP	with plastic cap, without locknut	orange RAL 2004	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-196061212	CP	with plastic cap, without locknut	orange RAL 2004	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-196081212	CP	with plastic cap, without locknut	orange RAL 2004	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-19606162	CP	with plastic cap, without locknut	orange RAL 2004	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-19608162	CP	with plastic cap, without locknut	orange RAL 2004	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-19610162	CP	with plastic cap, without locknut	orange RAL 2004	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-196061612	CP	with plastic cap, without locknut	orange RAL 2004	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-196081612	CP	with plastic cap, without locknut	orange RAL 2004	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-196101612	CP	with plastic cap, without locknut	orange RAL 2004	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-19608202	CP	with plastic cap, without locknut	orange RAL 2004	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-19610202	CP	with plastic cap, without locknut	orange RAL 2004	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-19612202	CP	with plastic cap, without locknut	orange RAL 2004	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-196082012	CP	with plastic cap, without locknut	orange RAL 2004	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-196102012	CP	with plastic cap, without locknut	orange RAL 2004	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-196122012	CP	with plastic cap, without locknut	orange RAL 2004	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-196041016	CP	with plastic cap, without locknut	colza yellow RAL 1021	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-196051016	CP	with plastic cap, without locknut	colza yellow RAL 1021	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-196061016	CP	with plastic cap, without locknut	colza yellow RAL 1021	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-1960410116	CP	with plastic cap, without locknut	colza yellow RAL 1021	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-1960510116	CP	with plastic cap, without locknut	colza yellow RAL 1021	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-1960610116	CP	with plastic cap, without locknut	colza yellow RAL 1021	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-196051216	CP	with plastic cap, without locknut	colza yellow RAL 1021	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-196061216	CP	with plastic cap, without locknut	colza yellow RAL 1021	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-196081216	CP	with plastic cap, without locknut	colza yellow RAL 1021	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-1960512116	CP	with plastic cap, without locknut	colza yellow RAL 1021	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-1960612116	CP	with plastic cap, without locknut	colza yellow RAL 1021	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-1960812116	CP	with plastic cap, without locknut	colza yellow RAL 1021	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-196061616	CP	with plastic cap, without locknut	colza yellow RAL 1021	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-196081616	CP	with plastic cap, without locknut	colza yellow RAL 1021	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-196101616	CP	with plastic cap, without locknut	colza yellow RAL 1021	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-1960616116	CP	with plastic cap, without locknut	colza yellow RAL 1021	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-1960816116	CP	with plastic cap, without locknut	colza yellow RAL 1021	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-1961016116	CP	with plastic cap, without locknut	colza yellow RAL 1021	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-196082016	CP	with plastic cap, without locknut	colza yellow RAL 1021	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-196102016	CP	with plastic cap, without locknut	colza yellow RAL 1021	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-196122016	CP	with plastic cap, without locknut	colza yellow RAL 1021	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-1960820116	CP	with plastic cap, without locknut	colza yellow RAL 1021	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-1961020116	CP	with plastic cap, without locknut	colza yellow RAL 1021	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-1961220116	CP	with plastic cap, without locknut	colza yellow RAL 1021	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-196041084	CP	with plastic cap, without locknut	traffic red RAL 3020	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-196051084	CP	with plastic cap, without locknut	traffic red RAL 3020	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-196061084	CP	with plastic cap, without locknut	traffic red RAL 3020	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-1960410184	CP	with plastic cap, without locknut	traffic red RAL 3020	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-1960510184	CP	with plastic cap, without locknut	traffic red RAL 3020	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-1960610184	CP	with plastic cap, without locknut	traffic red RAL 3020	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-196051284	CP	with plastic cap, without locknut	traffic red RAL 3020	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-196061284	CP	with plastic cap, without locknut	traffic red RAL 3020	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-196081284	CP	with plastic cap, without locknut	traffic red RAL 3020	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-1960512184	CP	with plastic cap, without locknut	traffic red RAL 3020	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-1960612184	CP	with plastic cap, without locknut	traffic red RAL 3020	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-1960812184	CP	with plastic cap, without locknut	traffic red RAL 3020	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-196061684	CP	with plastic cap, without locknut	traffic red RAL 3020	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-196081684	CP	with plastic cap, without locknut	traffic red RAL 3020	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-196101684	CP	with plastic cap, without locknut	traffic red RAL 3020	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-1960616184	CP	with plastic cap, without locknut	traffic red RAL 3020	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-1960816184	CP	with plastic cap, without locknut	traffic red RAL 3020	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-1961016184	CP	with plastic cap, without locknut	traffic red RAL 3020	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-196082084	CP	with plastic cap, without locknut	traffic red RAL 3020	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-196102084	CP	with plastic cap, without locknut	traffic red RAL 3020	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-196122084	CP	with plastic cap, without locknut	traffic red RAL 3020	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-1960820184	CP	with plastic cap, without locknut	traffic red RAL 3020	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-1961020184	CP	with plastic cap, without locknut	traffic red RAL 3020	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-1961220184	CP	with plastic cap, without locknut	traffic red RAL 3020	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-196041086	CP	with plastic cap, without locknut	signal green RAL 6032	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-196051086	CP	with plastic cap, without locknut	signal green RAL 6032	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-196061086	CP	with plastic cap, without locknut	signal green RAL 6032	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-1960410186	CP	with plastic cap, without locknut	signal green RAL 6032	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-1960510186	CP	with plastic cap, without locknut	signal green RAL 6032	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-1960610186	CP	with plastic cap, without locknut	signal green RAL 6032	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-196051286	CP	with plastic cap, without locknut	signal green RAL 6032	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-196061286	CP	with plastic cap, without locknut	signal green RAL 6032	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-196081286	CP	with plastic cap, without locknut	signal green RAL 6032	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-1960512186	CP	with plastic cap, without locknut	signal green RAL 6032	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-1960612186	CP	with plastic cap, without locknut	signal green RAL 6032	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-1960812186	CP	with plastic cap, without locknut	signal green RAL 6032	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-196061686	CP	with plastic cap, without locknut	signal green RAL 6032	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-196081686	CP	with plastic cap, without locknut	signal green RAL 6032	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-196101686	CP	with plastic cap, without locknut	signal green RAL 6032	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-1960616186	CP	with plastic cap, without locknut	signal green RAL 6032	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-1960816186	CP	with plastic cap, without locknut	signal green RAL 6032	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-1961016186	CP	with plastic cap, without locknut	signal green RAL 6032	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-196082086	CP	with plastic cap, without locknut	signal green RAL 6032	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-196102086	CP	with plastic cap, without locknut	signal green RAL 6032	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-196122086	CP	with plastic cap, without locknut	signal green RAL 6032	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-1960820186	CP	with plastic cap, without locknut	signal green RAL 6032	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-1961020186	CP	with plastic cap, without locknut	signal green RAL 6032	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-1961220186	CP	with plastic cap, without locknut	signal green RAL 6032	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-196041087	CP	with plastic cap, without locknut	traffic blue RAL 5017	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-196051087	CP	with plastic cap, without locknut	traffic blue RAL 5017	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-196061087	CP	with plastic cap, without locknut	traffic blue RAL 5017	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-1960410187	CP	with plastic cap, without locknut	traffic blue RAL 5017	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-1960510187	CP	with plastic cap, without locknut	traffic blue RAL 5017	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-1960610187	CP	with plastic cap, without locknut	traffic blue RAL 5017	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-196051287	CP	with plastic cap, without locknut	traffic blue RAL 5017	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-196061287	CP	with plastic cap, without locknut	traffic blue RAL 5017	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-196081287	CP	with plastic cap, without locknut	traffic blue RAL 5017	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-1960512187	CP	with plastic cap, without locknut	traffic blue RAL 5017	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-1960612187	CP	with plastic cap, without locknut	traffic blue RAL 5017	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-1960812187	CP	with plastic cap, without locknut	traffic blue RAL 5017	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-196061687	CP	with plastic cap, without locknut	traffic blue RAL 5017	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-196081687	CP	with plastic cap, without locknut	traffic blue RAL 5017	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-196101687	CP	with plastic cap, without locknut	traffic blue RAL 5017	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-1960616187	CP	with plastic cap, without locknut	traffic blue RAL 5017	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-1960816187	CP	with plastic cap, without locknut	traffic blue RAL 5017	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-1961016187	CP	with plastic cap, without locknut	traffic blue RAL 5017	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-196082087	CP	with plastic cap, without locknut	traffic blue RAL 5017	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-196102087	CP	with plastic cap, without locknut	traffic blue RAL 5017	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-196122087	CP	with plastic cap, without locknut	traffic blue RAL 5017	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-1960820187	CP	with plastic cap, without locknut	traffic blue RAL 5017	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-1961020187	CP	with plastic cap, without locknut	traffic blue RAL 5017	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-1961220187	CP	with plastic cap, without locknut	traffic blue RAL 5017	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-196041088	CP	with plastic cap, without locknut	light grey RAL 7035	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-196051088	CP	with plastic cap, without locknut	light grey RAL 7035	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-196061088	CP	with plastic cap, without locknut	light grey RAL 7035	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-1960410188	CP	with plastic cap, without locknut	light grey RAL 7035	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-1960510188	CP	with plastic cap, without locknut	light grey RAL 7035	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-1960610188	CP	with plastic cap, without locknut	light grey RAL 7035	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-196051288	CP	with plastic cap, without locknut	light grey RAL 7035	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-196061288	CP	with plastic cap, without locknut	light grey RAL 7035	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-196081288	CP	with plastic cap, without locknut	light grey RAL 7035	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-1960512188	CP	with plastic cap, without locknut	light grey RAL 7035	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-1960612188	CP	with plastic cap, without locknut	light grey RAL 7035	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-1960812188	CP	with plastic cap, without locknut	light grey RAL 7035	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-196061688	CP	with plastic cap, without locknut	light grey RAL 7035	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-196081688	CP	with plastic cap, without locknut	light grey RAL 7035	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-196101688	CP	with plastic cap, without locknut	light grey RAL 7035	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-1960616188	CP	with plastic cap, without locknut	light grey RAL 7035	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-1960816188	CP	with plastic cap, without locknut	light grey RAL 7035	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-1961016188	CP	with plastic cap, without locknut	light grey RAL 7035	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-196082088	CP	with plastic cap, without locknut	light grey RAL 7035	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-196102088	CP	with plastic cap, without locknut	light grey RAL 7035	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-196122088	CP	with plastic cap, without locknut	light grey RAL 7035	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-1960820188	CP	with plastic cap, without locknut	light grey RAL 7035	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-1961020188	CP	with plastic cap, without locknut	light grey RAL 7035	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-1961220188	CP	with plastic cap, without locknut	light grey RAL 7035	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
