        Cam-action indexing plungers, with thread lock

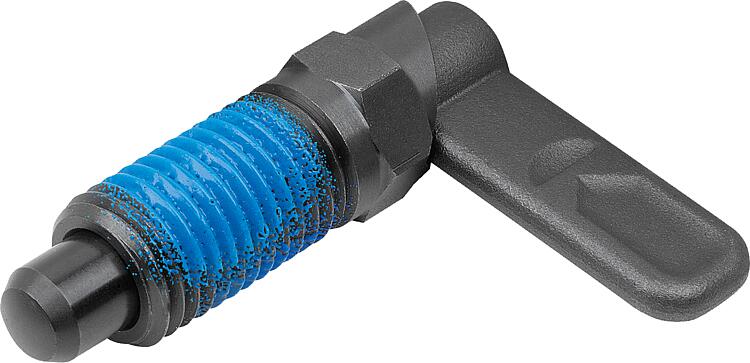

        Cam-action indexing plungers with thread lock, without grip cap or nut, Form AP

Item description/product images

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Threaded sleeve and indexing pin steel.
Spring 1.4310.
Grip cap thermoplastic PA.
Thread lock blue polyamideVersion:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light grey RAL 7035.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.Accessory:Mounting bracket 03099.
Positioning bushes 03099-50.Drawing reference:

Form AP: without grip cap or nut.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-13_AP Cam-action indexing plungers with thread lock, without grip cap or nut, Form AP

182 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-13-940410	AP	without plastic cap, without locknut	4	M10	10	38,5	25	15	9	3	6	10	1	8	14	on request
03099-13-940510	AP	without plastic cap, without locknut	5	M10	10	38,5	25	15	9	3	6	10	1,3	8	14	on request
03099-13-940610	AP	without plastic cap, without locknut	6	M10	10	38,5	25	15	9	3	6	10	1,8	8	14	on request
03099-13-9404101	AP	without plastic cap, without locknut	4	M10x1	10	38,5	25	15	9	3	6	10	1	8	14	on request
03099-13-9405101	AP	without plastic cap, without locknut	5	M10x1	10	38,5	25	15	9	3	6	10	1,3	8	14	on request
03099-13-9406101	AP	without plastic cap, without locknut	6	M10x1	10	38,5	25	15	9	3	6	10	1,8	8	14	on request
03099-13-940512	AP	without plastic cap, without locknut	5	M12	12	47,4	30	19	10,8	3,6	8	12	1,3	5	15	on request
03099-13-940612	AP	without plastic cap, without locknut	6	M12	12	47,4	30	19	10,8	3,6	8	12	1,8	5	15	on request
03099-13-940812	AP	without plastic cap, without locknut	8	M12	12	47,4	30	19	10,8	3,6	8	12	2,3	5	15	on request
03099-13-9405121	AP	without plastic cap, without locknut	5	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	1,3	5	15	on request
03099-13-9406121	AP	without plastic cap, without locknut	6	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	1,8	5	15	on request
03099-13-9408121	AP	without plastic cap, without locknut	8	M12x1,5	12	47,4	30	19	10,8	3,6	8	12	2,3	5	15	on request
03099-13-940616	AP	without plastic cap, without locknut	6	M16	16	61,2	40	26	14,4	4,8	10	16	1,8	15	35	on request
03099-13-940816	AP	without plastic cap, without locknut	8	M16	16	61,2	40	26	14,4	4,8	10	16	2,3	15	35	on request
03099-13-941016	AP	without plastic cap, without locknut	10	M16	16	61,2	40	26	14,4	4,8	10	16	2,8	15	35	on request
03099-13-9406161	AP	without plastic cap, without locknut	6	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	1,8	15	35	on request
03099-13-9408161	AP	without plastic cap, without locknut	8	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	2,3	15	35	on request
03099-13-9410161	AP	without plastic cap, without locknut	10	M16x1,5	16	61,2	40	26	14,4	4,8	10	16	2,8	15	35	on request
03099-13-940820	AP	without plastic cap, without locknut	8	M20	20	71	50	30	18	6	12	20	2,3	20	60	on request
03099-13-941020	AP	without plastic cap, without locknut	10	M20	20	71	50	30	18	6	12	20	2,8	20	60	on request
03099-13-941220	AP	without plastic cap, without locknut	12	M20	20	71	50	30	18	6	12	20	3	20	60	on request
03099-13-9408201	AP	without plastic cap, without locknut	8	M20x1,5	20	71	50	30	18	6	12	20	2,3	20	60	on request
03099-13-9410201	AP	without plastic cap, without locknut	10	M20x1,5	20	71	50	30	18	6	12	20	2,8	20	60	on request
03099-13-9412201	AP	without plastic cap, without locknut	12	M20x1,5	20	71	50	30	18	6	12	20	3	20	60	on request
