        Cam-action indexing plungers, with thread lock
        Cam-action indexing plungers with thread lock, with cap, without nut, Form CP

Item description/product images

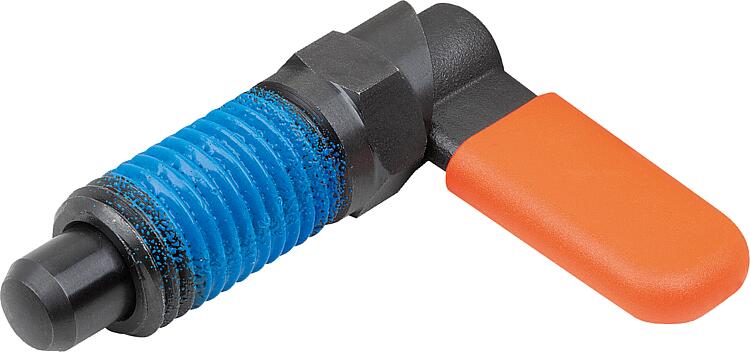

DescriptionProduct description:Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.Material:Grip 1.0503.
Threaded sleeve and indexing pin steel.
Spring 1.4310.
Grip cap thermoplastic PA.
Thread lock blue polyamideVersion:Threaded sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light grey RAL 7035.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Sleeves with a hexagon serve as assembly aids.
On request:Special versions.Accessory:Mounting bracket 03099.
Positioning bushes 03099-50.Drawing reference:

Form CP: with grip cap, without nut.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03099-13_CP Cam-action indexing plungers with thread lock, with cap, without nut, Form CP

258 kB

Drawings

Item selection/filter

Order No.	Form	Form definition	Component colour	Surface finish body	D	D1	D2	L	L1	L3	B	B1	H	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	Price
03099-13-960410	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-960510	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-960610	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-9604101	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-9605101	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-9606101	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-960512	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-960612	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-960812	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-9605121	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-9606121	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-9608121	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-960616	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-960816	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-961016	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-9606161	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-9608161	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-9610161	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-960820	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-961020	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-961220	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-9608201	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-9610201	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-9612201	CP	with plastic cap, without locknut	black grey RAL 7021	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-9604102	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-9605102	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-9606102	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-96041012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-96051012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-96061012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-9606122	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-9608122	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-9605122	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96051212	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96061212	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-96081212	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-9606162	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-9608162	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-9610162	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96061612	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-96101612	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96081612	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-9608202	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-9610202	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-9612202	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-96082012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-96102012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-96122012	CP	with plastic cap, without locknut	orange RAL 2004	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-96041016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-96051016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-96061016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-960410116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-960510116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-960610116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-96051216	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96061216	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-96081216	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-960512116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-960612116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-960812116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-96061616	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-96081616	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-96101616	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-960616116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-960816116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-961016116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96082016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-96102016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-96122016	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-960820116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-961020116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-961220116	CP	with plastic cap, without locknut	colza yellow RAL 1021	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-96041084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-96051084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-96061084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-960410184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-960510184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-960610184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-96051284	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96061284	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-96081284	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-960512184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-960612184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-960812184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-96061684	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-96081684	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-96101684	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-960616184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-960816184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-961016184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96082084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-96102084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-96122084	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-960820184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-961020184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-961220184	CP	with plastic cap, without locknut	traffic red RAL 3020	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-96041086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-96051086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-96061086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-960410186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-960510186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-960610186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-96051286	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96061286	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-96081286	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-960512186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-960612186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-960812186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-96061686	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-96081686	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-96101686	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-960616186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-960816186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-961016186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96082086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-96102086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-96122086	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-960820186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-961020186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-961220186	CP	with plastic cap, without locknut	signal green RAL 6032	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-96041087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-96051087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-96061087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-960410187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-960510187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-960610187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-96051287	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96061287	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-96081287	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-960512187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-960612187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-960812187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-96061687	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-96081687	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-96101687	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-960616187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-960816187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-961016187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96082087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-96102087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-96122087	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-960820187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-961020187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-961220187	CP	with plastic cap, without locknut	traffic blue RAL 5017	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-96041088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	4	M10	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-96051088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-96061088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M10	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-960410188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	4	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1	8	14	on request
03099-13-960510188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,3	8	14	on request
03099-13-960610188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M10x1	10	39,5	26,3	15	10,9	4,9	6	10	1,8	8	14	on request
03099-13-96051288	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-96061288	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M12	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-96081288	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M12	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-960512188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	5	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,3	5	15	on request
03099-13-960612188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	1,8	5	15	on request
03099-13-960812188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M12x1,5	12	48,4	31,1	19	12,9	5,7	8	12	2,3	5	15	on request
03099-13-96061688	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M16	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-96081688	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M16	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-96101688	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M16	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-960616188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	6	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	1,8	15	35	on request
03099-13-960816188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,3	15	35	on request
03099-13-961016188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M16x1,5	16	62,3	41,5	26	16,6	7	10	16	2,8	15	35	on request
03099-13-96082088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-96102088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M20	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-96122088	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	12	M20	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
03099-13-960820188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	8	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,3	20	60	on request
03099-13-961020188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	10	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	2,8	20	60	on request
03099-13-961220188	CP	with plastic cap, without locknut	light grey RAL 7035	black oxidised	12	M20x1,5	20	72,3	51,3	30	20,5	8,5	12	20	3	20	60	on request
