03072-20Spring plungers to press-in, without collar, steel |
go back |
|

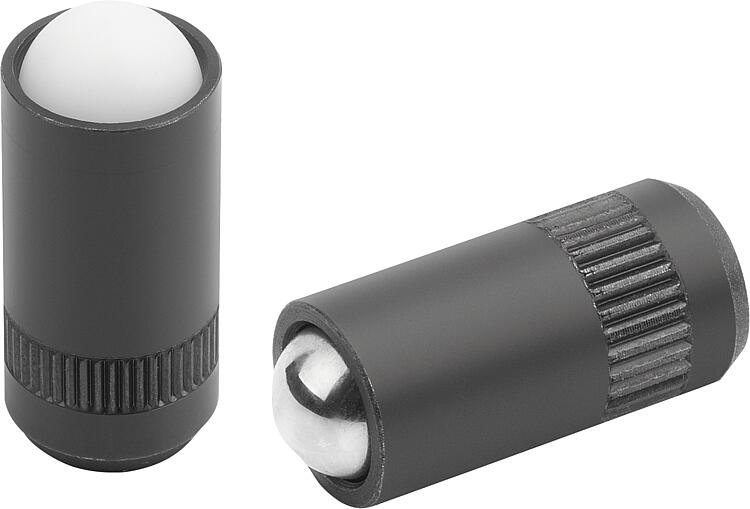

Item description/product images |
|
|
DescriptionMaterial:Version:Sleeve black oxidised.

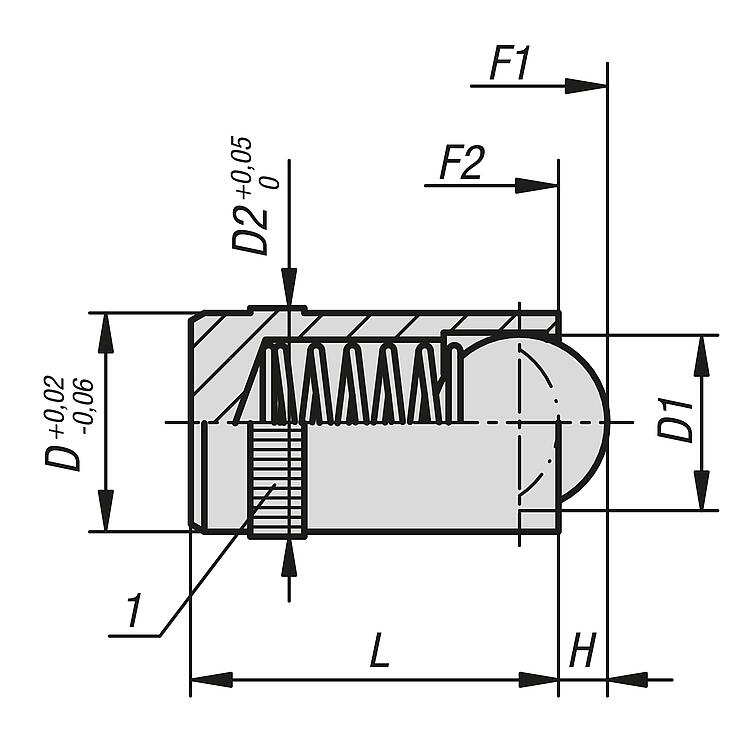

Ball hardened, bright.Note:With DIN 82-RAA knurlDrawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | D
| D1 | D2 | H=Stroke | L | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| 03072-20-103 | steel | 3 | 2 | 3,05 | 0,65 | 7 | 5 | 7 |  | | on request | | | 03072-20-104 | steel | 4 | 3 | 4,05 | 0,8 | 9 | 12 | 22 | | | on request | | | 03072-20-105 | steel | 5 | 4 | 5,05 | 1 | 12 | 19 | 30 | | | on request | | | 03072-20-106 | steel | 6 | 5 | 6,05 | 1,5 | 14 | 22 | 40 | | | on request | | | 03072-20-108 | steel | 8 | 6 | 8,05 | 1,8 | 16 | 42 | 73 | | | on request | | | 03072-20-110 | steel | 10 | 8 | 10,05 | 2,7 | 22 | 54 | 100 | | | on request | | | 03072-20-112 | steel | 12 | 10 | 12,05 | 3,2 | 24 | 54 | 122 | | | on request | | | 03072-20-304 | POM | 4 | 3 | 4,05 | 0,6 | 9 | 12 | 22 | | | on request | | | 03072-20-305 | POM | 5 | 4 | 5,05 | 0,9 | 12 | 19 | 30 | | | on request | | | 03072-20-306 | POM | 6 | 5 | 6,05 | 1,3 | 14 | 22 | 40 | | | on request | | | 03072-20-308 | POM | 8 | 6 | 8,05 | 1,7 | 16 | 42 | 73 | | | on request | | | 03072-20-310 | POM | 10 | 8 | 10,05 | 2,6 | 22 | 54 | 100 | | | on request | | | 03072-20-312 | POM | 12 | 10 | 12,05 | 3,1 | 24 | 54 | 122 | | | on request | |
