        Hook clamp with long clamping claw and tapped hole

Item description/product images

DescriptionMaterial:Carbon steel, tempered.Version:Black oxidised.Advantages:The tapped hole enables the desired support and adjustment of the contact face.Accessory:Springs 07650 and socket head screws 07160.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04370 Hook clamp with long clamping claw and tapped hole

333 kB

Drawings (total overview)

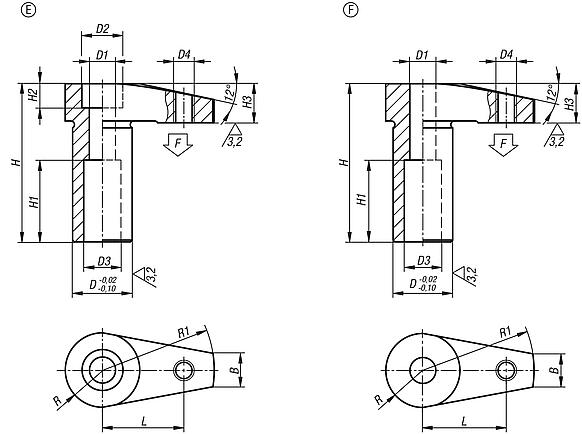

Hook clamp with long clamping claw and tapped hole, Form E

More information

Drawings

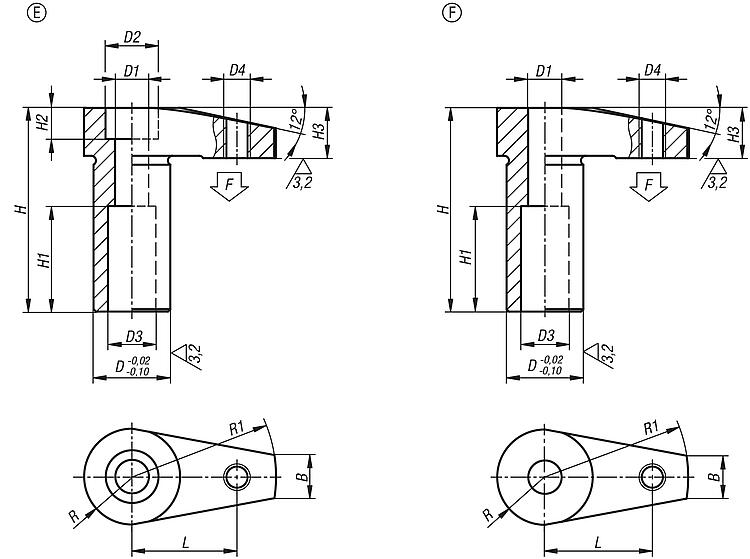

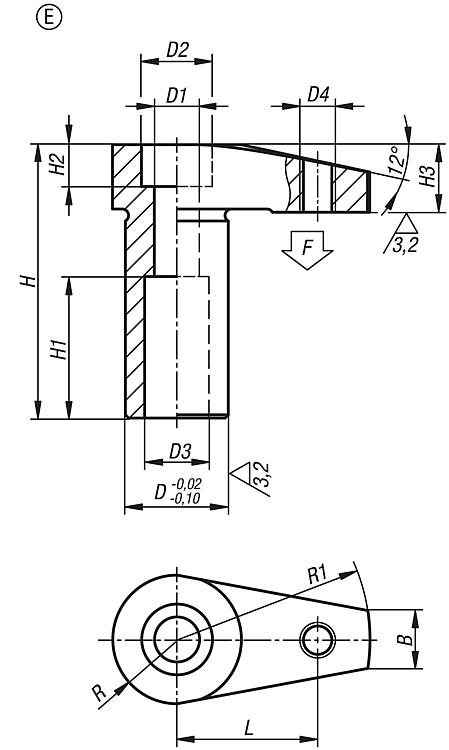

Hook clamp with long clamping claw and tapped hole, Form E

Item selection/filter

Order No.	Form	B	D	D1	D2	D3	D4	H	H1	H2	H3	L	R	R1	F max. kN	Price
04370-606	E	9	16	7	11	10	M6	42,5	22	6	10,5	22	10	30	4,5	on request
04370-608	E	12	20	8,6	15	12	M8	52,5	25	8	12,5	30	12,5	40	6,5	on request
04370-610	E	18	25	10,6	18	14	M10	66,5	32	10	16,5	38	16	50	11,8	on request

Hook clamp with long clamping claw and tapped hole, Form F

More information

Drawings

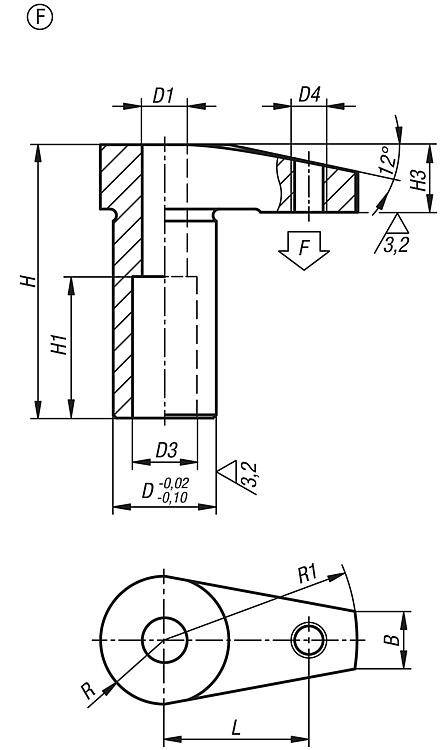

Hook clamp with long clamping claw and tapped hole, Form F

Item selection/filter

Order No.	Form	B	D	D1	D3	D4	H	H1	H3	L	R	R1	F max. kN	Price
04370-706	F	9	16	7	10	M6	42,5	22	10,5	22	10	30	4,5	on request
04370-708	F	12	20	8,6	12	M8	52,5	25	12,5	30	12,5	40	6,5	on request
04370-710	F	18	25	10,6	14	M10	66,5	32	16,5	38	16	50	11,8	on request
