05530-05Catch plates for stainless steel latches with DIN 3133 draw bail |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4301. Version:Electro zinc-plated.Accessory:Latch 05530-05.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

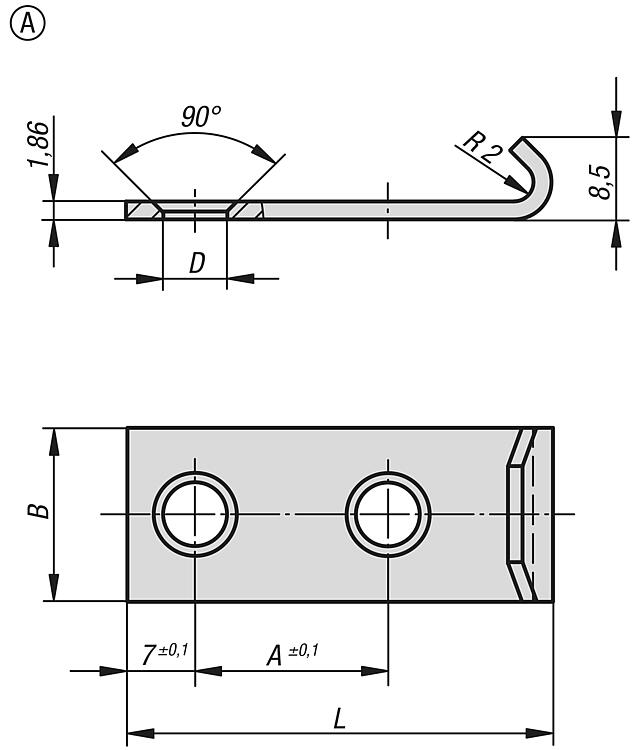

Catch plates for stainless steel latches with DIN 3133 draw bail, Form A |
More information |
| Order No. | Item | Form | L | B | A | D
| CAD | Acc. | Price | Order |
|---|
| 05530-05-91460442 | Catch plate | A | 44 | 18 | 20 | 4,8 |  | | on request | |
|

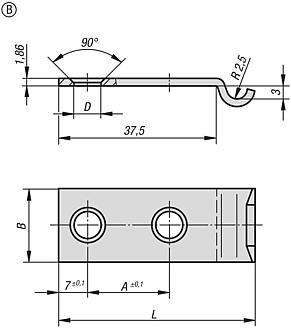

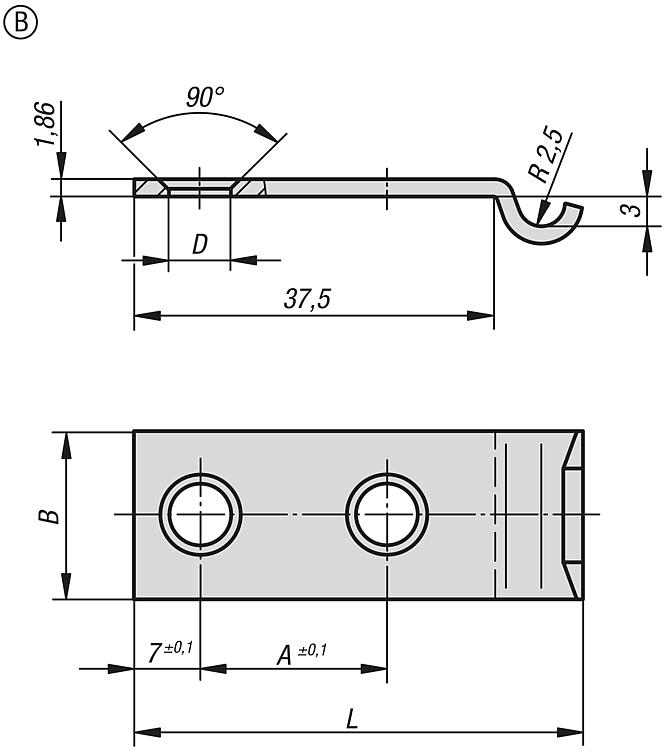

Catch plates for stainless steel latches with DIN 3133 draw bail, Form B |
More information |
| Order No. | Item | Form | L | B | A | D
| CAD | Acc. | Price | Order |
|---|
| 05530-05-92460482 | Catch plate | B | 48 | 18 | 20 | 4,8 | | | on request | |
|
