        Catch plates for latches with draw bail, fastening holes concealed

Item description/product images

DescriptionMaterial:

Steel or stainless steel 1.4301.

Version:Electro zinc-plated, thick-film passivated and sealed with Top Coat.
Stainless steel bright.Accessory:Latch 05536.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05536 Catch plates for latches with draw bail

122 kB

Drawings (total overview)

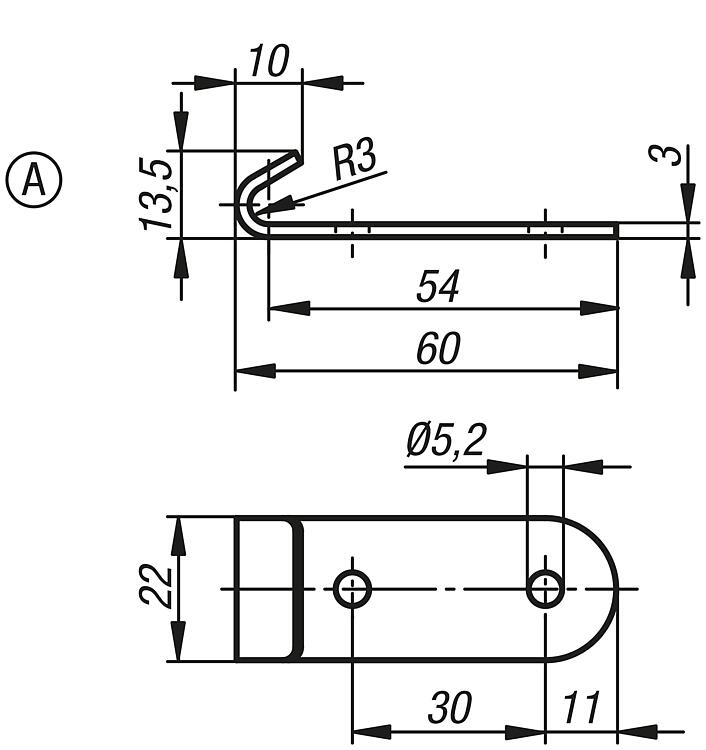

Catch plates Form A, for latches with draw bail

More information

Drawings

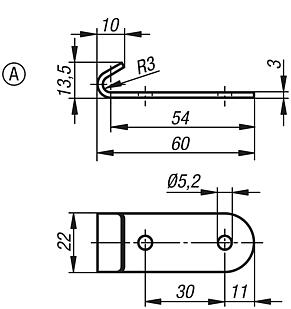

Catch plates Form A, for latches with draw bail

Item selection/filter

Order No.	Main material	Form	CAD	Acc.	Price	Order
05536-91520601	steel	A			on request
05536-91520602	stainless steel	A			on request

Catch plates Form B, for latches with draw bail

More information

Drawings

Catch plates Form B, for latches with draw bail

Item selection/filter

Order No.	Main material	Form	CAD	Acc.	Price	Order
05536-92521061	steel	B			on request
05536-92521062	stainless steel	B			on request

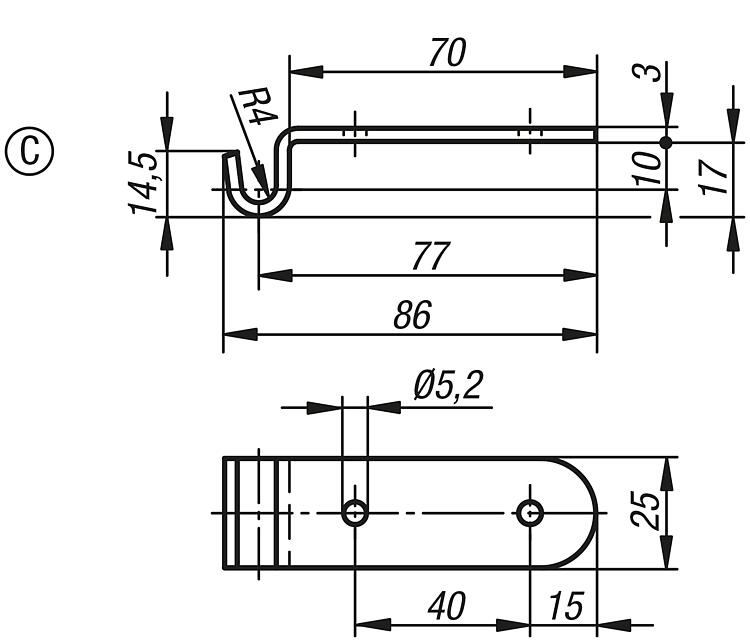

Catch plates Form C, for latches with draw bail

More information

Drawings

Catch plates Form C, for latches with draw bail

Item selection/filter

Order No.	Main material	Form	CAD	Acc.	Price	Order
05536-93520861	steel	C			on request
05536-93520862	stainless steel	C			on request

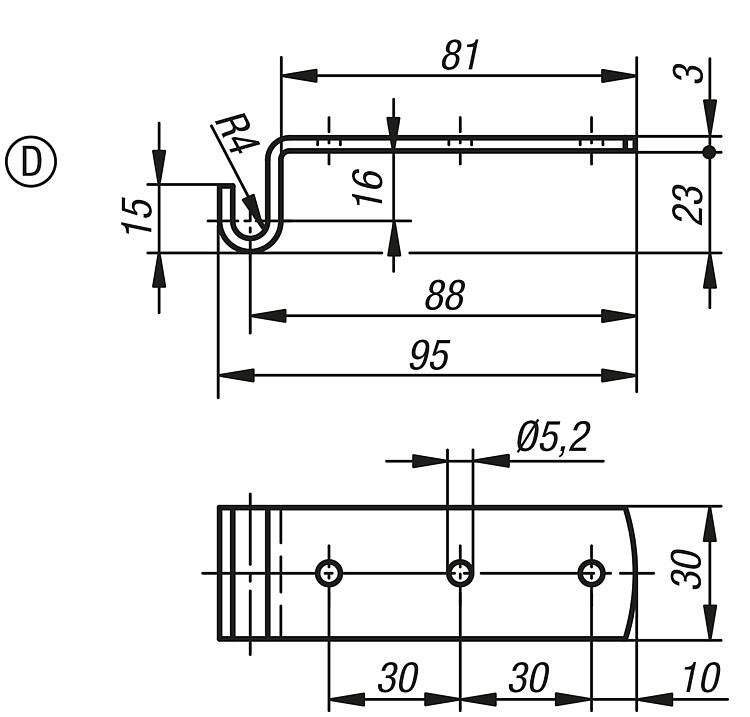

Catch plates Form D, for latches with draw bail

More information

Drawings

Catch plates Form D, for latches with draw bail

Item selection/filter

Order No.	Main material	Form	CAD	Acc.	Price	Order
05536-94520951	steel	D			on request
05536-94520952	stainless steel	D			on request
