DescriptionMaterial:Star grip thermoplastic.
Bush steel.
Washer steel 140 HV.
Eye bolt steel grade 8.8.
Hinge pin steel 1.1181.Version:Star grip black.
Bush trivalent blue passivated
Washer bright.
Eye bolt black oxidised.
Hinge pins tempered, ground and bright.Note:The swing screws are supplied unassembled.
Suitable circlips are enclosed.Special features: DownloadHere is all the information as a PDF datasheet:

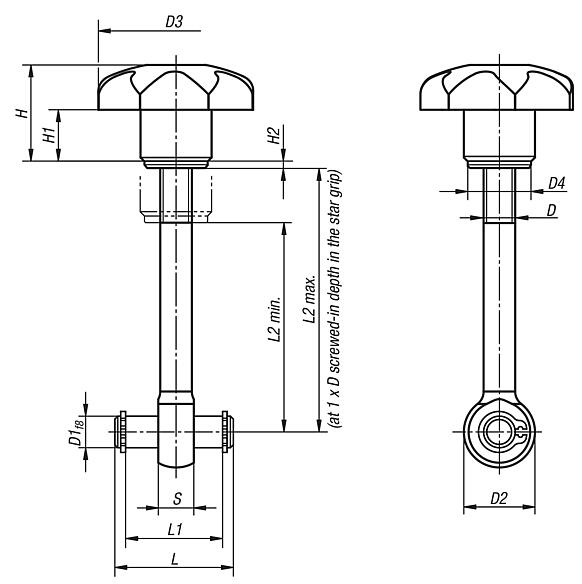

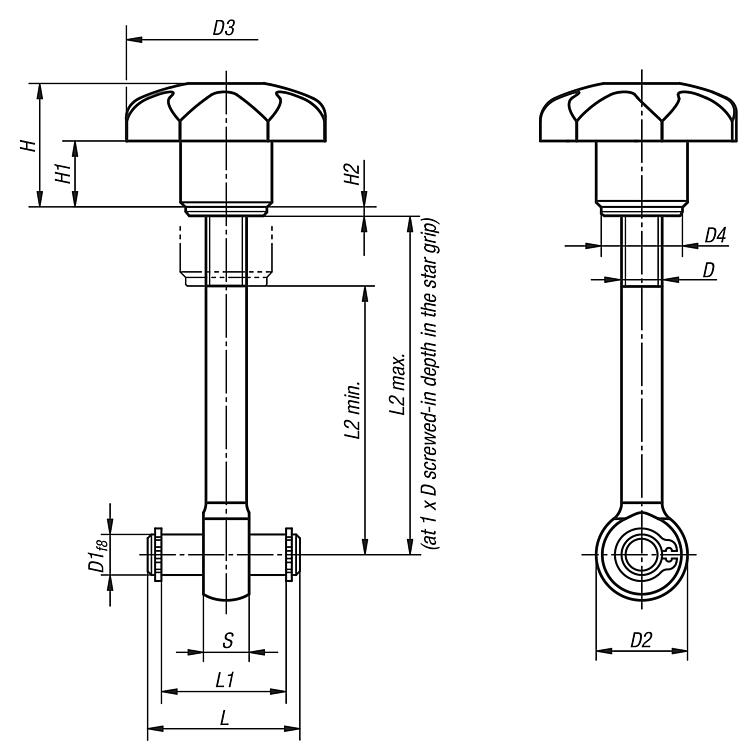

Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | D2 | D3 | D4 | H | H1 | H2 | L | L1 | L2
min. | L2
max. | S | CAD | Acc. | Price | Order |
|---|
| 05660-06050 | M6 | 6 | 14 | 32 | 12 | 20 | 10 | 1,6 | 22 | 17 | 30,4 | 42,4 | 7 |  | | on request | | | 05660-06075 | M6 | 6 | 14 | 32 | 12 | 20 | 10 | 1,6 | 22 | 17 | 55,4 | 67,4 | 7 | | | on request | | | 05660-08050 | M8 | 8 | 18 | 40 | 16 | 24 | 13 | 1,6 | 30 | 25 | 26,4 | 40,4 | 9 | | | on request | | | 05660-08075 | M8 | 8 | 18 | 40 | 16 | 24 | 13 | 1,6 | 30 | 25 | 51,4 | 65,4 | 9 | | | on request | | | 05660-10075 | M10 | 10 | 20 | 50 | 20 | 31 | 17 | 2 | 37 | 32 | 47 | 63 | 12 | | | on request | | | 05660-10100 | M10 | 10 | 20 | 50 | 20 | 31 | 17 | 2 | 37 | 32 | 72 | 88 | 12 | | | on request | |
