Snap locks, plastic with recessed grip, snap-in, Form C, medium
Item description/product images
DescriptionMaterial:
Lock ABS.
Spring stainless steel 1.4310.
Version:Lock black. Spring bright.Note:These snap locks are designed for flush installation in doors, hatches and covers.
Available in six different sizes for different door leaf thicknesses.

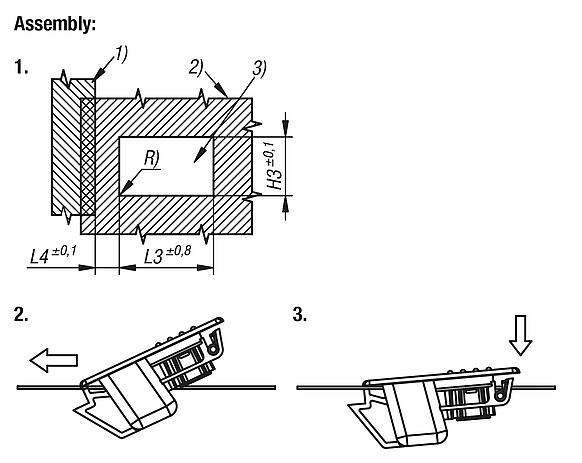

Flammability rating: listed UL94-HB.Type of operation:When the grip is pressed down, the latch retracts and the door can be opened. When the door is pushed to, a spring automatically latches it shut.Application:- Automobile industry - Medical technology - Machine construction - Equipment construction - Industrial control cabinetsAssembly:1. Produce a burr-free mounting cutout as shown in the drawing. 2. Insert the lock into the cutout from the front and push forwards. 3. Press the lock down to clip in.Drawing reference:

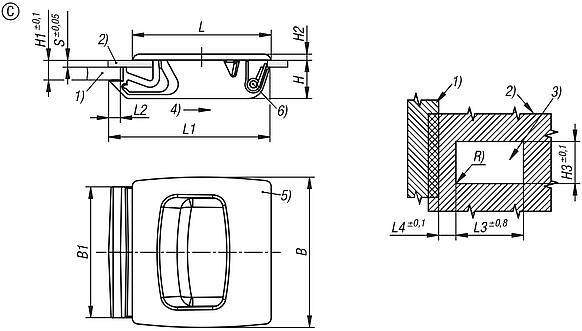

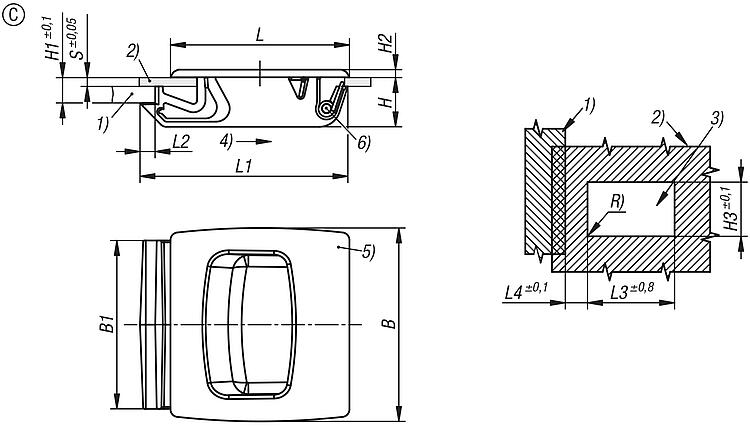

1) Frame 2) Door leaf 3) Mounting cutout 4) Actuation direction 5) Lock 6) Spring
Special features:
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
