05741-10Toggle clamps, steel, horizontal with full retaining arm, 4500N |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated steel.
Plastic handle, oil-resistant.Note:Full retaining arm for simple modifications and adaptions
Form A: horizontal mounting
Form B: vertical mountingSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

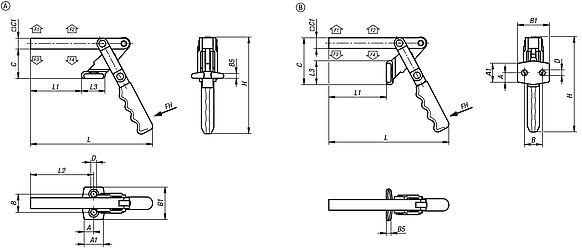

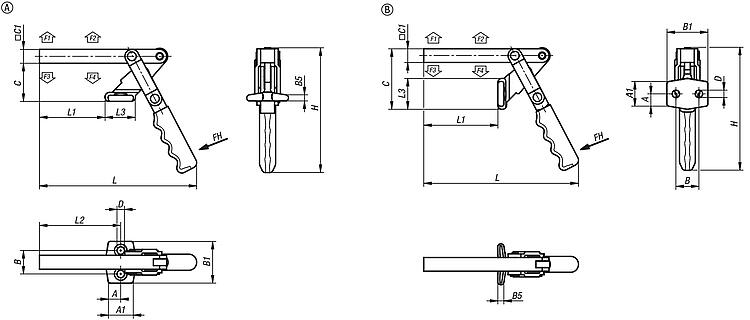

Drawings (total overview) |

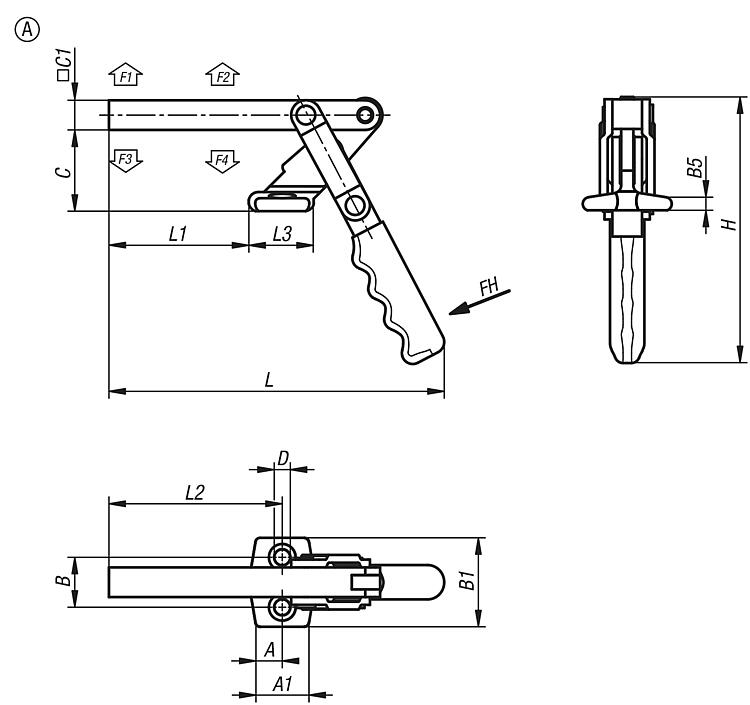

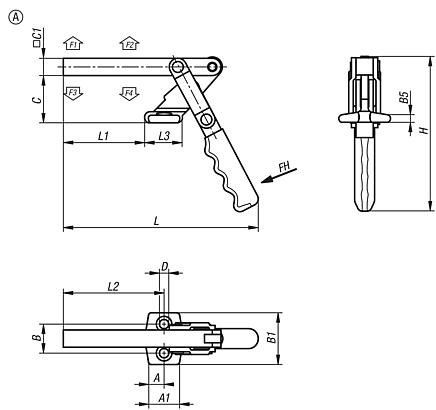

Toggle clamps, steel, horizontal with full retaining arm, 4500N, Form A |
More information |
| Order No. | Form | A | A1 | B | B1 | B5 | C | C1 | D | H | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| 05741-10-004500 | A | 17 | 34 | 32 | 57 | 8,6 | 52,3 | 19 | 10,3 | 168 | 215 | 89,5 | 111 | 43 |  | | on request | |
| Order No. | Form | Hand
force
FH N | Retaining
force
F1 N | F2=Retaining force N | Clamping force
F3
N | Clamping
force
F4 N | Opening
angle of
handle | Opening
angle of
holding arm | CAD | Acc. | Price | Order |
|---|
| 05741-10-004500 | A | 120 | 2580 | 4500 | 1440 | 2760 | 59° | 195° | | | on request | |
|

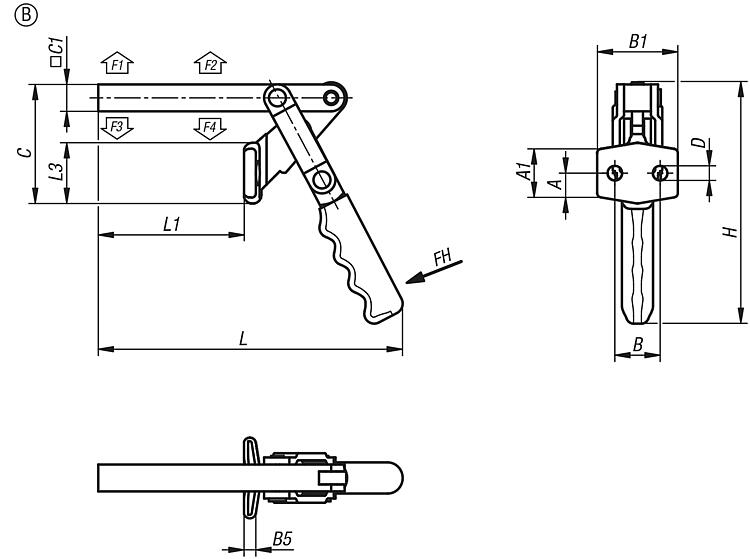

Toggle clamps, steel, horizontal with full retaining arm 4500N, Form B |
More information |
| Order No. | Form | A | A1 | B | B1 | B5 | C | C1 | D | H | L | L1 | L3 | CAD | Acc. | Price | Order |
|---|
| 05741-10-014500 | B | 17 | 34 | 32 | 57 | 8,6 | 65,1 | 19 | 10,3 | 168 | 215 | 103 | 43 | | | on request | |
| Order No. | Form | Hand
force
FH N | Retaining
force
F1 N | Retaining
force
F2 N | Clamping force
F3
N | Clamping
force
F4 N | Opening
angle of
handle | Opening
angle of
holding arm | CAD | Acc. | Price | Order |
|---|
| 05741-10-014500 | B | 120 | 2580 | 4500 | 1440 | 2760 | 59° | 195° | | | on request | |
|
