05600-02Swivel grip plastic, mounting hole square, mounting hole spacing... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Swivel grips plastic.Note:The plastic swivel grip is an innovative and ergonomic solution that has been specially developed for mounting on switch cabinets and control systems. With their robust design and high-quality materials, these swivel grips offer both functionality and durability.
The mounting holes have the standard 50x50x50 spacing.
The swivel grip can be combined with other products for switch cabinet construction to create a 1, 2 or 3-point locking system (see technical information).
By Form A the profile half-cylinder locks are already installed into the swivel grip.
For Form B, the profile half-cylinder lock for swivel grip (05601) must be ordered separately.
The mounting screws required for mounting the swivel grips and accessories are supplied.Accessory:05601 Profile half-cylinder lock for swivel grips
05569 Steel tongue for quarter-turn locks.
05570 Steel tongue for quarter-turn locks.
05601-05 Adapter for round rods, steel, stainless steel or zinc.
05601-11 Zinc bushes for tongues.
05601-12 Steel round rods for swivel grip.
05601-13 Plastic guide for round rods.
05601-20 Zinc attachment for round rods.
05601-14 Plastic stop for round rods.
05601-22 Plastic or zinc bar lock for flat bars.
05601-21 Steel flat bars for swivel grip.
05601-10 Plastic or zinc adapter for tongues.Drawing reference:1) Mounting holes
2) Sheet thickness max. 2.5 mm
3) 1-point locking system
4) 3-point locking system
5) Tongue K1114
6) Swivel grip
7) Steel, stainless steel or zinc adapter for rods K2271
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

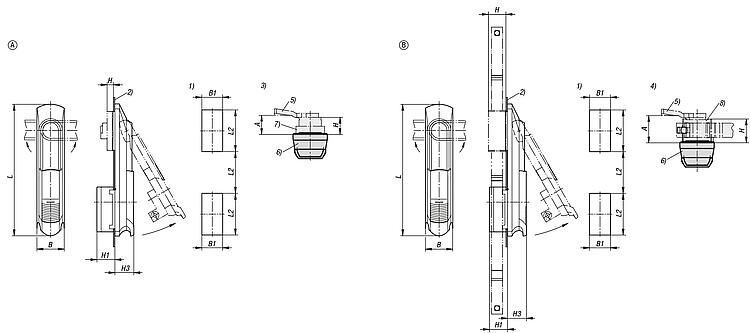

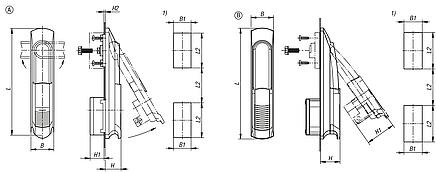

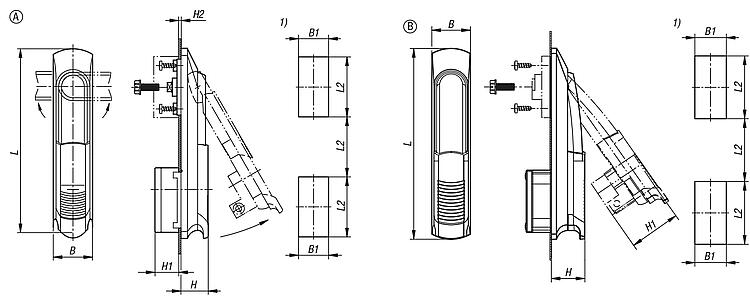

Drawings (total overview) |

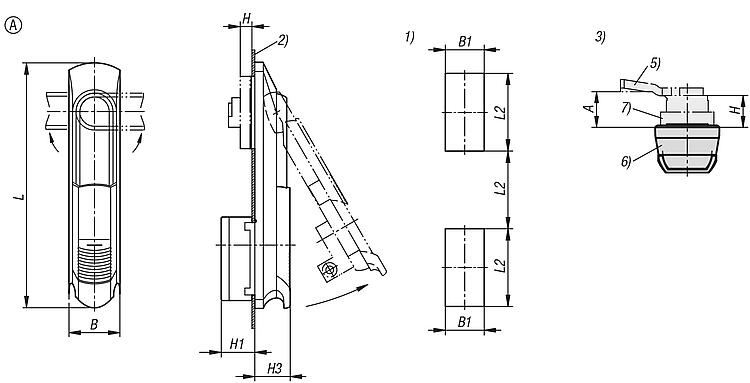

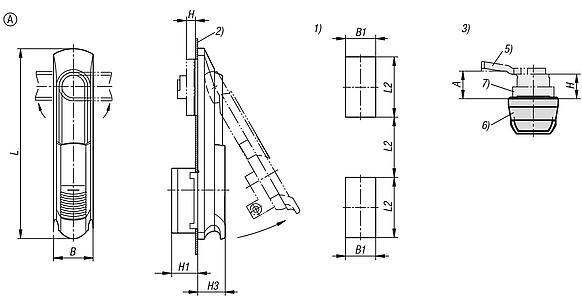

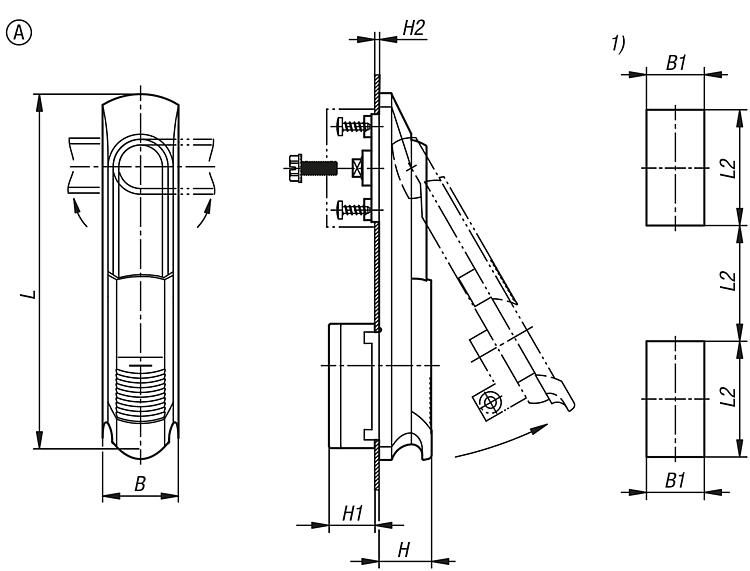

Swivel grip plastic, mounting hole square, mounting hole spacing 50x50x50 mm, with cover, with profile half-cylinder lock, Form A |
More information |
| Order No. | Form | Form definition | Version 1 | Version 2 | B | B1 | H | H1 | H3 | L | L2 | CAD | Acc. | Price | Order |
|---|
| 05600-02-000 | A | with profile cylinder lock | single-key system | for adapters | 34 | 25 | 18 | 21 | 24 | 168 | 50 |  | | on request | | | 05600-02-100 | A | with profile cylinder lock | individual keys | for adapters | 34 | 25 | 18 | 21 | 24 | 168 | 50 | | | on request | |
|

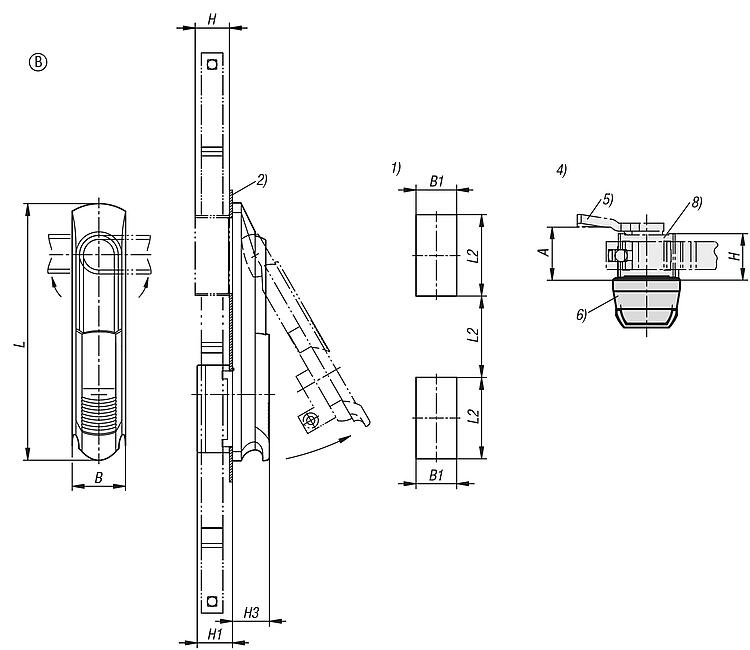

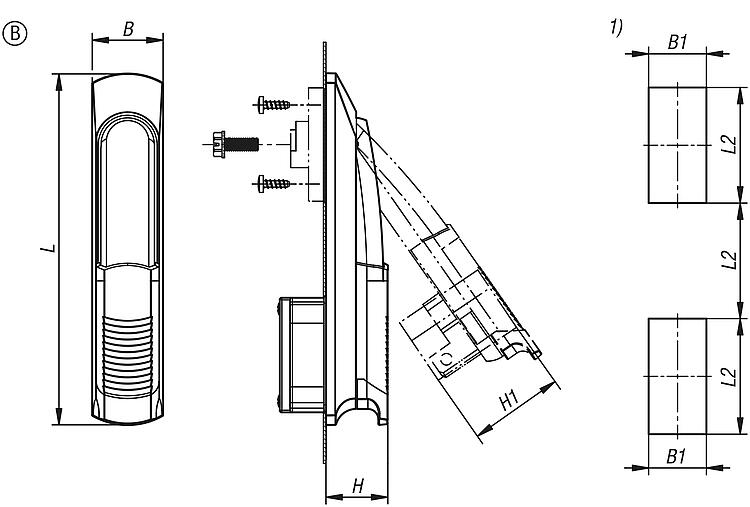

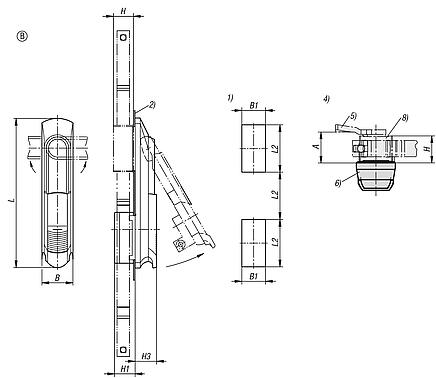

Swivel grip plastic, mounting hole square, mounting hole spacing 50x50x50 mm, with cover, with profile half-cylinder lock, Form B |
More information |
| Order No. | Form | Form definition | Version 1 | Version 2 | B | B1 | H | H1 | H3 | L | L2 | CAD | Acc. | Price | Order |
|---|
| 05600-02-010 | B | with profile cylinder lock | single-key system | for flat bars | 34 | 25 | 24 | 21 | 24 | 168 | 50 | | | on request | | | 05600-02-110 | B | with profile cylinder lock | individual keys | for flat bars | 34 | 25 | 24 | 21 | 24 | 168 | 50 | | | on request | |
|

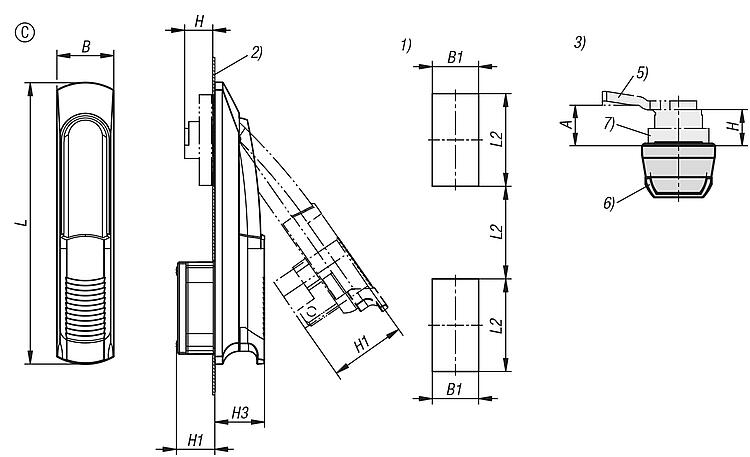

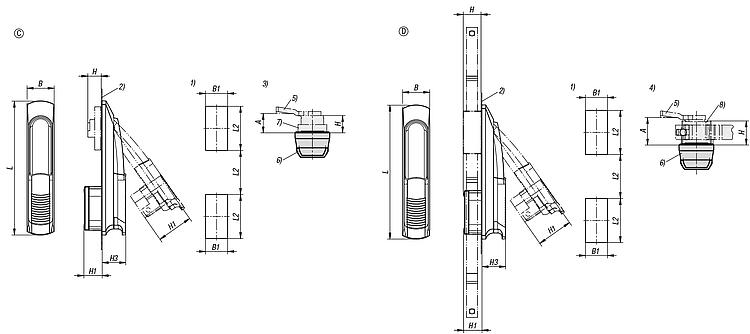

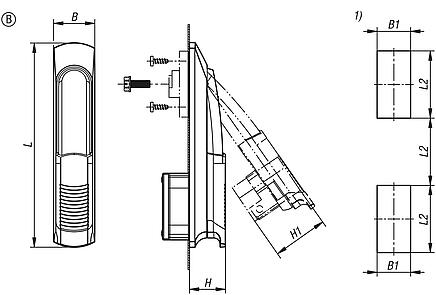

Swivel grip plastic, mounting hole square, mounting hole spacing 50x50x50 mm, with cover, without profile half-cylinder lock, Form C |
More information |
| Order No. | Form | Form definition | Version 2 | B | B1 | H | H1 | H3 | L | L2 | CAD | Acc. | Price | Order |
|---|
| 05600-02-01 | C | without profile cylinder lock | for adapters | 34 | 25 | 18 | 21 | 31 | 168 | 50 | | | on request | |
|

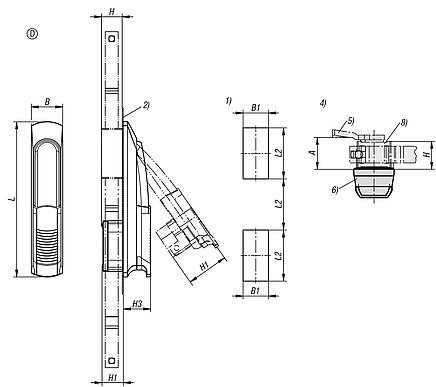

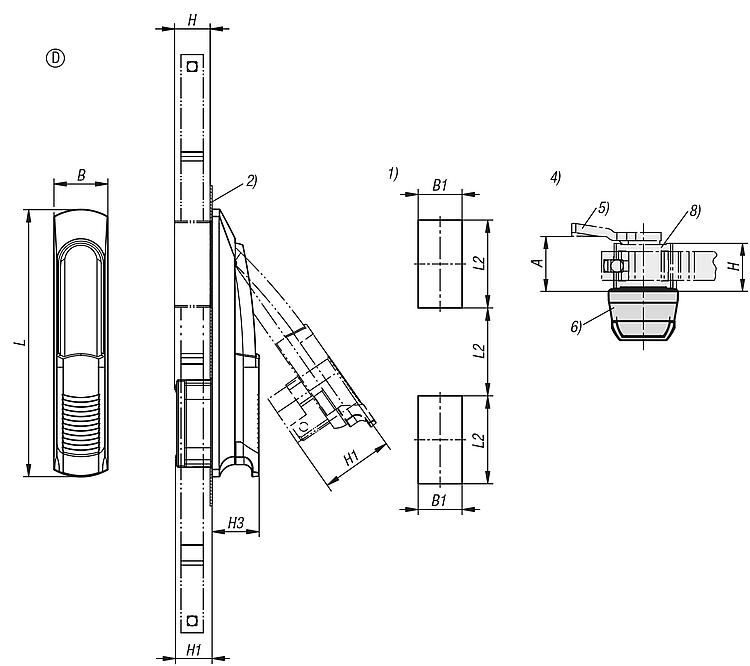

Swivel grip plastic, mounting hole square, mounting hole spacing 50x50x50 mm, with cover, without profile half-cylinder lock, Form D |
More information |
| Order No. | Form | Form definition | Version 2 | B | B1 | H | H1 | H3 | L | L2 | CAD | Acc. | Price | Order |
|---|
| 05600-02-11 | D | without profile cylinder lock | for flat bars | 34 | 25 | 24 | 21 | 31 | 168 | 50 | | | on request | |
|
