05600-03Swivel grip plastic, mounting hole square, mounting hole spacing... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Swivel grips plastic.Note:The plastic swivel grip is an innovative and ergonomic solution that has been specially developed for mounting on switch cabinets and control systems. With their robust design and high-quality materials, these swivel grips offer both functionality and durability.
The installation holes are spaced at the market standard of 50x55x50.
The swivel grips can be combined with other products for switch cabinet construction to form a 1, 2 or 3 point locking system (see technical information).
Profile half-cylinder locks for swivel grip (05601) must be ordered separately.Accessory:05601 Profile half-cylinder lock for swivel grips
05569 Steel tongue for quarter-turn locks.
05601-05 Adapter for round rods, steel, stainless steel or zinc.
05601-11 Zinc bushes for tongues.
05601-12 Steel round rods for swivel grip.
05601-13 Plastic guide for round rods.
05601-20 Zinc attachment for round rods.
05601-14 Plastic stop for round rods.
05601-22 Plastic or zinc bar lock for flat bars.
05601-21 Steel flat bars for swivel grip.

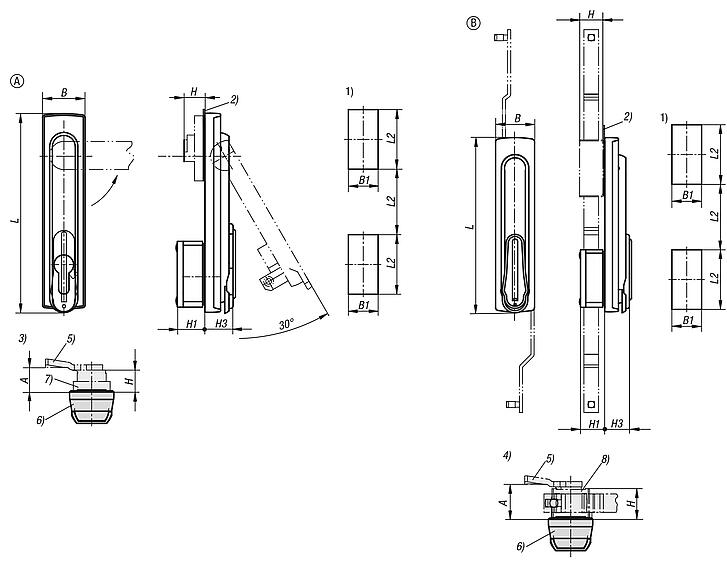

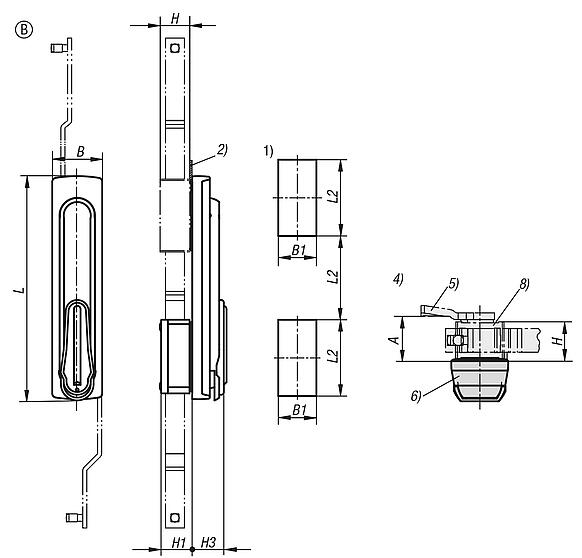

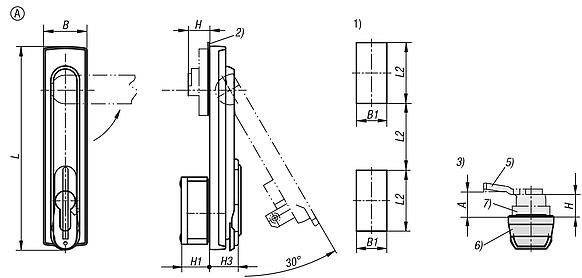

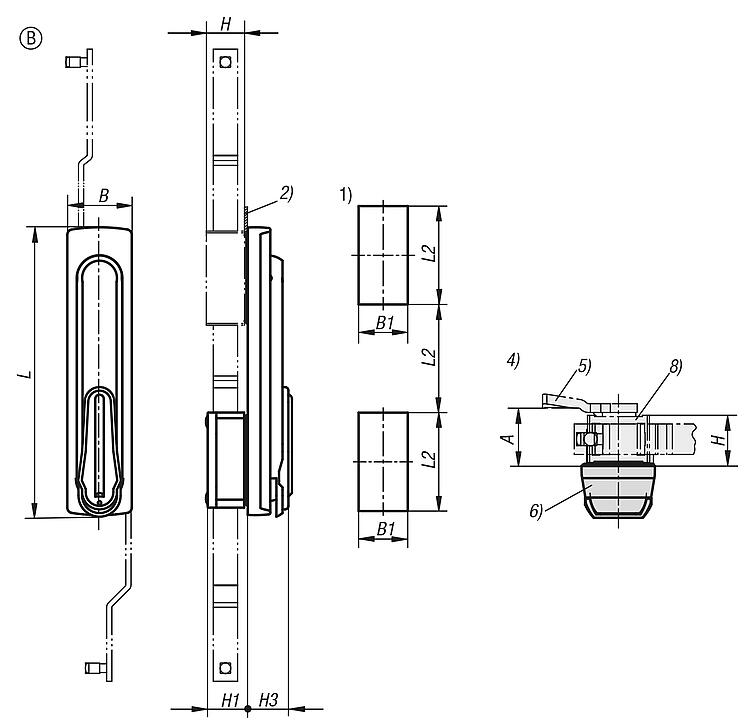

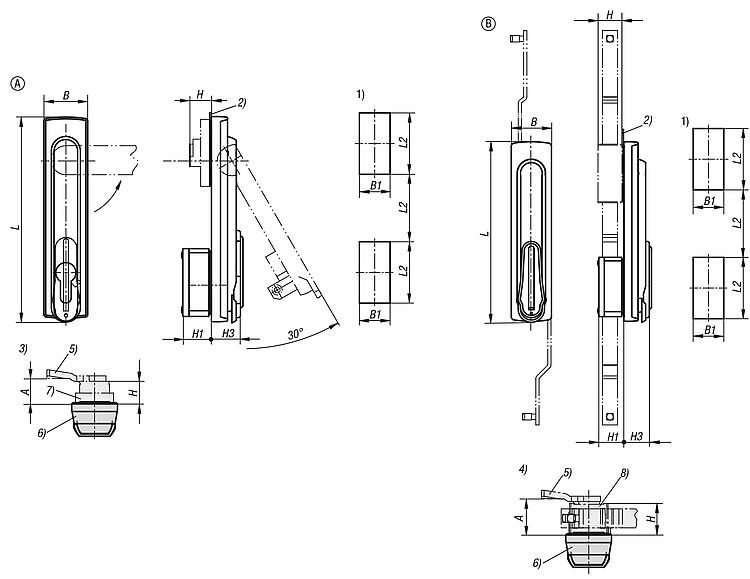

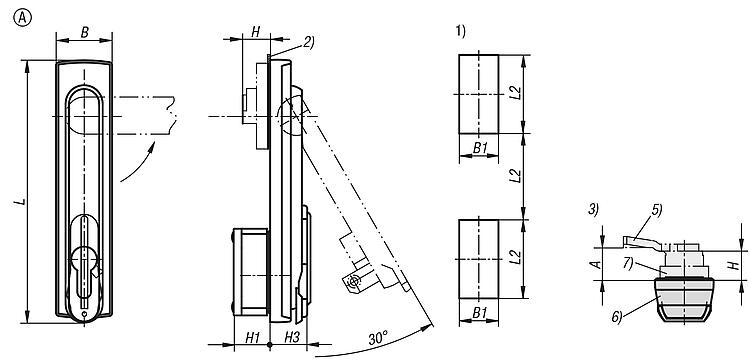

05601-10 Plastic or zinc adapter for tongues.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 1 | Version 2 | Form definition | B
| B1 | H | H1 | L | L2 | CAD | Acc. | Price | Order |
|---|
| 05600-03-01 | for profile cylinders | for adapters | without profile cylinder lock | 37 | 25 | 21 | 21 | 161 | 50 |  | | on request | | | 05600-03-11 | for profile cylinders | for flat bars | without profile cylinder lock | 37 | 25 | 21 | 21 | 161 | 50 | | | on request | |
