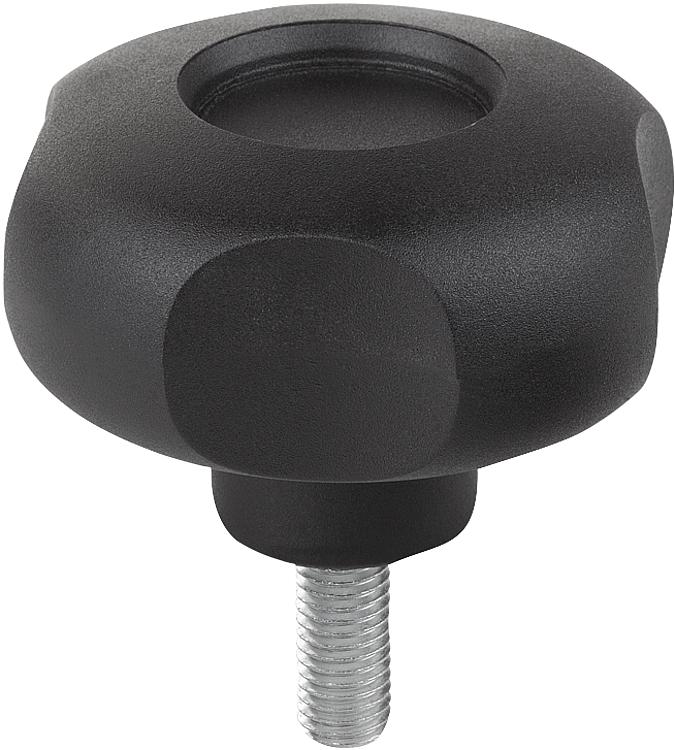

Four lobe grips with external thread

Item description/product images

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Screw steel.Version:Grip, black.
Screw electro zinc-plated.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Order No.	Form	D	D1	D2	D6	H	H3	T1	L	Price
06760-43006X16	L	M6	30	15	12	23	9,5	2	16	on request
06760-43006X20	L	M6	30	15	12	23	9,5	2	20	on request
06760-43006X30	L	M6	30	15	12	23	9,5	2	30	on request
06760-43006X40	L	M6	30	15	12	23	9,5	2	40	on request
06760-43006X50	L	M6	30	15	12	23	9,5	2	50	on request
06760-44006X16	L	M6	40,5	15,5	12	29,5	11	3	16	on request
06760-44006X20	L	M6	40,5	15,5	12	29,5	11	3	20	on request
06760-44008X20	L	M8	40,5	15	12	29,5	11	3	20	on request
06760-44008X30	L	M8	40,5	15	12	29,5	11	3	30	on request
06760-44008X40	L	M8	40,5	15	12	29,5	11	3	40	on request
06760-45208X16	L	M8	50	20,5	14,5	32,5	11	2,5	16	on request
06760-45208X20	L	M8	50	20,5	14,5	32,5	11	2,5	20	on request
06760-45208X30	L	M8	50	20,5	14,5	32,5	11	2,5	30	on request
06760-45208X40	L	M8	50	20,5	14,5	32,5	11	2,5	40	on request
06760-45208X50	L	M8	50	20,5	14,5	32,5	11	2,5	50	on request
06760-46010X20	L	M10	59	23	24	40	15	4	20	on request
06760-46010X30	L	M10	59	23	24	40	15	4	30	on request
06760-46010X40	L	M10	59	23	24	40	15	4	40	on request
06760-46010X50	L	M10	59	23	24	40	15	4	50	on request
06760-46012X50	L	M12	59	23	24	40	15	4	50	on request
06760-48010X30	L	M10	79	30	21	41	17	3	30	on request
06760-48010X50	L	M10	79	30	21	41	17	3	50	on request
06760-48012X50	L	M12	79	30	21	41	17	3	50	on request
