        Four lobe grips

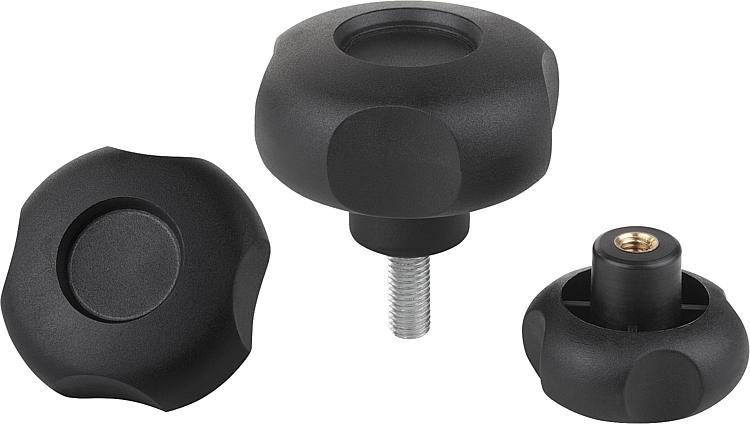

Item description/product images

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Tapped bush brass.
Screw steel.Version:Grip, black.
Screw electro zinc-plated.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06760 Four lobe grips

164 kB

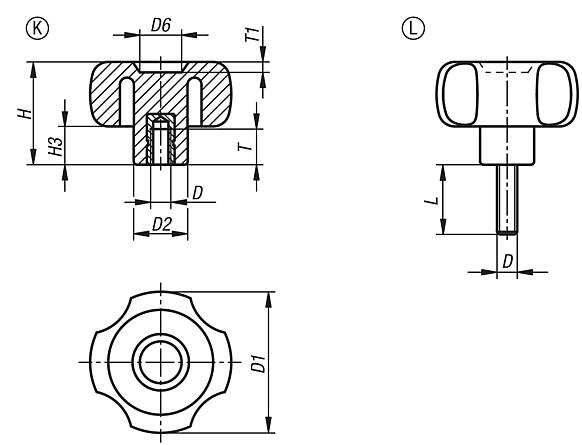

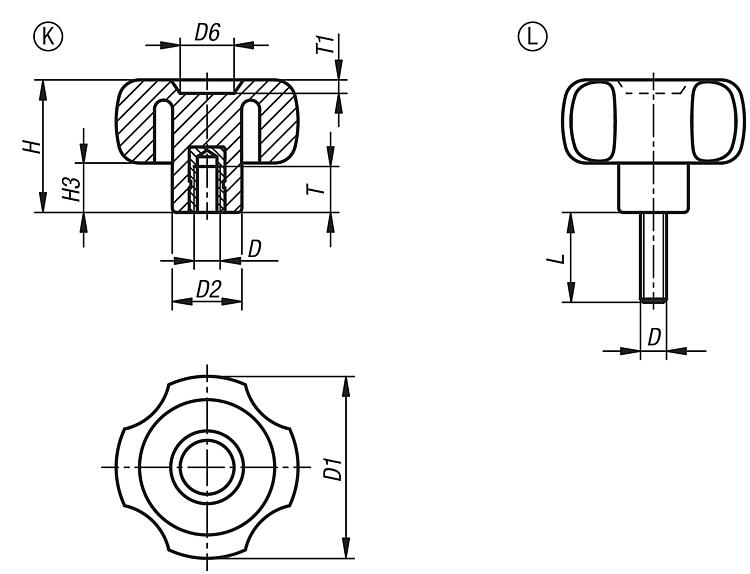

Drawings (total overview)

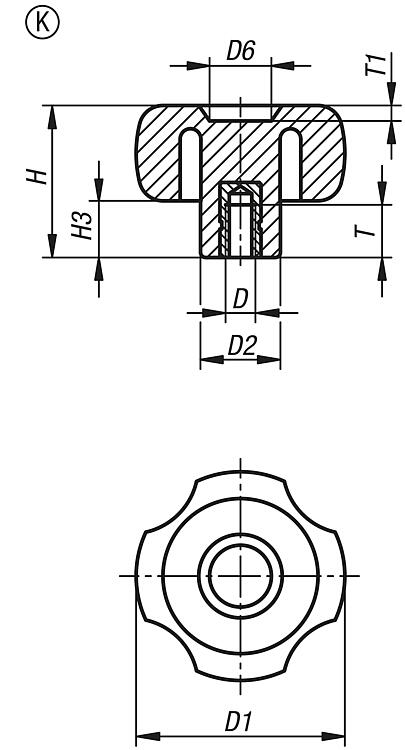

Four lobe grips with internal thread

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T	T1	Price
06760-23006	K	M6	30	15	12	23	9,5	10	2	on request
06760-24006	K	M6	40,5	15,5	12	29,5	11	10	3	on request
06760-24008	K	M8	40,5	15	12	27,5	11	14	3	on request
06760-25208	K	M8	50	20,5	14,5	32,5	11	14	2,5	on request
06760-25210	K	M10	50	20,5	14,5	32,5	11	13	2,5	on request
06760-26010	K	M10	59	23	24	40	15	14	4	on request
06760-26012	K	M12	59	23	24	40	15	18	4	on request

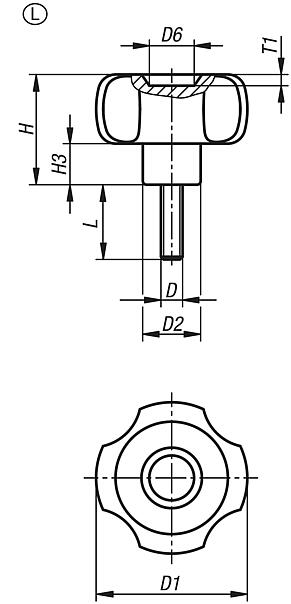

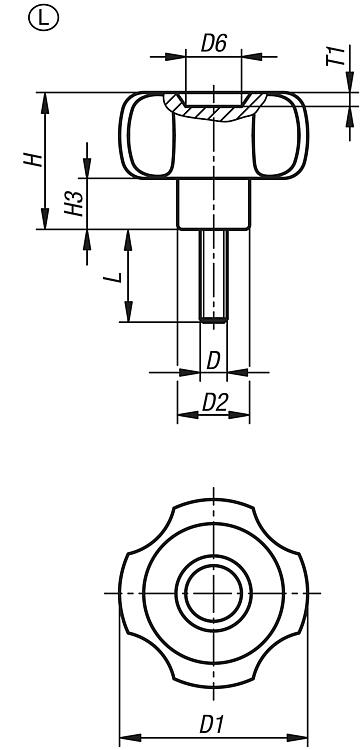

Four lobe grips with external thread

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D6	H	H3	T1	L	Price
06760-43006X16	L	M6	30	15	12	23	9,5	2	16	on request
06760-43006X20	L	M6	30	15	12	23	9,5	2	20	on request
06760-43006X30	L	M6	30	15	12	23	9,5	2	30	on request
06760-43006X40	L	M6	30	15	12	23	9,5	2	40	on request
06760-43006X50	L	M6	30	15	12	23	9,5	2	50	on request
06760-44006X16	L	M6	40,5	15,5	12	29,5	11	3	16	on request
06760-44006X20	L	M6	40,5	15,5	12	29,5	11	3	20	on request
06760-44008X20	L	M8	40,5	15	12	29,5	11	3	20	on request
06760-44008X30	L	M8	40,5	15	12	29,5	11	3	30	on request
06760-44008X40	L	M8	40,5	15	12	29,5	11	3	40	on request
06760-45208X16	L	M8	50	20,5	14,5	32,5	11	2,5	16	on request
06760-45208X20	L	M8	50	20,5	14,5	32,5	11	2,5	20	on request
06760-45208X30	L	M8	50	20,5	14,5	32,5	11	2,5	30	on request
06760-45208X40	L	M8	50	20,5	14,5	32,5	11	2,5	40	on request
06760-45208X50	L	M8	50	20,5	14,5	32,5	11	2,5	50	on request
06760-46010X20	L	M10	59	23	24	40	15	4	20	on request
06760-46010X30	L	M10	59	23	24	40	15	4	30	on request
06760-46010X40	L	M10	59	23	24	40	15	4	40	on request
06760-46010X50	L	M10	59	23	24	40	15	4	50	on request
06760-46012X50	L	M12	59	23	24	40	15	4	50	on request
06760-48010X30	L	M10	79	30	21	41	17	3	30	on request
06760-48010X50	L	M10	79	30	21	41	17	3	50	on request
06760-48012X50	L	M12	79	30	21	41	17	3	50	on request
