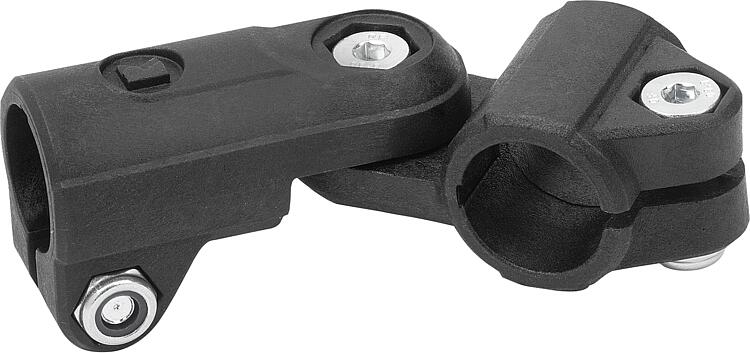

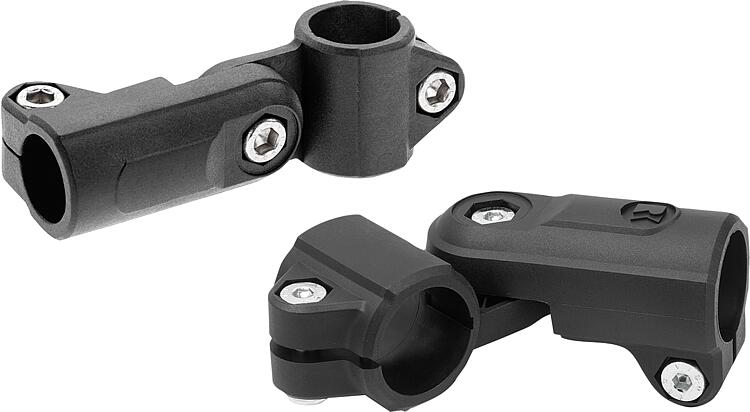

29032Tube clamp joint, plastic, T-piece, for round tubes |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Thermoplastic.
DIN 7984 screws and DIN 985 nuts steel.Version:Black.
Screws and nuts galvanised.Note:Form A: without toothing, infinitely adjustable through 180°.
Form B: with toothing, indexible in 15° steps and adjustable through 180°
The standard size for round tubes is Ø18 mm or Ø30 mm. Use reducer sleeves 29042 if smaller tubes are to be clamped or a conversion from round to square tubes is required.On request:Plastic clamping levers for tightening.Accessory:- Reducing bushes 29042
- Round and square tubes 29050Note:Tightening torque for clamping screws:
M6: 10 Nm
M8: 25 Nm
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

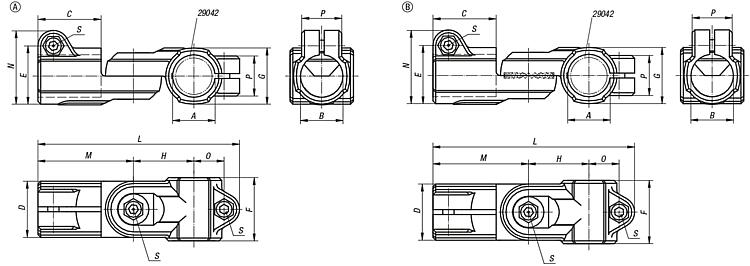

Drawings (total overview) |
|

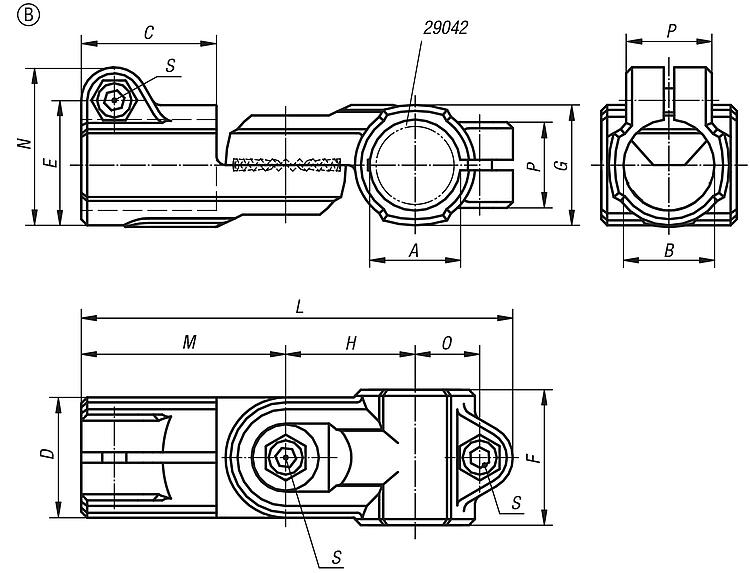

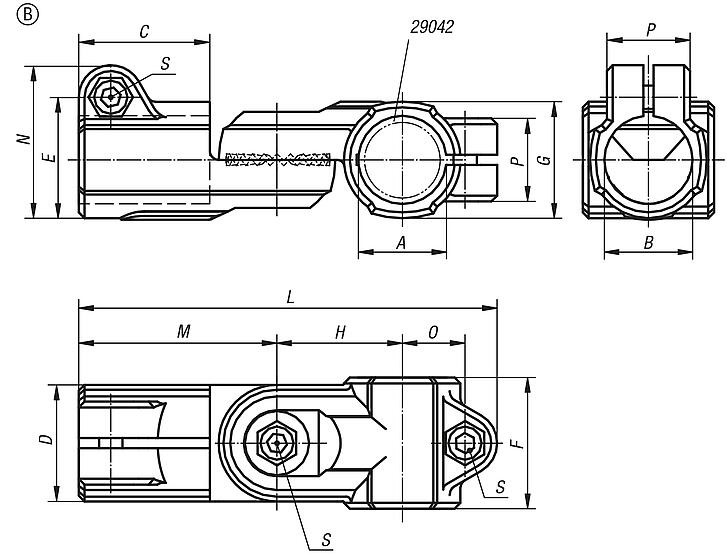

Tube clamp joints, plastic, T-angle, for round tubes, Form B with toothing |
More information |
| Order No. | Form | Product type | A | B | C | D | E | F | G | H | L | M | N | O | P | S | CAD | Acc. | Price | Order |
|---|
| 29032-118 | B | with toothing | 18 | 18 | 30 | 25 | 26,5 | 30 | 25 | 27,5 | 94 | 45 | 34 | 14 | 21 | M6x18 |  | | on request | | | 29032-130 | B | with toothing | 30 | 30 | 45 | 40 | 41,5 | 45 | 40 | 43 | 143,5 | 68 | 52,5 | 22,5 | 28,5 | M8x25 | | | on request | |
|
