24071Pedestal bearing, aluminum |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:These pedestal bearings made of extruded aluminum profile have six mounting holes and meet all the requirements placed on a housing.Material:Aluminium.Note:All linear ball bearings with standard installation heights can be combined with the pedestal bearings.Accessory:Linear plain bearing 21495-01.
Linear ball bearing with plastic cage 21500.
Linear ball bearing with steel cage 21505.
Stainless steel linear ball bearing 21505-01.
Linear ball bearing, self-aligning 21510.
Linear ball bearing, self-aligning, high load rating 21515.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

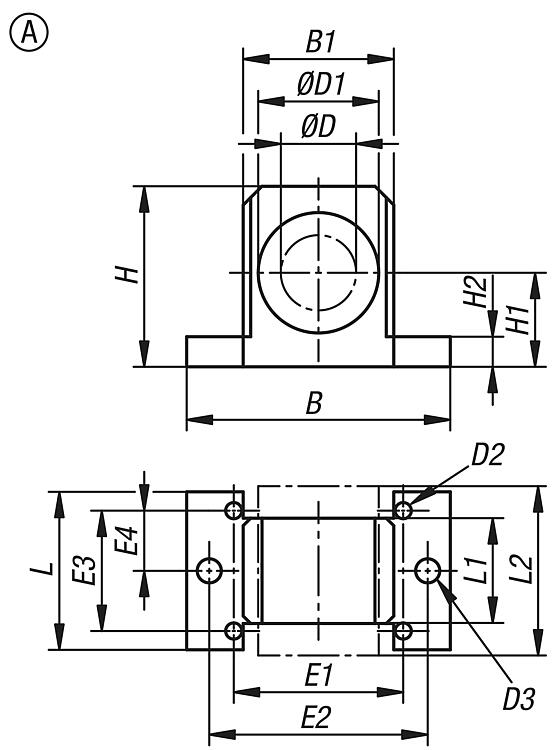

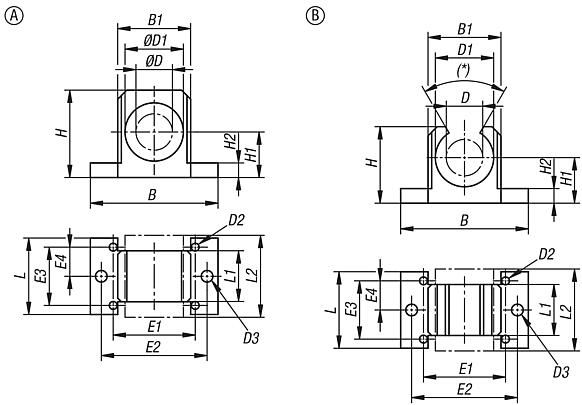

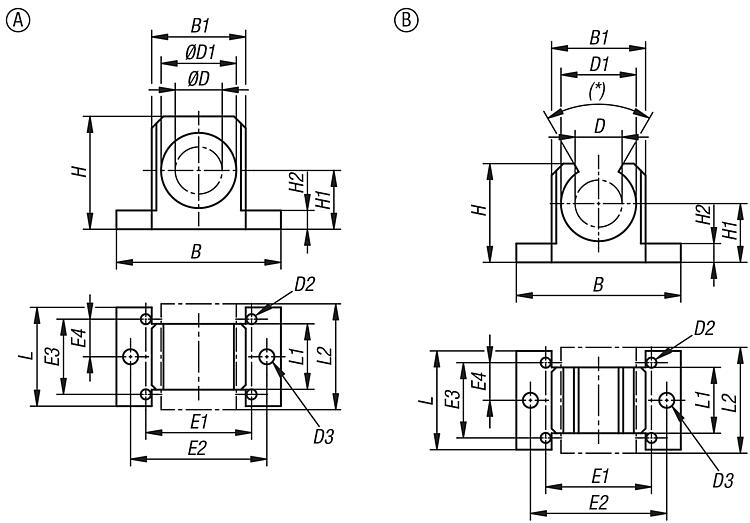

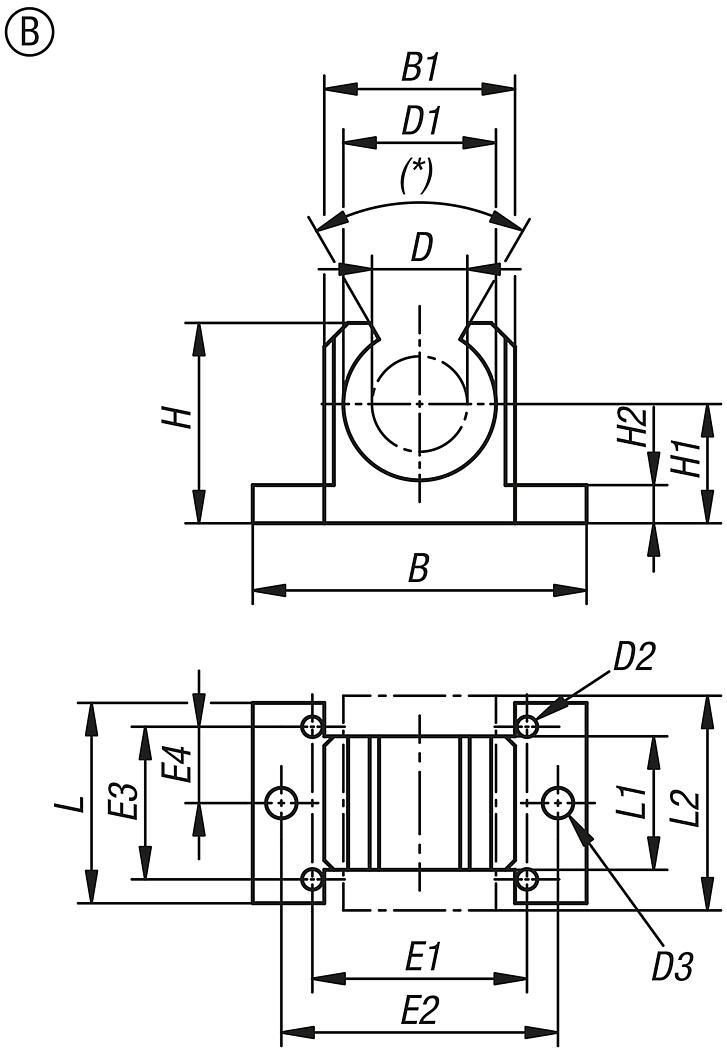

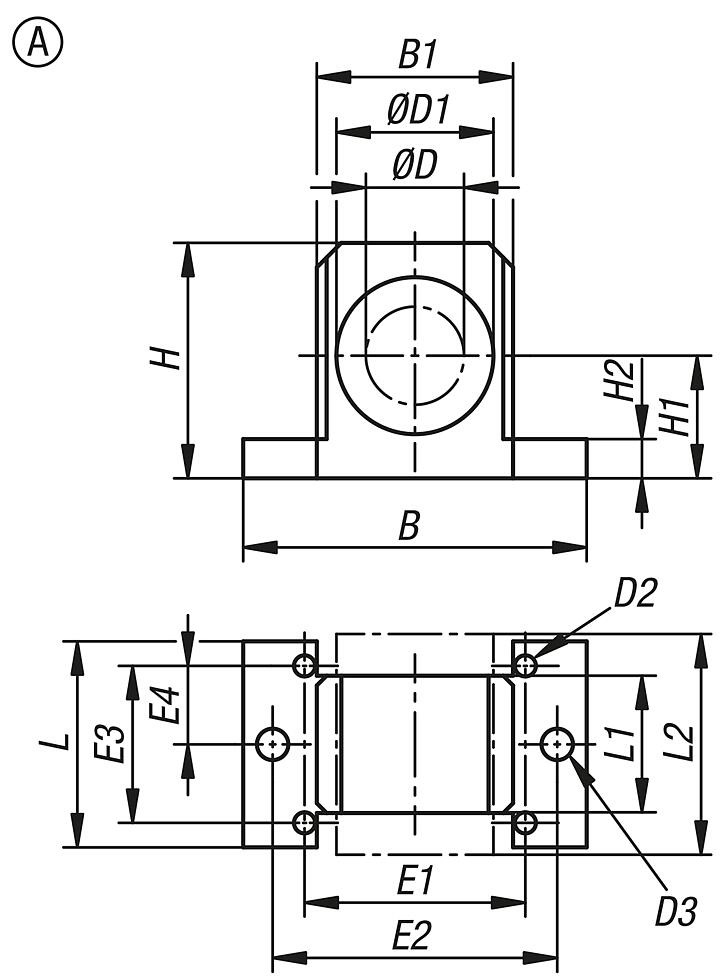

Drawings (total overview) |
| Order No. | Version 1 | Form | B
| B1 | D | D1 | D2 | D3 | E1 | E2 | E3 | E4 | H | H1 | H2 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| 24071-012 | closed | A | 52 | 30 | 12 | 22 | 4,3 | 5,3 | 32 | 42 | 23 | 11,5 | 35 | 18 | 6 | 32 | 20 | 32 |  | | on request | |
|
| Order No. | Version 1 | Form | B
| B1 | D | D1 | D2 | D3 | E1 | E2 | E3 | E4 | H | H1 | H2 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|
|
