42751-20UNILOCK clamping bracket for UNILOCK clamping station |
go back |
|
Item description/product images |
|
|

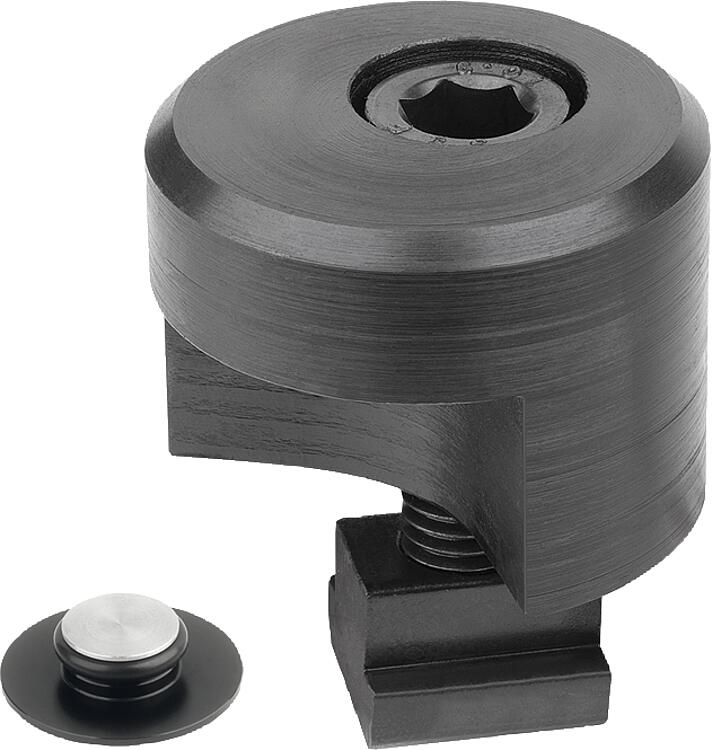

DescriptionMaterial:Carbon steel.Version:Body black oxidised.Note:The UNILOCK clamping brackets are used for rapid fastening of the clamping stations on all conventional machine tables.

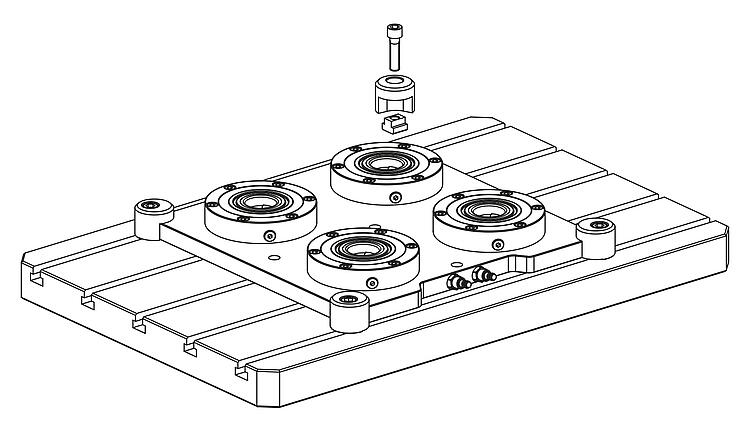

The clamping brackets can be attached to the sides of the clamping stations or to the four rounded corners.Advantages:Rapid fastening of the UNILOCK clamping stations via adapted clamping brackets.
No fastening holes drilled through the clamping stations required.
Low, flat design eliminates protruding edges.
No swarf deposits due to the enclosed form of the clamping bracket.
The supplied screw head caps prevent the accumulation of swarf and coolants.Supplied withClamping bracket
Cap for cap screw heads
Cap screw
T-slot nut (M12 = slot width 14 mm, M16 = slot width 18 mm) DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

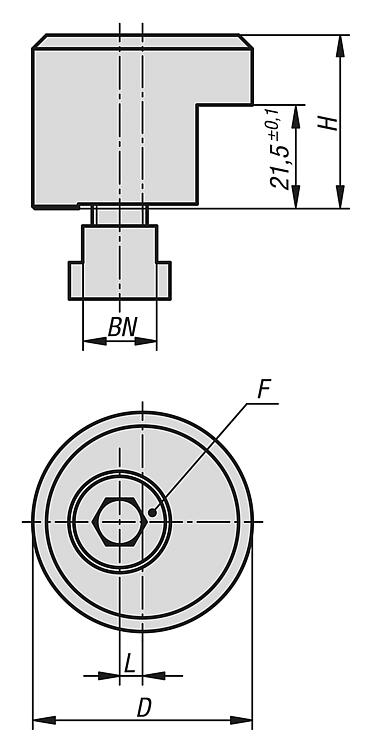

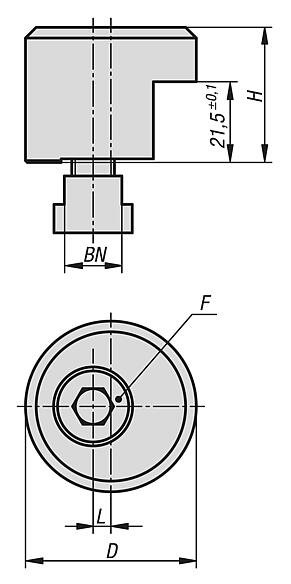

| Order No. | D
| H | L | BN=Slot width | F
hole for
ISO 4762 cap screw | CAD | Acc. | Price | Order |
|---|
| 42751-20-482212 | 48 | 38 | 6 | 14 | M12 | | | on request | | | 42751-20-482216 | 48 | 38 | 6 | 18 | M16 | | | on request | |
