03179Collets for external or internal clamping |
go back |
|
Item description/product images |
|
|

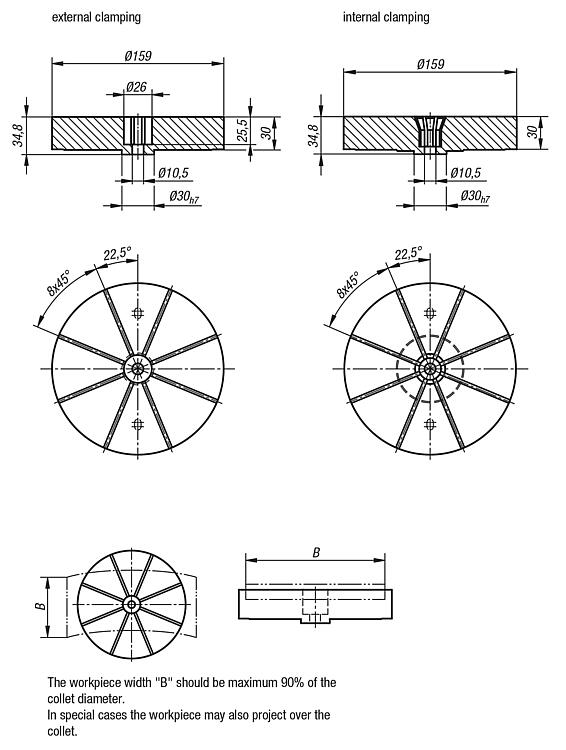

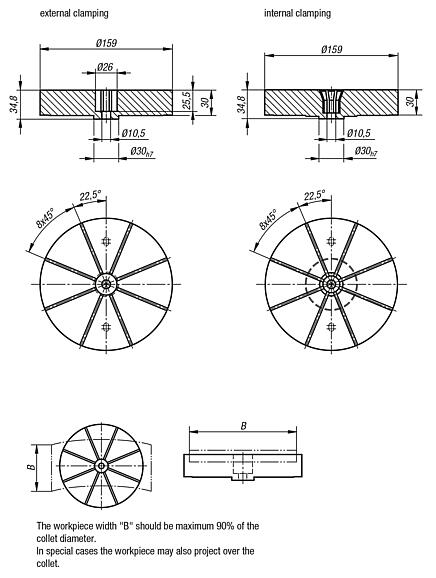

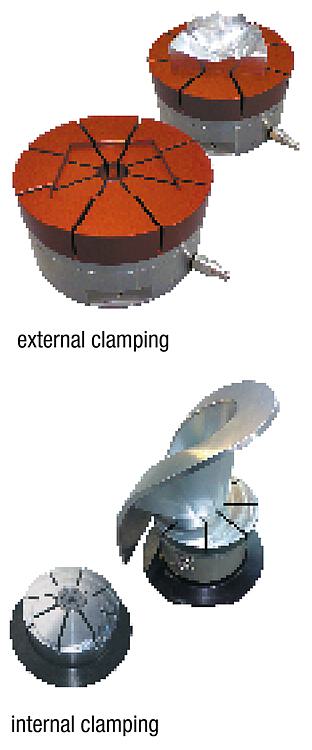

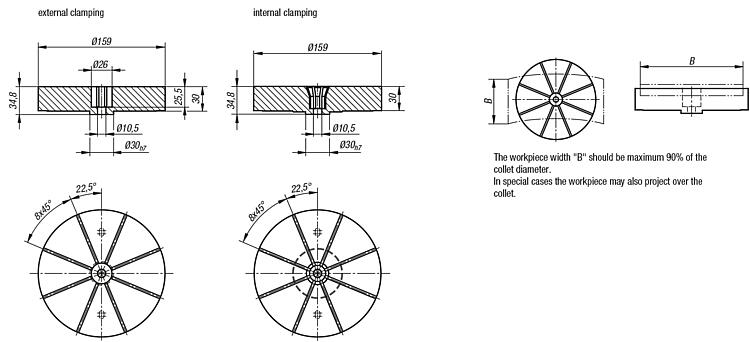

DescriptionMaterial, version:High-strength aluminium, red (external clamping) or clear (internal clamping), anodised.Note:Collet for clamping external or internal contours. The contour of the workpiece to be clamped is imparted to the collet. Free-form surfaces and asymmetrical contours are possible.
Clamping range 0.2 mm.
Tension cone 03179-1024 is required for the collet version for internal clamping.Accessory:Tension cone 03179-1024Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Version 2 | Clamping range
min. - max. | Milling depth
min./max. | Workpiece weight
max. (kg) | CAD | Acc. | Price | Order |
|---|
