        Clamping levers with internal thread and collar for Hygienic USIT® sealing and shim washer Freudenberg Process Seals

Item description/product images

DescriptionMaterial:

Metal parts stainless steel 1.4404.
Shaft seal 75 EPDM 295.

Version:High-gloss polished.Note:

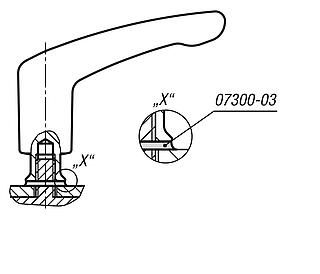

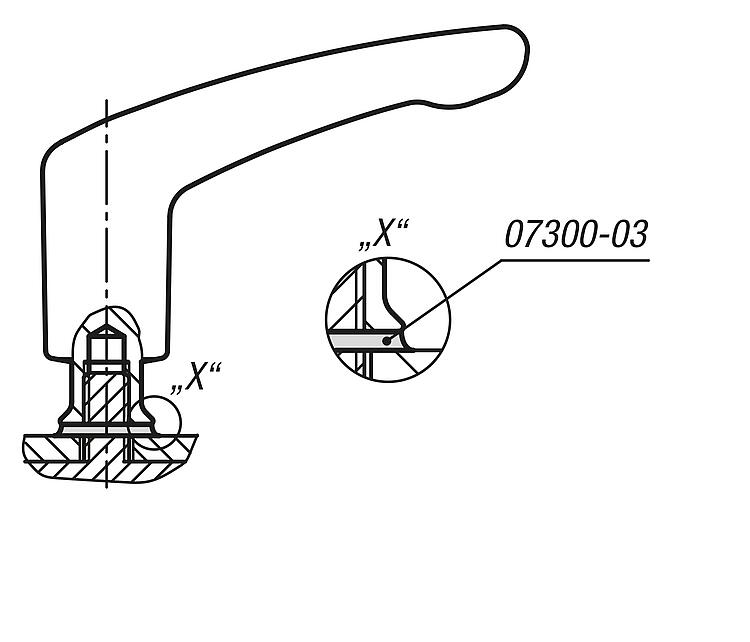

Clamping lever designed for the hygienic sector. The completely closed grip part and the shaft seal prevent contamination of the lever internal workings. Additionally, the screw insert has a conical collar so that the fastening point can be hygienically sealed with the Hygienic USIT^® sealing and shim washer.

Due to the extremely high surface finish quality of much less than Ra 0.8 µm, hardly any dirt particles adhere to the surface. The highly polished surfaces enable easy cleaning.

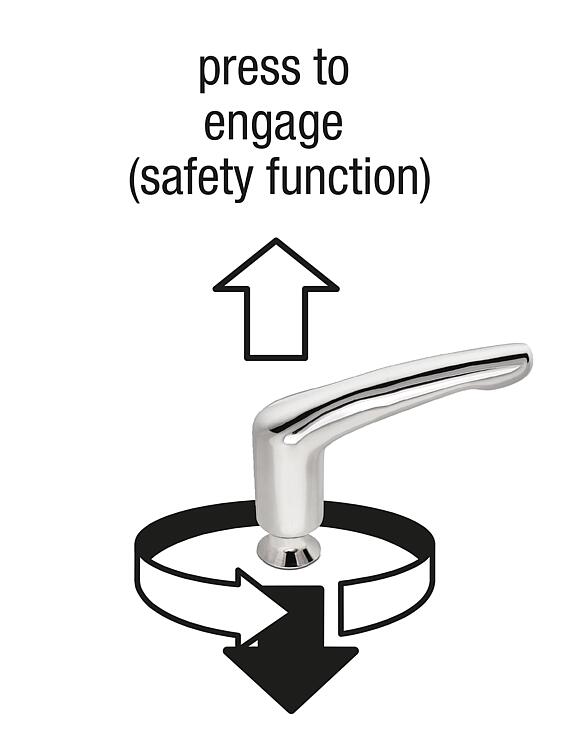

At rest, the lever is freely rotatable. Unintended opening of the lever is excluded. The toothing is protected against high wear for mounting on vibrating elements.

On request:Other thread depths and inch threads.Accessory:

Hygienic USIT^® sealing and shim washer 07300-03.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06454-02 Clamping levers with internal thread and collar for Hygienic USIT® sealing and shim washer Freudenberg Process Seals

265 kB

Hygienic USIT® Technical Information

397 kB

ORIGINAL OPERATING INSTRUCTIONS

271 kB

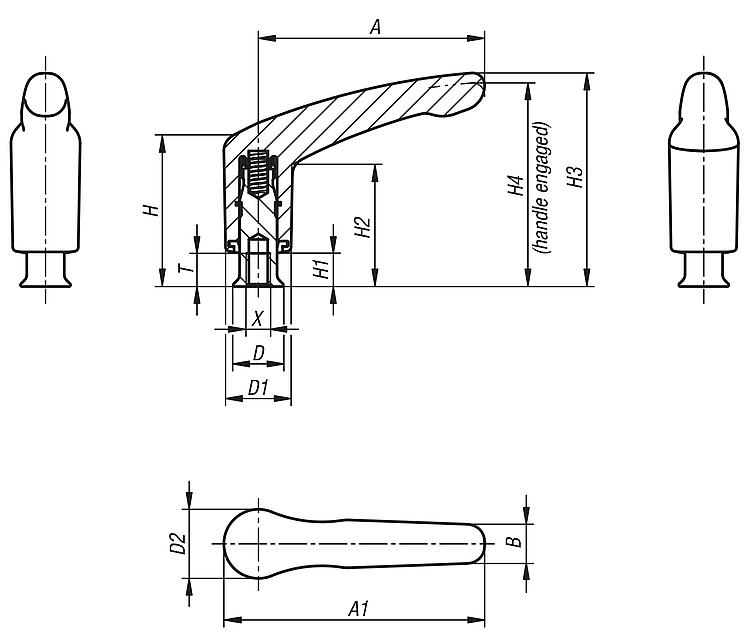

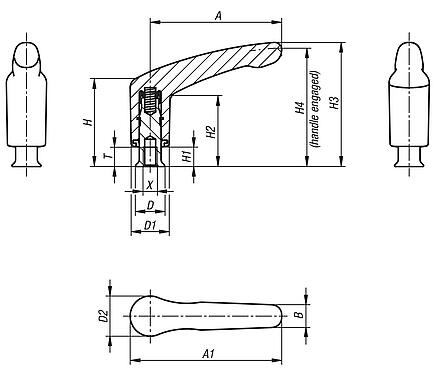

Drawings

Item selection/filter

Order No.	X	T	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	Price
06454-02-106	M6	10	14,2	21	21,7	36,7	8,8	27	50,6	47,6	47,4	58,2	11,8	16	on request
06454-02-206	M6	10	14,2	21	22,1	45,7	10,7	36,8	64,1	61,1	66,5	77,5	13	16	on request
06454-02-208	M8	14	18	21	22,1	45,7	10,7	36,8	64,1	61,1	66,5	77,5	13	16	on request
06454-02-308	M8	12	18	23,6	24,9	54,7	12,1	44	77	73,5	81,5	94	14,2	20	on request
06454-02-310	M10	15	22,3	23,6	24,9	54,7	12,1	44	77	73,5	81,5	94	14,2	20	on request
06454-02-312	M12	19	26,6	23,6	24,9	54,7	12,1	44	77	73,5	81,5	94	14,2	20	on request
