        Clamping levers, plastic, ergonomic, with external thread, threaded pin stainless steel

Item description/product images

DescriptionMaterial:Version:Steel parts bright.Note:The colour combinations
graphite black RAL 9011 (hard components) and
black grey RAL 7021 (soft components) are supplied as standard.

The soft components ensure a non-slip grip of the operating part. The closed design offers sufficient protection against dirt. The design was especially developed for ergonomic gripping requirements.

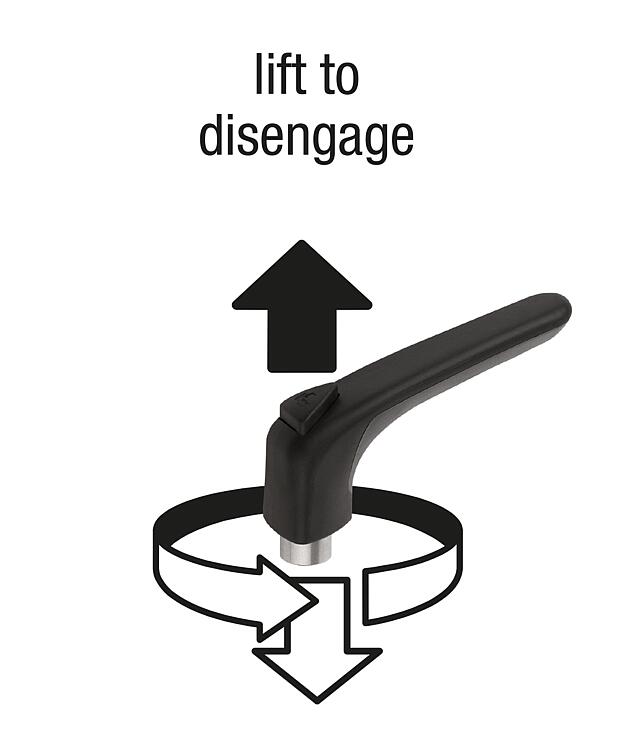

The push button improves disengagement and allows the handle to be easily used.

Where L ≥ 60 mm the thread length is 60 mm.On request:Other male threads, screw lengths, colour combinations and special versions.
Dimension “H1” available in other lengths on request at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06581 Clamping levers, plastic, ergonomic, with external thread, threaded pin stainless steel

303 kB

Datasheet 06591 Clamping levers, plastic, ergonomic, with external thread, threaded pin stainless steel

169 kB

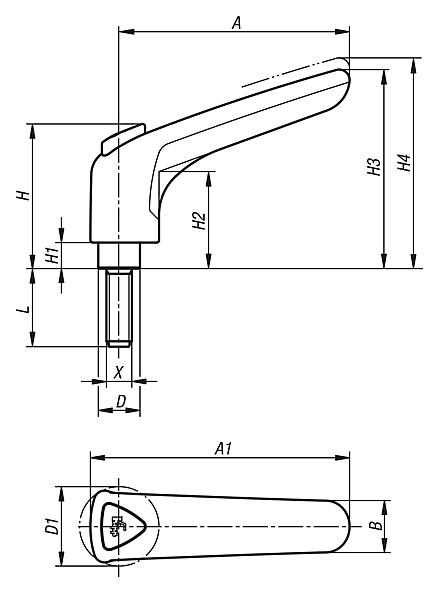

Drawings

Item selection/filter

Order No.	X	D	D1	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	Price
06591-3081X20	M8	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	20	on request
06591-3081X25	M8	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	25	on request
06591-3081X30	M8	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	30	on request
06591-3081X40	M8	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	40	on request
06591-3081X50	M8	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	50	on request
06591-3081X60	M8	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	60	on request
06591-3101X20	M10	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	20	on request
06591-3101X25	M10	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	25	on request
06591-3101X30	M10	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	30	on request
06591-3101X40	M10	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	40	on request
06591-3101X50	M10	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	50	on request
06591-3101X60	M10	16	30,5	55,6	10	37,3	76,5	81	88,5	99,5	20	22	60	on request
