        Pull handles

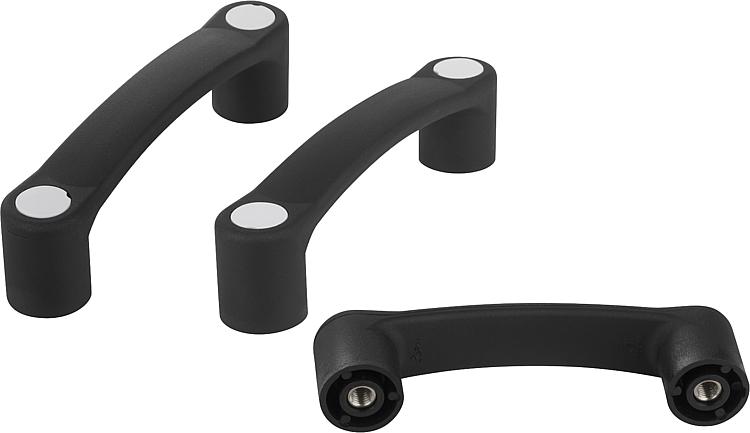

Item description/product images

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Tapped bush brass.Version:Black.
Cap grey.Assembly:Form A from the rear.
Form B from the front.On request:Other handle or cap colours.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06902-01 Pull handles

122 kB

Drawings (total overview)

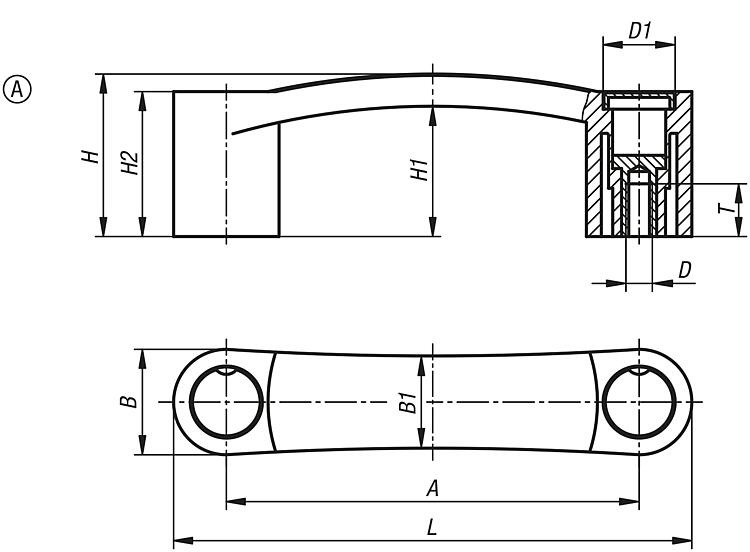

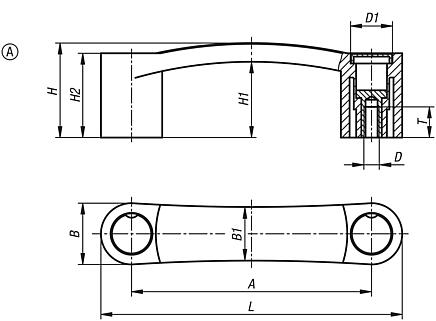

Pull handles, Form A

More information

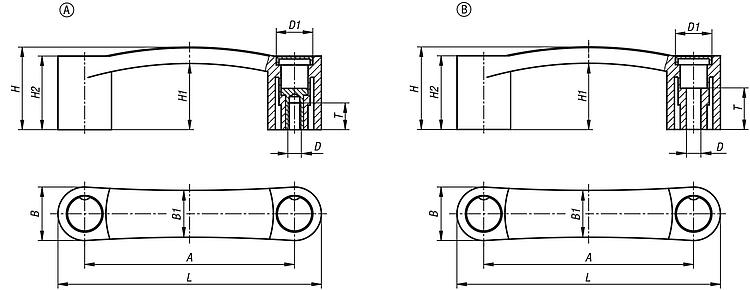

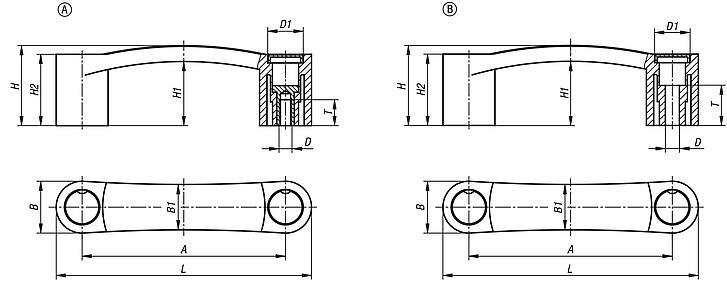

Drawings

Item selection/filter

Order No.	Version 1	Form	A	B	B1	D	D1	H	H1	H2	L	T	Load capacity N	Price
06902-01-109406	Internal thread	A	94	24	21	M6	16	37	30	33	118	12	2000	on request
06902-01-111706	Internal thread	A	117	28	24	M6	18	40,5	31,5	34	145	12	3400	on request
06902-01-111708	Internal thread	A	117	28	24	M8	18	40,5	31,5	34	145	12	3400	on request
06902-01-112006	Internal thread	A	120	28	24	M6	18	40,5	31,5	34	148	12	3500	on request
06902-01-112008	Internal thread	A	120	28	24	M8	18	40,5	31,5	34	148	12	3500	on request
06902-01-113208	Internal thread	A	132	28	24	M8	18	43	34	36,5	160	12	3500	on request

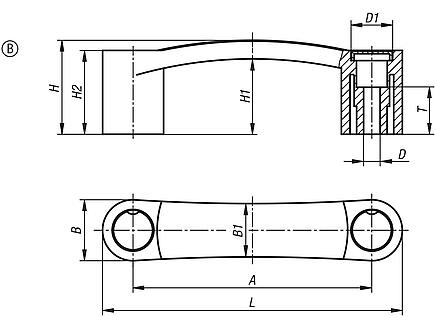

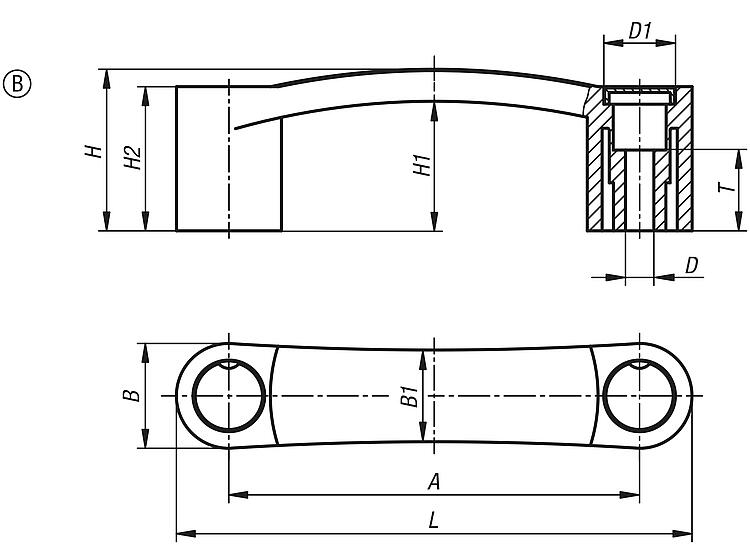

Pull handles, Form B

More information

Drawings

Item selection/filter

Order No.	Version 1	Form	A	B	B1	D	D1	H	H1	H2	L	T	Load capacity N	Price
06902-01-209406	with through hole	B	94	24	21	6,5	16	37	30	33	118	14	2500	on request
06902-01-211706	with through hole	B	117	28	24	6,5	18	40,5	31,5	34	145	15	3700	on request
06902-01-211708	with through hole	B	117	28	24	8,5	18	40,5	31,5	34	145	15	3700	on request
06902-01-212006	with through hole	B	120	28	24	6,5	18	40,5	31,5	34	148	15	2900	on request
06902-01-212008	with through hole	B	120	28	24	8,5	18	40,5	31,5	34	148	15	2900	on request
06902-01-213208	with through hole	B	132	28	24	8,5	18	43	34	36,5	160	15	3200	on request
