Pull handles, Form A

06902-01_A

Pull handles, Form A

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Pull handles
        Pull handles, Form A

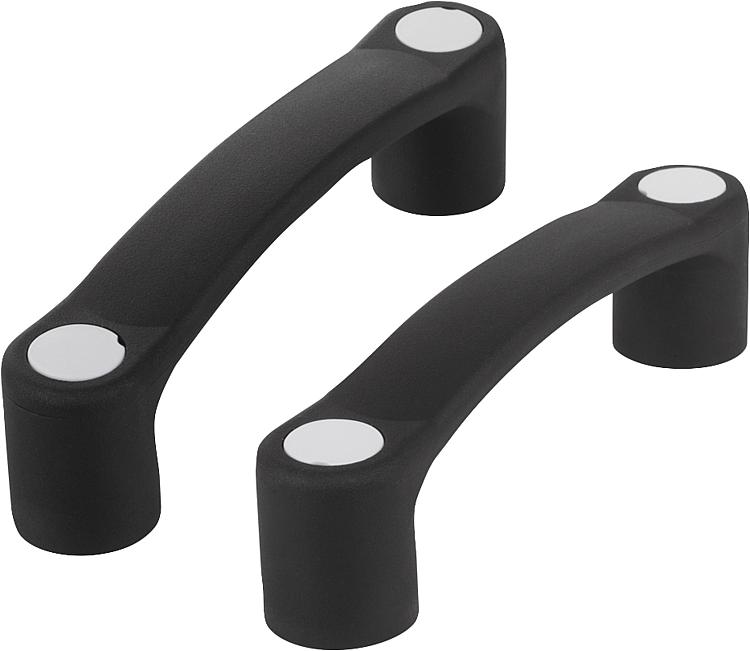

Item description/product images

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Tapped bush brass.Version:Black.
Cap grey.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06902-01_A Pull handles, Form A

Drawings

Pull handles, Form A

Item selection/filter

Order No.	Version 1	Form	A	B	B1	D	D1	H	H1	H2	L	T	Load capacity N	CAD	Acc.	Price	Order
06902-01-109406	Internal thread	A	94	24	21	M6	16	37	30	33	118	12	2000			on request
06902-01-111706	Internal thread	A	117	28	24	M6	18	40,5	31,5	34	145	12	3400			on request
06902-01-111708	Internal thread	A	117	28	24	M8	18	40,5	31,5	34	145	12	3400			on request
06902-01-112006	Internal thread	A	120	28	24	M6	18	40,5	31,5	34	148	12	3500			on request
06902-01-112008	Internal thread	A	120	28	24	M8	18	40,5	31,5	34	148	12	3500			on request
06902-01-113208	Internal thread	A	132	28	24	M8	18	43	34	36,5	160	12	3500			on request
