06965-02

Recessed handles, plastic

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Recessed handles, plastic

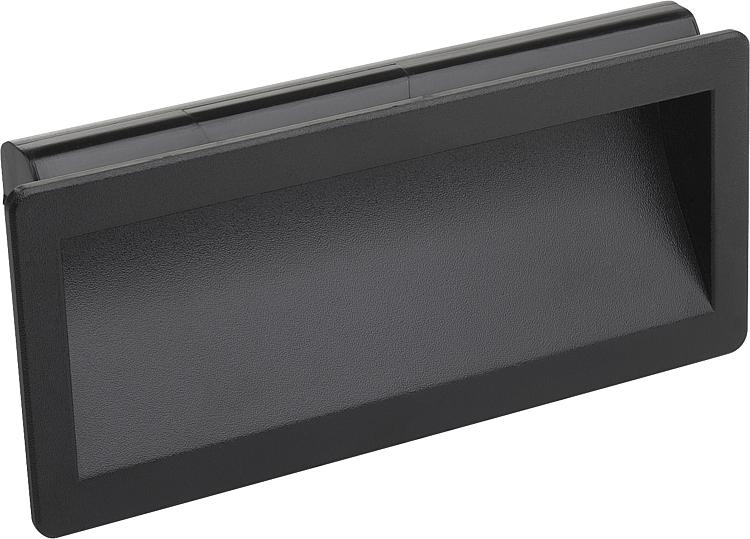

Item description/product images

DescriptionMaterial:Thermoplastic (ABS).Version:black.Note:This handle can be used with a wall thickness of 1.5 to 2 mm.
The retaining force is 750 N per pair in steel and plate housings.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06965-02 Recessed handles, plastic

182 kB

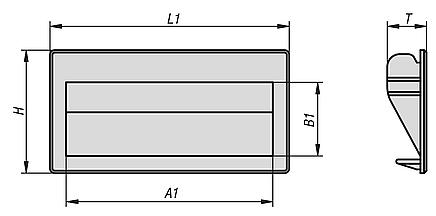

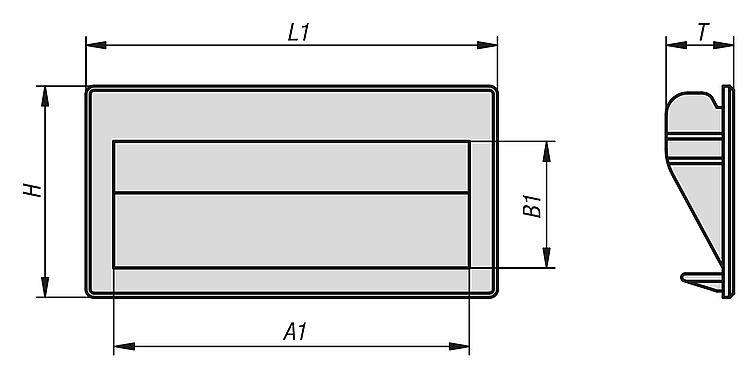

Drawings

Item selection/filter

Order No.	Version 2	A1	B1	H	L1	T	Mounting cutout	Load capacity N	CAD	Acc.	Price	Order
06965-02-1871	plug-in	164	54	79	187	22	171 x 73	375			on request
