        Screws with flattened pan head and hexalobular socket, similar to DIN 34805

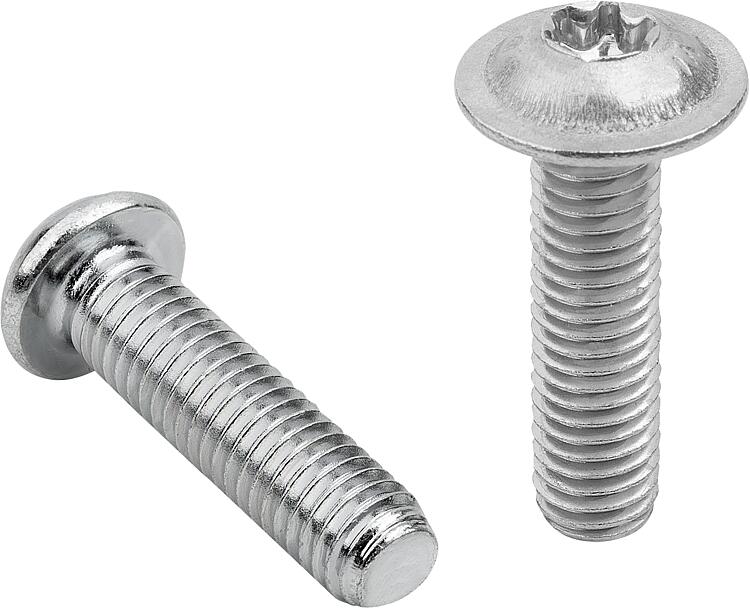

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 10.9, electro zinc-plated.
Stainless steel A2-70, brightNote:DIN 34805-1 - Form A: Screws with flattened pan head and hexalobular socket.
DIN 34805-2 - Form B: Screws with flattened pan head, collar and hexalobular socket.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07174-02 Screws with flattened pan head and hexalobular socket, similar to DIN 34805

202 kB

Overview of standards for fasteners

763 kB

Grades

124 kB

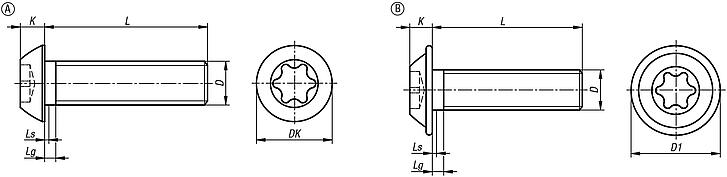

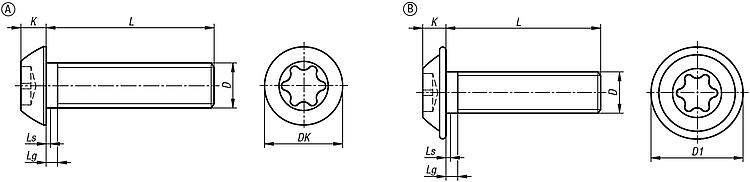

Drawings (total overview)

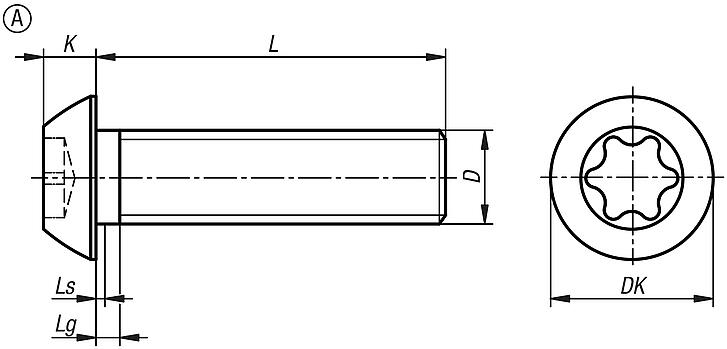

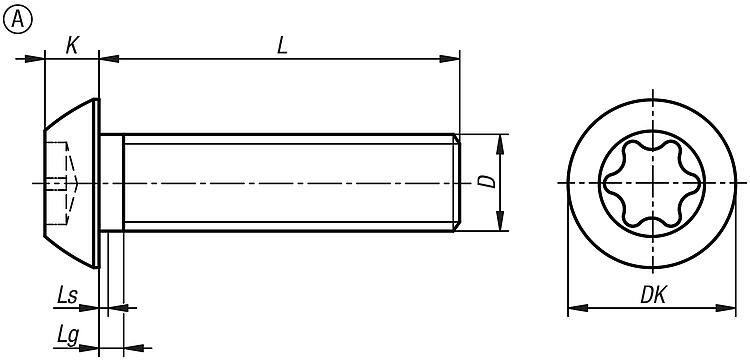

Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form A

More information

Drawings

Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form A

Item selection/filter

Order No.	Form	Main material	D	DK	Grade	K	L	Lg max.	TX=Internal drive	Price
07174-02-1504X08	A	steel	M4	7,6	10.9	2,45	8	2,1	20	on request
07174-02-1504X10	A	steel	M4	7,6	10.9	2,45	10	2,1	20	on request
07174-02-1504X12	A	steel	M4	7,6	10.9	2,45	12	2,1	20	on request
07174-02-1504X16	A	steel	M4	7,6	10.9	2,45	16	2,1	20	on request
07174-02-1504X20	A	steel	M4	7,6	10.9	2,45	20	2,1	20	on request
07174-02-1505X10	A	steel	M5	9,5	10.9	3	10	2,4	25	on request
07174-02-1505X12	A	steel	M5	9,5	10.9	3	12	2,4	25	on request
07174-02-1505X16	A	steel	M5	9,5	10.9	3	16	2,4	25	on request
07174-02-1505X20	A	steel	M5	9,5	10.9	3	20	2,4	25	on request
07174-02-1505X25	A	steel	M5	9,5	10.9	3	25	2,4	25	on request
07174-02-1506X16	A	steel	M6	10,5	10.9	3,3	16	3	30	on request
07174-02-1506X20	A	steel	M6	10,5	10.9	3,3	20	3	30	on request
07174-02-1506X25	A	steel	M6	10,5	10.9	3,3	25	3	30	on request
07174-02-1508X12	A	steel	M8	14	10.9	4,5	12	3,75	40	on request
07174-02-1508X16	A	steel	M8	14	10.9	4,5	16	3,75	40	on request
07174-02-1508X20	A	steel	M8	14	10.9	4,5	20	3,75	40	on request
07174-02-1508X25	A	steel	M8	14	10.9	4,5	25	3,75	40	on request
07174-02-1508X30	A	steel	M8	14	10.9	4,5	30	3,75	40	on request
07174-02-1104X08	A	stainless steel A2	M4	7,6	70	2,45	8	2,1	20	on request
07174-02-1104X10	A	stainless steel A2	M4	7,6	70	2,45	10	2,1	20	on request
07174-02-1104X12	A	stainless steel A2	M4	7,6	70	2,45	12	2,1	20	on request
07174-02-1104X16	A	stainless steel A2	M4	7,6	70	2,45	16	2,1	20	on request
07174-02-1104X20	A	stainless steel A2	M4	7,6	70	2,45	20	2,1	20	on request
07174-02-1105X08	A	stainless steel A2	M5	9,5	70	3	8	2,4	25	on request
07174-02-1105X10	A	stainless steel A2	M5	9,5	70	3	10	2,4	25	on request
07174-02-1105X12	A	stainless steel A2	M5	9,5	70	3	12	2,4	25	on request
07174-02-1105X16	A	stainless steel A2	M5	9,5	70	3	16	2,4	25	on request
07174-02-1105X20	A	stainless steel A2	M5	9,5	70	3	20	2,4	25	on request
07174-02-1105X25	A	stainless steel A2	M5	9,5	70	3	25	2,4	25	on request
07174-02-1106X08	A	stainless steel A2	M6	10,5	70	3,3	8	3	30	on request
07174-02-1106X10	A	stainless steel A2	M6	10,5	70	3,3	10	3	30	on request
07174-02-1106X12	A	stainless steel A2	M6	10,5	70	3,3	12	3	30	on request
07174-02-1106X16	A	stainless steel A2	M6	10,5	70	3,3	16	3	30	on request
07174-02-1106X20	A	stainless steel A2	M6	10,5	70	3,3	20	3	30	on request
07174-02-1106X25	A	stainless steel A2	M6	10,5	70	3,3	25	3	30	on request
07174-02-1106X30	A	stainless steel A2	M6	10,5	70	3,3	30	3	30	on request
07174-02-1108X12	A	stainless steel A2	M8	14	70	4,5	12	3,75	40	on request
07174-02-1108X16	A	stainless steel A2	M8	14	70	4,5	16	3,75	40	on request
07174-02-1108X20	A	stainless steel A2	M8	14	70	4,5	20	3,75	40	on request
07174-02-1108X25	A	stainless steel A2	M8	14	70	4,5	25	3,75	40	on request
07174-02-1108X30	A	stainless steel A2	M8	14	70	4,5	30	3,75	40	on request

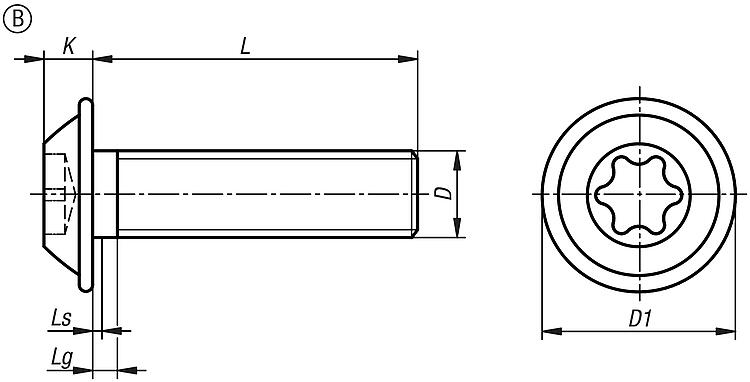

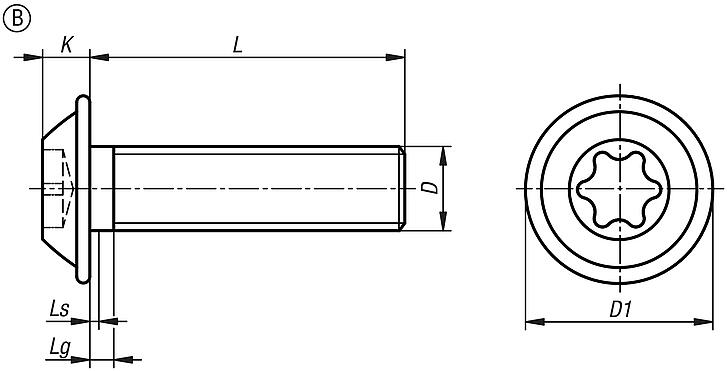

Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form B

More information

Drawings

Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form B

Item selection/filter

Order No.	Form	Main material	D	D1	Grade	K	L	Lg max.	TX=Internal drive	Price
07174-02-2504X08	B	steel	M4	9,4	10.9	2,45	8	2,1	20	on request
07174-02-2504X10	B	steel	M4	9,4	10.9	2,45	10	2,1	20	on request
07174-02-2504X12	B	steel	M4	9,4	10.9	2,45	12	2,1	20	on request
07174-02-2504X16	B	steel	M4	9,4	10.9	2,45	16	2,1	20	on request
07174-02-2504X20	B	steel	M4	9,4	10.9	2,45	20	2,1	20	on request
07174-02-2505X08	B	steel	M5	11,8	10.9	3	8	2,4	25	on request
07174-02-2505X10	B	steel	M5	11,8	10.9	3	10	2,4	25	on request
07174-02-2505X12	B	steel	M5	11,8	10.9	3	12	2,4	25	on request
07174-02-2505X16	B	steel	M5	11,8	10.9	3	16	2,4	25	on request
07174-02-2505X20	B	steel	M5	11,8	10.9	3	20	2,4	25	on request
07174-02-2505X25	B	steel	M5	11,8	10.9	3	25	2,4	25	on request
07174-02-2506X10	B	steel	M6	13,6	10.9	3,3	10	3	30	on request
07174-02-2506X12	B	steel	M6	13,6	10.9	3,3	12	3	30	on request
07174-02-2506X16	B	steel	M6	13,6	10.9	3,3	16	3	30	on request
07174-02-2506X20	B	steel	M6	13,6	10.9	3,3	20	3	30	on request
07174-02-2506X25	B	steel	M6	13,6	10.9	3,3	25	3	30	on request
07174-02-2506X30	B	steel	M6	13,6	10.9	3,3	30	3	30	on request
07174-02-2508X12	B	steel	M8	17,8	10.9	4,5	12	3,75	40	on request
07174-02-2508X16	B	steel	M8	17,8	10.9	4,5	16	3,75	40	on request
07174-02-2508X20	B	steel	M8	17,8	10.9	4,5	20	3,75	40	on request
07174-02-2508X25	B	steel	M8	17,8	10.9	4,5	25	3,75	40	on request
07174-02-2508X30	B	steel	M8	17,8	10.9	4,5	30	3,75	40	on request
07174-02-2104X08	B	stainless steel A2	M4	9,4	70	2,45	8	2,1	20	on request
07174-02-2104X10	B	stainless steel A2	M4	9,4	70	2,45	10	2,1	20	on request
07174-02-2104X12	B	stainless steel A2	M4	9,4	70	2,45	12	2,1	20	on request
07174-02-2104X16	B	stainless steel A2	M4	9,4	70	2,45	16	2,1	20	on request
07174-02-2104X20	B	stainless steel A2	M4	9,4	70	2,45	20	2,1	20	on request
07174-02-2105X08	B	stainless steel A2	M5	11,8	70	3	8	2,4	25	on request
07174-02-2105X10	B	stainless steel A2	M5	11,8	70	3	10	2,4	25	on request
07174-02-2105X12	B	stainless steel A2	M5	11,8	70	3	12	2,4	25	on request
07174-02-2105X16	B	stainless steel A2	M5	11,8	70	3	16	2,4	25	on request
07174-02-2105X20	B	stainless steel A2	M5	11,8	70	3	20	2,4	25	on request
07174-02-2105X25	B	stainless steel A2	M5	11,8	70	3	25	2,4	25	on request
07174-02-2106X08	B	stainless steel A2	M6	13,6	70	3,3	8	2,4	30	on request
07174-02-2106X10	B	stainless steel A2	M6	13,6	70	3,3	10	3	30	on request
07174-02-2106X12	B	stainless steel A2	M6	13,6	70	3,3	12	3	30	on request
07174-02-2106X16	B	stainless steel A2	M6	13,6	70	3,3	16	3	30	on request
07174-02-2106X20	B	stainless steel A2	M6	13,6	70	3,3	20	3	30	on request
07174-02-2106X25	B	stainless steel A2	M6	13,6	70	3,3	25	3	30	on request
07174-02-2106X30	B	stainless steel A2	M6	13,6	70	3,3	30	3	30	on request
07174-02-2108X12	B	stainless steel A2	M8	17,8	70	4,5	12	3,75	40	on request
07174-02-2108X16	B	stainless steel A2	M8	17,8	70	4,5	16	3,75	40	on request
07174-02-2108X20	B	stainless steel A2	M8	17,8	70	4,5	20	3,75	40	on request
07174-02-2108X25	B	stainless steel A2	M8	17,8	70	4,5	25	3,75	40	on request
07174-02-2108X30	B	stainless steel A2	M8	17,8	70	4,5	30	3,75	40	on request
