        Screws with flattened pan head and hexalobular socket, similar to DIN 34805

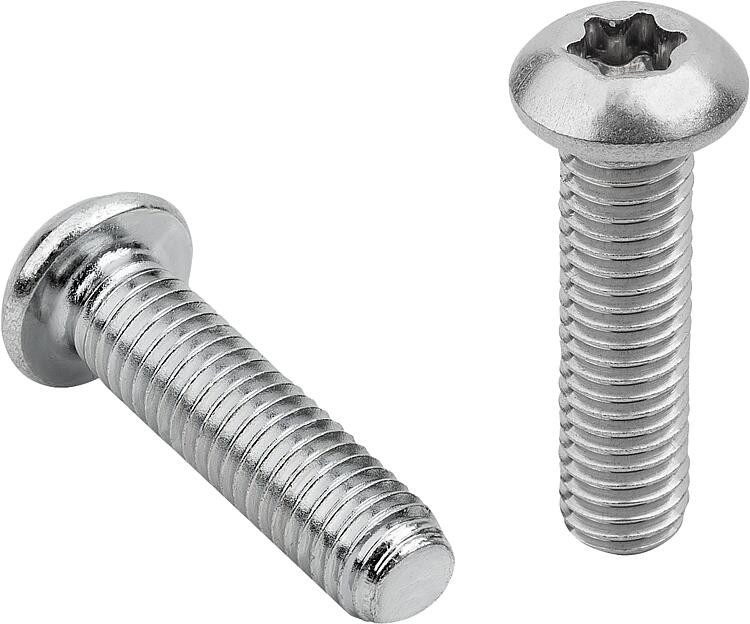

        Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form A

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 10.9, electro zinc-plated.
Stainless steel A2-70, brightNote:DIN 34805-1 - Form A: Screws with flattened pan head and hexalobular socket.
DIN 34805-2 - Form B: Screws with flattened pan head, collar and hexalobular socket.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07174-02_A Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form A

200 kB

Drawings

Item selection/filter

Order No.	Form	Main material	D	DK	Grade	K	L	Lg max.	TX=Internal drive	Price
07174-02-1504X08	A	steel	M4	7,6	10.9	2,45	8	2,1	20	on request
07174-02-1504X10	A	steel	M4	7,6	10.9	2,45	10	2,1	20	on request
07174-02-1504X12	A	steel	M4	7,6	10.9	2,45	12	2,1	20	on request
07174-02-1504X16	A	steel	M4	7,6	10.9	2,45	16	2,1	20	on request
07174-02-1504X20	A	steel	M4	7,6	10.9	2,45	20	2,1	20	on request
07174-02-1505X10	A	steel	M5	9,5	10.9	3	10	2,4	25	on request
07174-02-1505X12	A	steel	M5	9,5	10.9	3	12	2,4	25	on request
07174-02-1505X16	A	steel	M5	9,5	10.9	3	16	2,4	25	on request
07174-02-1505X20	A	steel	M5	9,5	10.9	3	20	2,4	25	on request
07174-02-1505X25	A	steel	M5	9,5	10.9	3	25	2,4	25	on request
07174-02-1506X16	A	steel	M6	10,5	10.9	3,3	16	3	30	on request
07174-02-1506X20	A	steel	M6	10,5	10.9	3,3	20	3	30	on request
07174-02-1506X25	A	steel	M6	10,5	10.9	3,3	25	3	30	on request
07174-02-1508X12	A	steel	M8	14	10.9	4,5	12	3,75	40	on request
07174-02-1508X16	A	steel	M8	14	10.9	4,5	16	3,75	40	on request
07174-02-1508X20	A	steel	M8	14	10.9	4,5	20	3,75	40	on request
07174-02-1508X25	A	steel	M8	14	10.9	4,5	25	3,75	40	on request
07174-02-1508X30	A	steel	M8	14	10.9	4,5	30	3,75	40	on request
07174-02-1104X08	A	stainless steel A2	M4	7,6	70	2,45	8	2,1	20	on request
07174-02-1104X10	A	stainless steel A2	M4	7,6	70	2,45	10	2,1	20	on request
07174-02-1104X12	A	stainless steel A2	M4	7,6	70	2,45	12	2,1	20	on request
07174-02-1104X16	A	stainless steel A2	M4	7,6	70	2,45	16	2,1	20	on request
07174-02-1104X20	A	stainless steel A2	M4	7,6	70	2,45	20	2,1	20	on request
07174-02-1105X08	A	stainless steel A2	M5	9,5	70	3	8	2,4	25	on request
07174-02-1105X10	A	stainless steel A2	M5	9,5	70	3	10	2,4	25	on request
07174-02-1105X12	A	stainless steel A2	M5	9,5	70	3	12	2,4	25	on request
07174-02-1105X16	A	stainless steel A2	M5	9,5	70	3	16	2,4	25	on request
07174-02-1105X20	A	stainless steel A2	M5	9,5	70	3	20	2,4	25	on request
07174-02-1105X25	A	stainless steel A2	M5	9,5	70	3	25	2,4	25	on request
07174-02-1106X08	A	stainless steel A2	M6	10,5	70	3,3	8	3	30	on request
07174-02-1106X10	A	stainless steel A2	M6	10,5	70	3,3	10	3	30	on request
07174-02-1106X12	A	stainless steel A2	M6	10,5	70	3,3	12	3	30	on request
07174-02-1106X16	A	stainless steel A2	M6	10,5	70	3,3	16	3	30	on request
07174-02-1106X20	A	stainless steel A2	M6	10,5	70	3,3	20	3	30	on request
07174-02-1106X25	A	stainless steel A2	M6	10,5	70	3,3	25	3	30	on request
07174-02-1106X30	A	stainless steel A2	M6	10,5	70	3,3	30	3	30	on request
07174-02-1108X12	A	stainless steel A2	M8	14	70	4,5	12	3,75	40	on request
07174-02-1108X16	A	stainless steel A2	M8	14	70	4,5	16	3,75	40	on request
07174-02-1108X20	A	stainless steel A2	M8	14	70	4,5	20	3,75	40	on request
07174-02-1108X25	A	stainless steel A2	M8	14	70	4,5	25	3,75	40	on request
07174-02-1108X30	A	stainless steel A2	M8	14	70	4,5	30	3,75	40	on request
