        Screws with flattened pan head and hexalobular socket, similar to DIN 34805

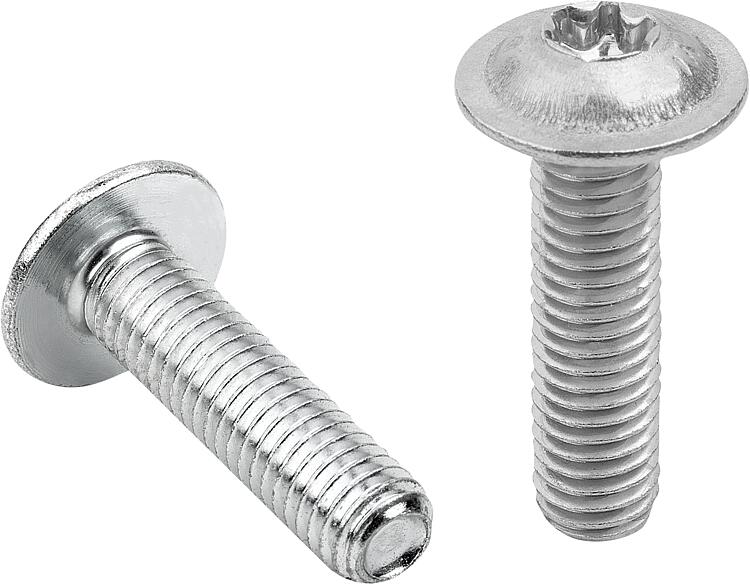

        Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form B

Item description/product images

DescriptionMaterial:Steel or stainless steel A2.Version:Steel grade 10.9, electro zinc-plated.
Stainless steel A2-70, brightNote:DIN 34805-1 - Form A: Screws with flattened pan head and hexalobular socket.
DIN 34805-2 - Form B: Screws with flattened pan head, collar and hexalobular socket.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07174-02_B Screws with flattened pan head and hexalobular socket similar to DIN 34805, Form B

204 kB

Drawings

Item selection/filter

Order No.	Form	Main material	D	D1	Grade	K	L	Lg max.	TX=Internal drive	Price
07174-02-2504X08	B	steel	M4	9,4	10.9	2,45	8	2,1	20	on request
07174-02-2504X10	B	steel	M4	9,4	10.9	2,45	10	2,1	20	on request
07174-02-2504X12	B	steel	M4	9,4	10.9	2,45	12	2,1	20	on request
07174-02-2504X16	B	steel	M4	9,4	10.9	2,45	16	2,1	20	on request
07174-02-2504X20	B	steel	M4	9,4	10.9	2,45	20	2,1	20	on request
07174-02-2505X08	B	steel	M5	11,8	10.9	3	8	2,4	25	on request
07174-02-2505X10	B	steel	M5	11,8	10.9	3	10	2,4	25	on request
07174-02-2505X12	B	steel	M5	11,8	10.9	3	12	2,4	25	on request
07174-02-2505X16	B	steel	M5	11,8	10.9	3	16	2,4	25	on request
07174-02-2505X20	B	steel	M5	11,8	10.9	3	20	2,4	25	on request
07174-02-2505X25	B	steel	M5	11,8	10.9	3	25	2,4	25	on request
07174-02-2506X10	B	steel	M6	13,6	10.9	3,3	10	3	30	on request
07174-02-2506X12	B	steel	M6	13,6	10.9	3,3	12	3	30	on request
07174-02-2506X16	B	steel	M6	13,6	10.9	3,3	16	3	30	on request
07174-02-2506X20	B	steel	M6	13,6	10.9	3,3	20	3	30	on request
07174-02-2506X25	B	steel	M6	13,6	10.9	3,3	25	3	30	on request
07174-02-2506X30	B	steel	M6	13,6	10.9	3,3	30	3	30	on request
07174-02-2508X12	B	steel	M8	17,8	10.9	4,5	12	3,75	40	on request
07174-02-2508X16	B	steel	M8	17,8	10.9	4,5	16	3,75	40	on request
07174-02-2508X20	B	steel	M8	17,8	10.9	4,5	20	3,75	40	on request
07174-02-2508X25	B	steel	M8	17,8	10.9	4,5	25	3,75	40	on request
07174-02-2508X30	B	steel	M8	17,8	10.9	4,5	30	3,75	40	on request
07174-02-2104X08	B	stainless steel A2	M4	9,4	70	2,45	8	2,1	20	on request
07174-02-2104X10	B	stainless steel A2	M4	9,4	70	2,45	10	2,1	20	on request
07174-02-2104X12	B	stainless steel A2	M4	9,4	70	2,45	12	2,1	20	on request
07174-02-2104X16	B	stainless steel A2	M4	9,4	70	2,45	16	2,1	20	on request
07174-02-2104X20	B	stainless steel A2	M4	9,4	70	2,45	20	2,1	20	on request
07174-02-2105X08	B	stainless steel A2	M5	11,8	70	3	8	2,4	25	on request
07174-02-2105X10	B	stainless steel A2	M5	11,8	70	3	10	2,4	25	on request
07174-02-2105X12	B	stainless steel A2	M5	11,8	70	3	12	2,4	25	on request
07174-02-2105X16	B	stainless steel A2	M5	11,8	70	3	16	2,4	25	on request
07174-02-2105X20	B	stainless steel A2	M5	11,8	70	3	20	2,4	25	on request
07174-02-2105X25	B	stainless steel A2	M5	11,8	70	3	25	2,4	25	on request
07174-02-2106X08	B	stainless steel A2	M6	13,6	70	3,3	8	2,4	30	on request
07174-02-2106X10	B	stainless steel A2	M6	13,6	70	3,3	10	3	30	on request
07174-02-2106X12	B	stainless steel A2	M6	13,6	70	3,3	12	3	30	on request
07174-02-2106X16	B	stainless steel A2	M6	13,6	70	3,3	16	3	30	on request
07174-02-2106X20	B	stainless steel A2	M6	13,6	70	3,3	20	3	30	on request
07174-02-2106X25	B	stainless steel A2	M6	13,6	70	3,3	25	3	30	on request
07174-02-2106X30	B	stainless steel A2	M6	13,6	70	3,3	30	3	30	on request
07174-02-2108X12	B	stainless steel A2	M8	17,8	70	4,5	12	3,75	40	on request
07174-02-2108X16	B	stainless steel A2	M8	17,8	70	4,5	16	3,75	40	on request
07174-02-2108X20	B	stainless steel A2	M8	17,8	70	4,5	20	3,75	40	on request
07174-02-2108X25	B	stainless steel A2	M8	17,8	70	4,5	25	3,75	40	on request
07174-02-2108X30	B	stainless steel A2	M8	17,8	70	4,5	30	3,75	40	on request
