        Support rails for clamp fittings DIN 3015 parts 1 and 3

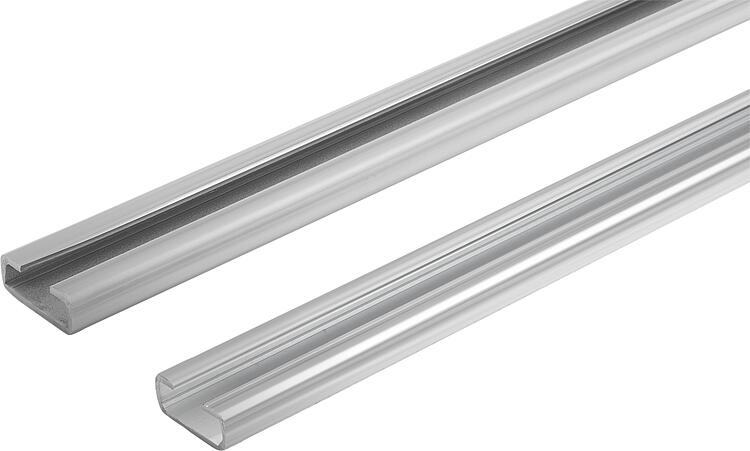

Item description/product images

DescriptionMaterial:Steel.Version:Bright or hot-dip galvanised.Note:Support rails for clamp fittings DIN 3015 part 1 light series and 3 double clamps.

For mounting pipe and hose clamps in conjunction with support rail nuts 07840-22.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07840-20 Support rails for clamp fittings DIN 3015 parts 1 and 3

108 kB

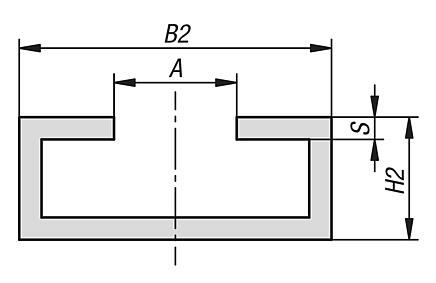

Drawings

Item selection/filter

Order No.	Surface finish body	A	B2	S	H2	L	Suitable for DIN 3015-1 light series	Suitable for DIN 3015-2 heavy series	Suitable for DIN 3015-3 Double clamp	Price
07840-20-081110	bright	11	28	2	11	1000	size 0–8	-	size 1–5	on request
07840-20-081410	bright	11	28	2	14	1000	size 0–8	-	size 1–5	on request
07840-20-083010	bright	11	28	2	30	1000	size 0–8	-	size 1–5	on request
07840-20-081114	hot-dip galvanised	11	28	2	11	1000	size 0–8	-	size 1–5	on request
07840-20-081414	hot-dip galvanised	11	28	2	14	1000	size 0–8	-	size 1–5	on request
07840-20-083014	hot-dip galvanised	11	28	2	30	1000	size 0–8	-	size 1–5	on request
