Support rail nuts for clamp fittings
DIN 3015 parts 1 and 3

07840-22

Support rail nuts for clamp fittings DIN 3015 parts 1 and 3

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - DIN 3015 clamp fittings
        Support rail nuts for clamp fittings DIN 3015 parts 1 and 3

Item description/product images

DescriptionMaterial:Steel.Version:Zinc-nickel coated.Note:Support rail nuts for clamp fittings DIN 3015 part 1 light series and 3 double clamp.

For mounting pipe and hose clamps in conjunction with support rails 07840-20.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07840-22 Support rail nuts for clamp fittings DIN 3015 parts 1 and 3

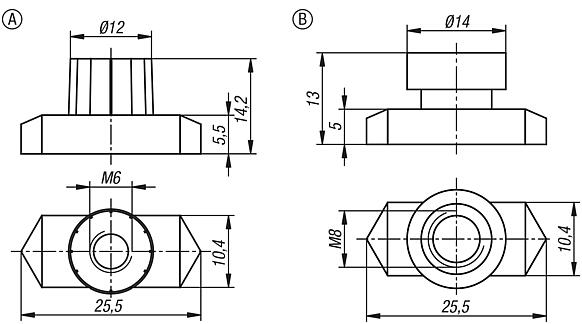

Drawings (total overview)

Support rail nuts for clamp fittings
DIN 3015 parts 1 and 3

Support rail nuts for clamp fittings DIN 3015 parts 1 and 3, Form A

More information

Drawings

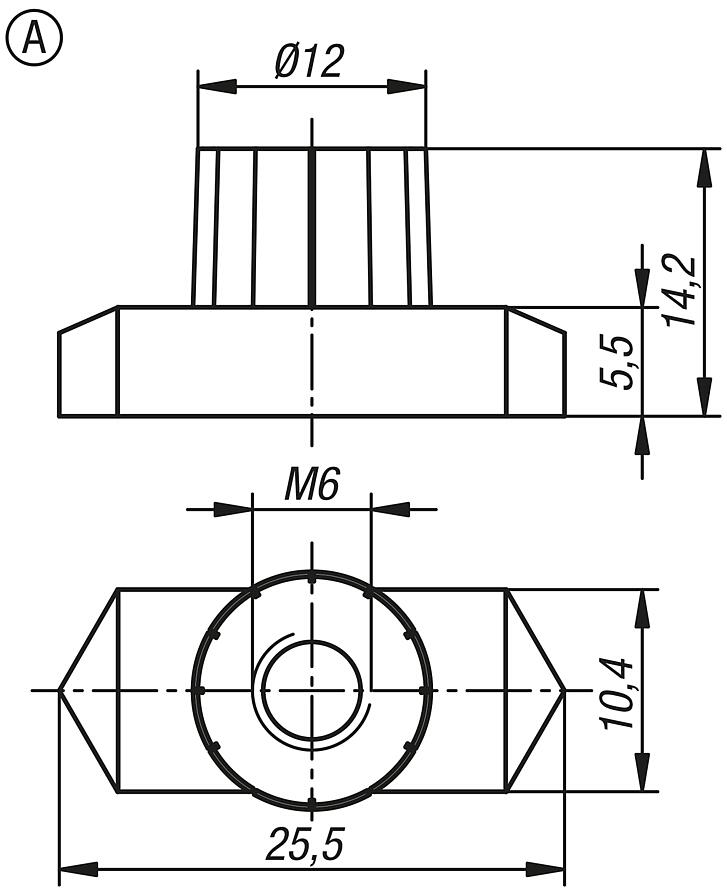

Support rail nuts for clamp fittings DIN 3015 parts 1 and 3, Form A

Item selection/filter

Order No.	Form	DIN	Suitable for DIN 3015-1 light series	Suitable for DIN 3015-2 heavy series	Suitable for DIN 3015-3 Double clamp	CAD	Acc.	Price	Order
07840-22-08113	A	3015-1, 3015-3	size 0–8	-	size 1			on request

Support rail nuts for clamp fittings DIN 3015 parts 1 and 3, Form B

More information

Drawings

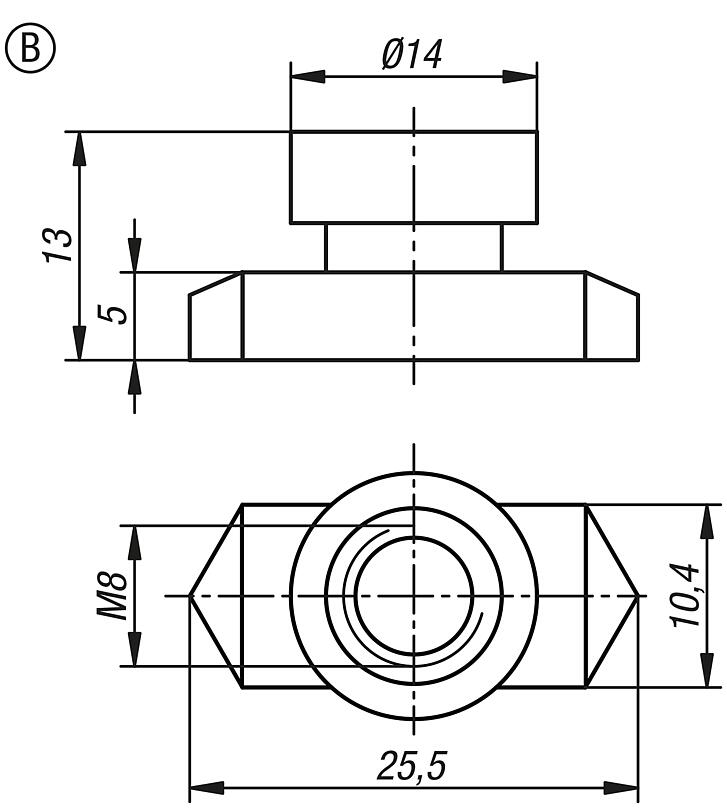

Support rail nuts for clamp fittings DIN 3015 parts 1 and 3, Form B

Item selection/filter

Order No.	Form	DIN	Suitable for DIN 3015-1 light series	Suitable for DIN 3015-2 heavy series	Suitable for DIN 3015-3 Double clamp	CAD	Acc.	Price	Order
07840-22-25213	B	DIN 3015-3	-	-	size 2–5			on request
