        Tube clamp joint, aluminium, T-piece, for round tubes

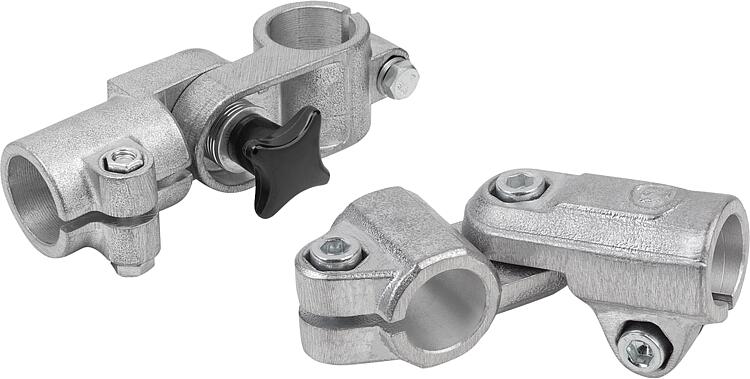

Item description/product images

DescriptionMaterial:Cast aluminium.
DIN 7984 cap screws and DIN 985 hex nuts, steel.
Version:Vibratory ground.

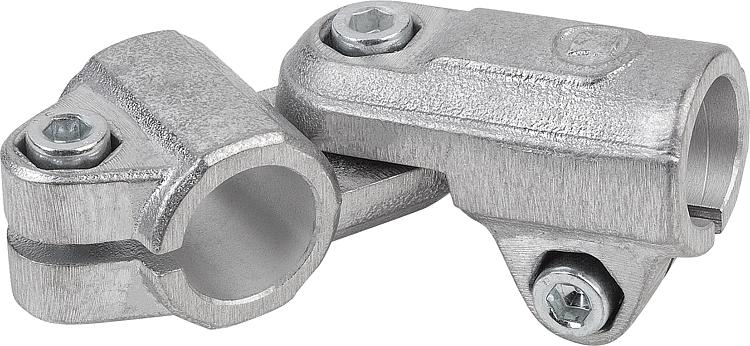

Cap screw, hex head screw and hex nut.Note:Form A: without toothing, infinitely adjustable through 180°.

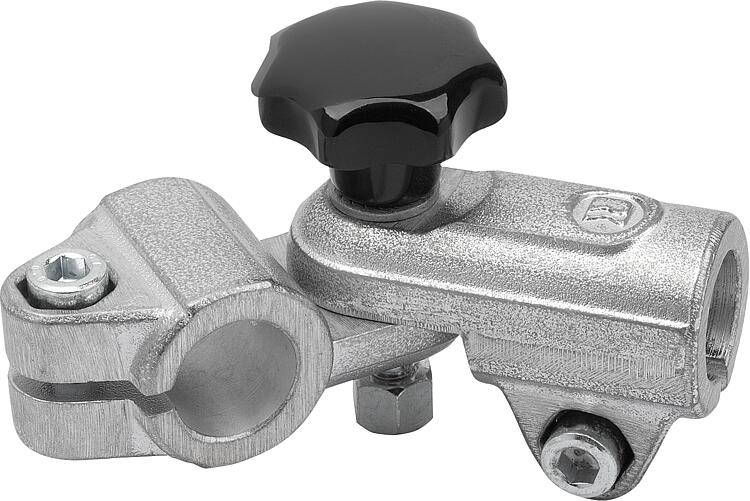

Form B: with toothing, indexible in 15° steps and adjustable through 180°On request:Clamping levers for tightening and other diameters.Accessory:- Round and square tubes 29050Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29032 Tube clamp joint, aluminium, T-piece, for round tubes

957 kB

Load specifications - Aluminium tube clamps

105 kB

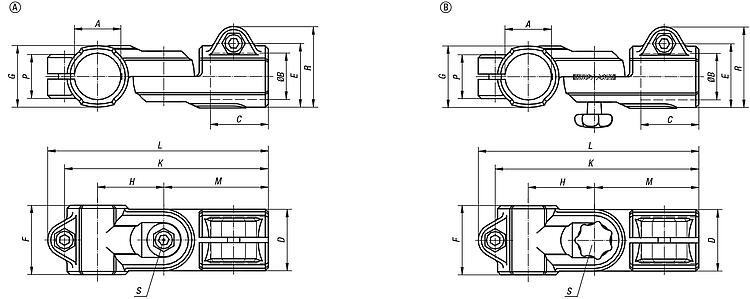

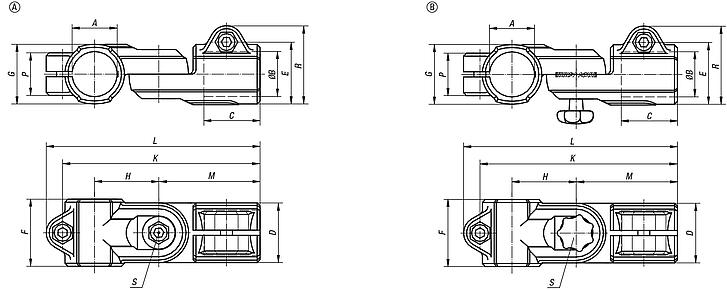

Drawings (total overview)

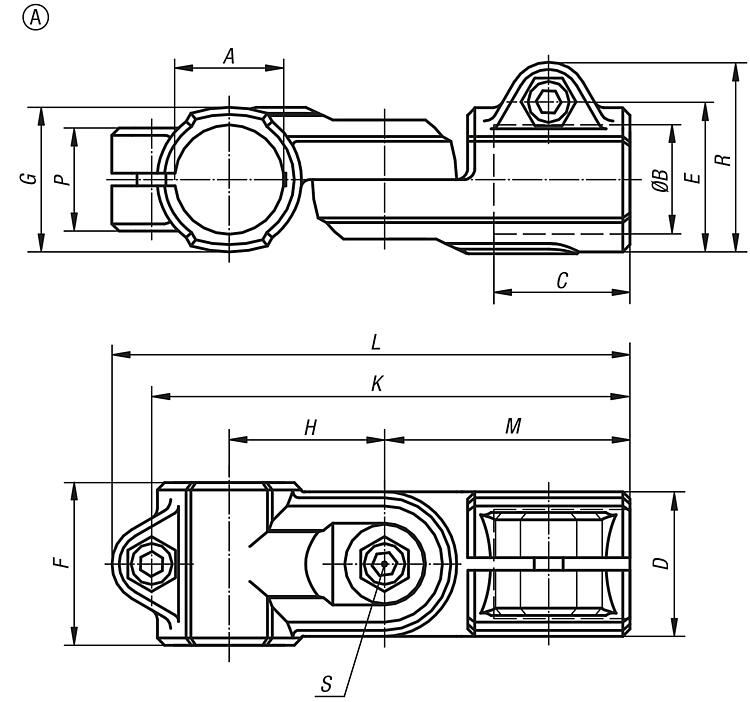

Tube clamp joints, aluminium, T-angle, for round tubes, Form A, without toothing

More information

Drawings

Tube clamp joints, aluminium, T-angle, for round tubes, Form A, without toothing

Item selection/filter

Order No.	Form	Product type	A	B	C	D	E	F	G	H	K	L	M	P	R	S	Price
29032-512	A	without toothing	12,1	12,1	25	26	29,4	30	26	27	87	95,5	44	21	37,5	M6x18	on request
29032-514	A	without toothing	14,1	14,1	25	26	29,4	30	26	27	87	95,5	44	21	37,5	M6x18	on request
29032-516	A	without toothing	16,1	16,1	25	26	29,4	30	26	27	87	95,5	44	21	37,5	M6x18	on request
29032-518	A	without toothing	18,1	18,1	25	26	29,4	30	26	27	87	95,5	44	21	37,5	M6x18	on request
29032-520	A	without toothing	20,1	20,1	45	40	42	40	40	43	138	147	73	33	52	M8x35	on request
29032-525	A	without toothing	25,1	25,1	45	40	42	40	40	43	138	147	73	33	52	M8x35	on request
29032-530	A	without toothing	30,1	30,1	45	40	42	40	40	43	138	147	73	33	52	M8x35	on request
29032-540	A	without toothing	40,2	40,2	60	56	57	56	56	60	188	200	100	48	69	M10x50	on request
29032-550	A	without toothing	50,2	50,2	70	66	66	66	66	70	218	230	115	58	78	M10x50	on request
29032-560	A	without toothing	60,3	60,3	80	80	80	80	85	85	260	273	135	68	93	M12X50	on request

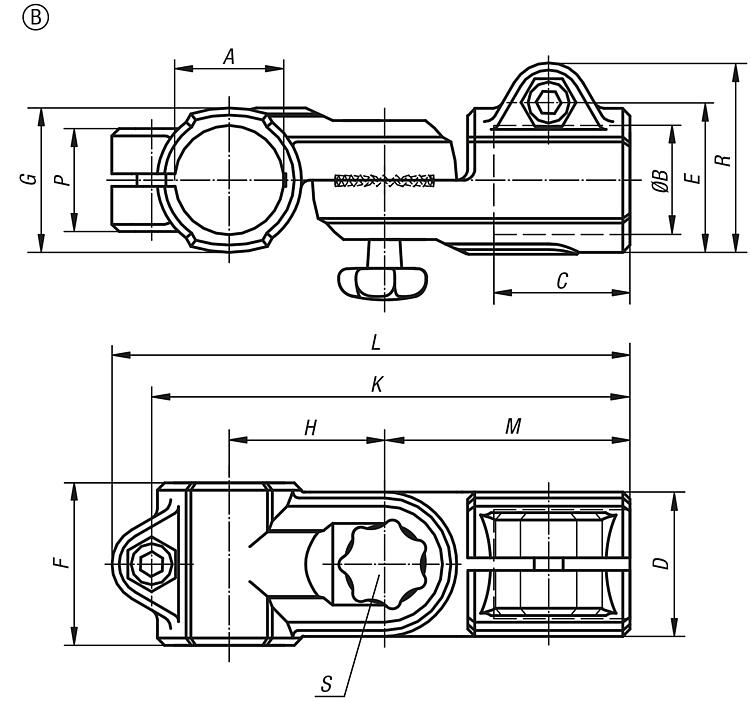

Tube clamp joints, aluminium, T-angle, for round tubes, Form B, with toothing

More information

Drawings

Tube clamp joints, aluminium, T-angle, for round tubes, Form B, with toothing

Item selection/filter

Order No.	Form	Product type	A	B	D	L	H	F	R	S	P	C	M	G	E	K	Price
29032-1512	B	with toothing	12,1	12,1	26	95,5	27	30	37,5	M06X26	21	25	44	26	29,4	84	on request
29032-1514	B	with toothing	14,1	14,1	26	95,5	27	30	37,5	M06X26	21	25	44	26	29,4	84	on request
29032-1516	B	with toothing	16,1	16,1	26	95,5	27	30	37,5	M06X26	21	25	44	26	29,4	84	on request
29032-1518	B	with toothing	18,1	18,1	26	95,5	27	30	37,5	M06X26	21	25	44	26	29,4	84	on request
29032-1520	B	with toothing	20,1	20,1	40	146	43	40	52	M08X40	33	45	73	40	40	136	on request
29032-1525	B	with toothing	25,1	25,1	40	146	43	40	52	M08X40	33	45	73	40	40	136	on request
29032-1530	B	with toothing	30,1	30,1	40	146	43	40	52	M08X40	33	45	73	40	40	136	on request
29032-1540	B	with toothing	40,2	40,2	56	200	60	56	69	M10x50	48	60	100	56	56	188	on request
29032-1550	B	with toothing	50,2	50,2	66	230	70	66	78	M10x50	58	70	115	66	66	218	on request
29032-1560	B	with toothing	60,3	60,3	80	273	85	80	93	M12X50	68	80	135	85	80	260	on request
