Tube clamp joint, aluminium, straight, for round tubes

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Tube connectors Tube clamps Tube joints Tubes Columns
      - Tubular connection system
        Tube clamp joint, aluminium, straight, for round tubes

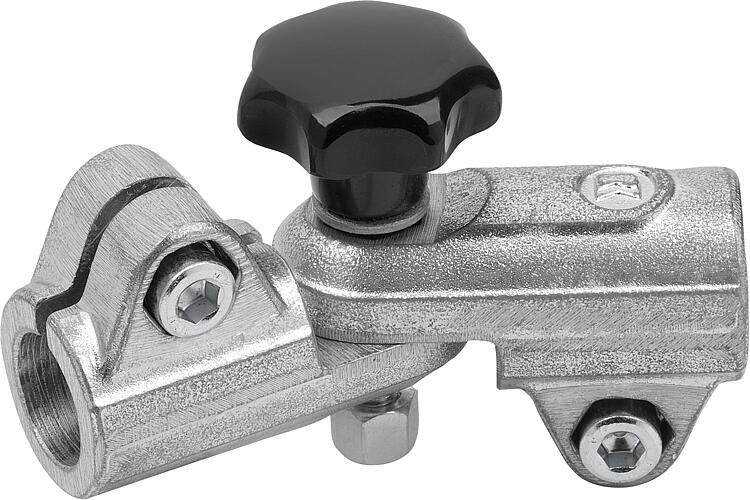

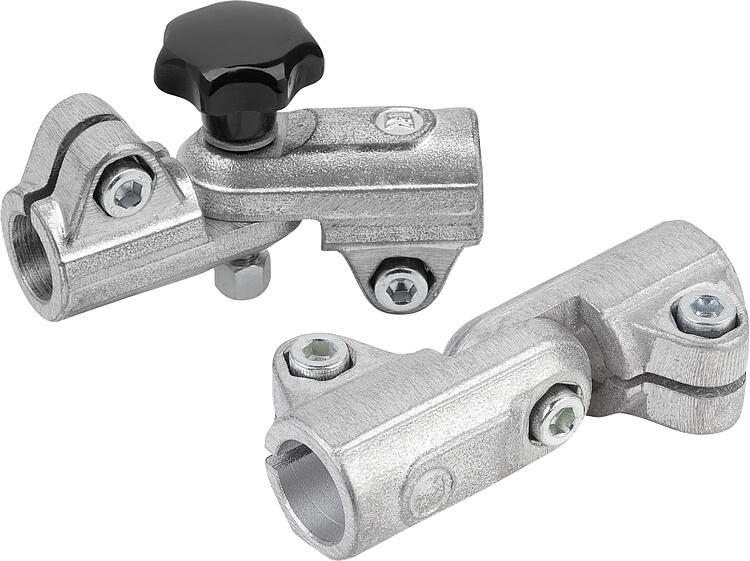

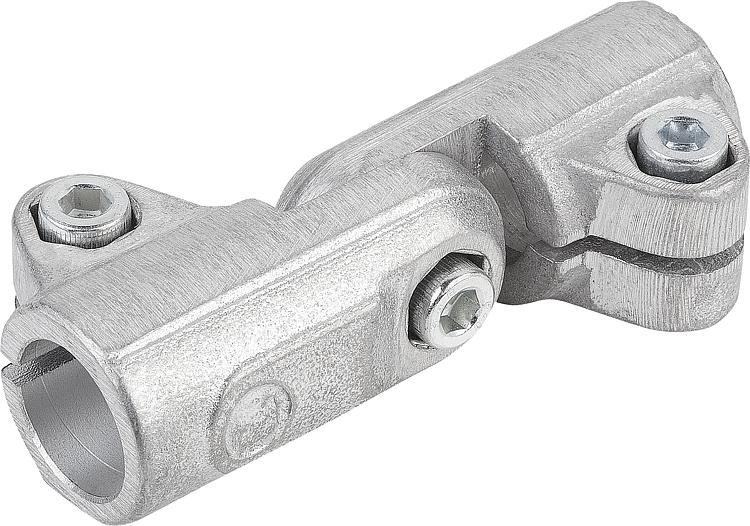

Item description/product images

DescriptionMaterial:Cast aluminium.
ISO 4762 cap screws and ISO 4032 hexagon nuts, steel.
Version:Vibratory ground.
Screws and nuts galvanised.Note:Form A: without toothing, infinitely adjustable through 180°.
Form B: with toothing, indexible in 15° steps and adjustable through 180°On request:Clamping levers for tightening and other diameters.Accessory:- Round and square tubes 29050Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29034 Tube clamp joint, aluminium, straight, for round tubes

1 MB

Load specifications - Aluminium tube clamps

105 kB

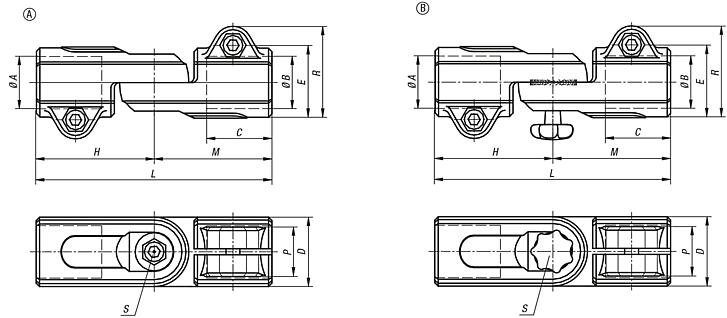

Drawings (total overview)

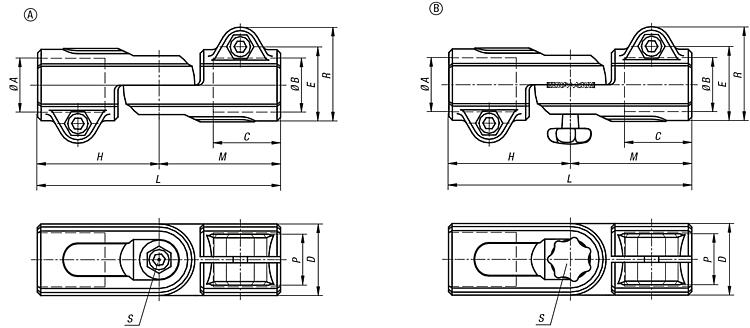

Tube clamp joints, aluminium, straight, for round tubes, Form A, without toothing

More information

Drawings

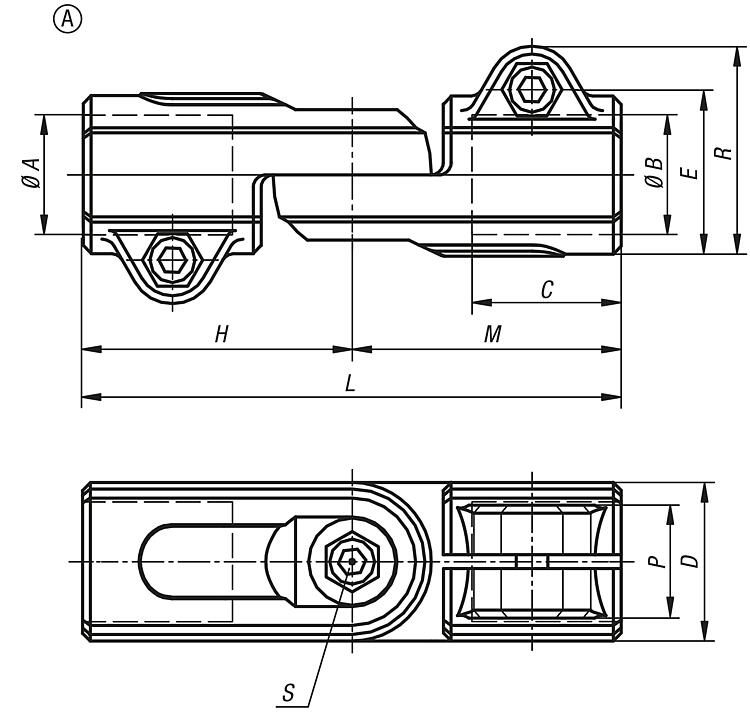

Tube clamp joints, aluminium, straight, for round tubes, Form A, without toothing

Item selection/filter

Order No.	Form	Product type	A	B	C	D	E	H	L	M	P	R	S	Price
29034-512	A	without toothing	12,1	12,1	25	26	29,4	44	88	44	21	37,5	M6x18	on request
29034-514	A	without toothing	14,1	14,1	25	26	29,4	44	88	44	21	37,5	M6x18	on request
29034-516	A	without toothing	16,1	16,1	25	26	29,4	44	88	44	21	37,5	M6x18	on request
29034-518	A	without toothing	18,1	18,1	25	26	29,4	44	88	44	21	37,5	M6x18	on request
29034-520	A	without toothing	20,1	20,1	45	40	40	73	146	73	33	51	M8x35	on request
29034-525	A	without toothing	25,1	25,1	45	40	40	73	146	73	33	51	M8x35	on request
29034-530	A	without toothing	30,1	30,1	45	40	40	73	146	73	33	51	M8x35	on request
29034-540	A	without toothing	40,15	40,15	60	56	56	100	200	100	48	70	M10x50	on request
29034-550	A	without toothing	50,2	50,2	70	66	66	115	230	115	58	78	M10x50	on request
29034-560	A	without toothing	60,25	60,25	80	80	80	135	270	135	68	93	M12X50	on request

Tube clamp joints, aluminium, straight, for round tubes, Form B, with toothing

More information

Drawings

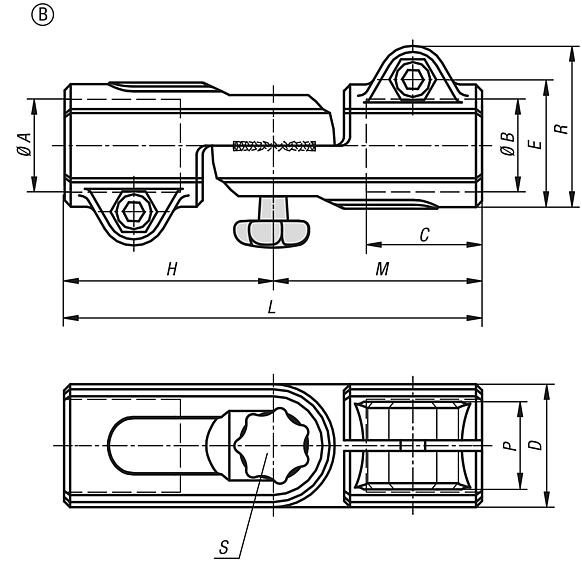

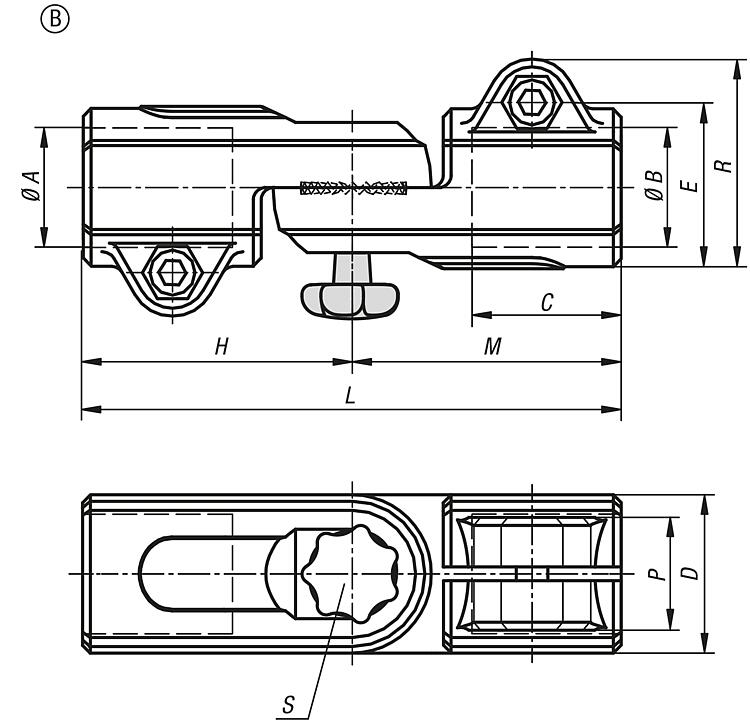

Tube clamp joints, aluminium, straight, for round tubes, Form B, with toothing

Item selection/filter

Order No.	Form	Product type	A	B	C	D	E	H	L	M	P	R	S	Price
29034-1512	B	with toothing	12,1	12,1	25	26	29,4	44	88	44	21	37,5	M06X26	on request
29034-1514	B	with toothing	14,1	14,1	25	26	29,4	44	88	44	21	37,5	M06X26	on request
29034-1516	B	with toothing	16,1	16,1	25	26	29,4	44	88	44	21	37,5	M06X26	on request
29034-1518	B	with toothing	18,1	18,1	25	26	29,4	44	88	44	21	37,5	M06X26	on request
29034-1520	B	with toothing	20,1	20,1	45	40	40	73	146	73	33	51	M08X40	on request
29034-1525	B	with toothing	25,1	25,1	45	40	40	73	146	73	33	51	M08X40	on request
29034-1530	B	with toothing	30,1	30,1	45	40	40	73	146	73	33	51	M08X40	on request
29034-1540	B	with toothing	40,2	40,2	60	56	56	100	200	100	48	70	M10x50	on request
29034-1550	B	with toothing	50,2	50,2	70	66	66	115	230	115	58	78	M10x50	on request
29034-1560	B	with toothing	60,3	60,3	80	80	80	135	270	135	68	93	M12X50	on request
