05596-30Snap locks, steel or stainless steel, with fold-down grip,... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:With their countersunk grip, these snap locks are designed for flush installation in doors, hatches and covers. The pre-tensioned grip prevents rattling.Material:Housing steel or stainless steel.Version:Steel black powder-coated.
Stainless steel ground.Note:Door leaf thickness max. 10 mm.
Form A: lockable.
Form B: not lockable.
The latches have a single key system, i.e. each lock can be opened with the same key.Type of operation:When the grip is pulled, the latch moves into the open position and the door can be opened. The door latches automatically when pushed shut.Assembly:1. Cut out a mounting hole as shown in the drawing.
2. Insert the latch into the mounting hole from the front.
3. Tighten the nut from behind, this pulls the mounting bracket onto the door panel and fixates the lock in the mounting opening.Supplied withNuts and mounting brackets are supplied.
The lockable snap locks are each supplied with two keys.Drawing reference:1) Installation cut-out
2) Door leaf
3) Frame DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

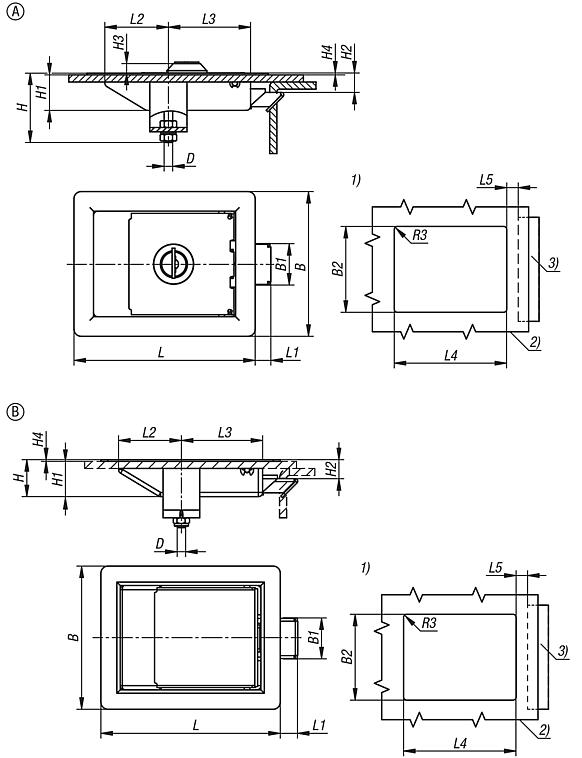

Drawings (total overview) |

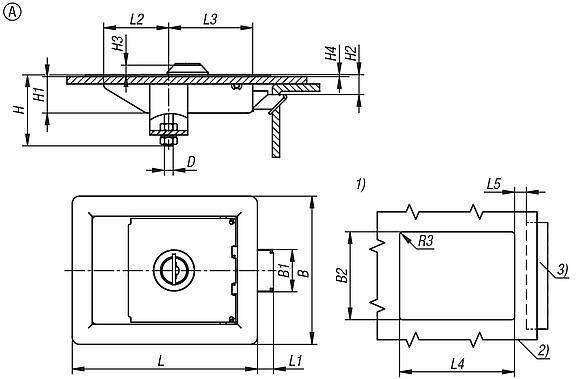

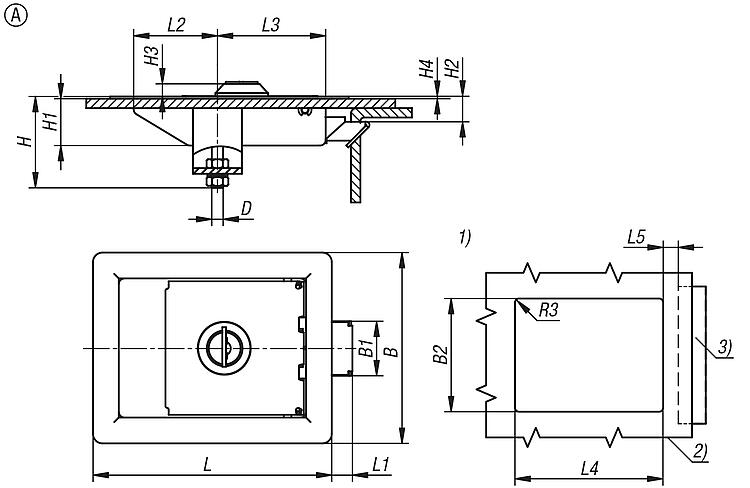

Snap locks, steel or stainless steel, with fold-down grip, mounted using a mounting bracket, Form A |
More information |
| Order No. | Form | Form definition | Main
material | B
| B1 | B2 | D | H | H1 | H2 | H3 | H4 | L | L1 | L2 | L3 | L4 | L5 | CAD | Acc. | Price | Order |
|---|
| 05596-30-000127101 | A | lockable | steel | 101,5 | 29 | 82,5 | M6 | 49 | 25 | 12,7 | 6,5 | 1,2 | 127 | 11 | 44,5 | 57,5 | 108 | 11-16 |  | | on request | | | 05596-30-110127101 | A | lockable | stainless steel | 101,5 | 29 | 82,5 | M6 | 49 | 25 | 12,7 | 6,5 | 1,2 | 127 | 11 | 44,5 | 57,5 | 108 | 11-16 | | | on request | |
|

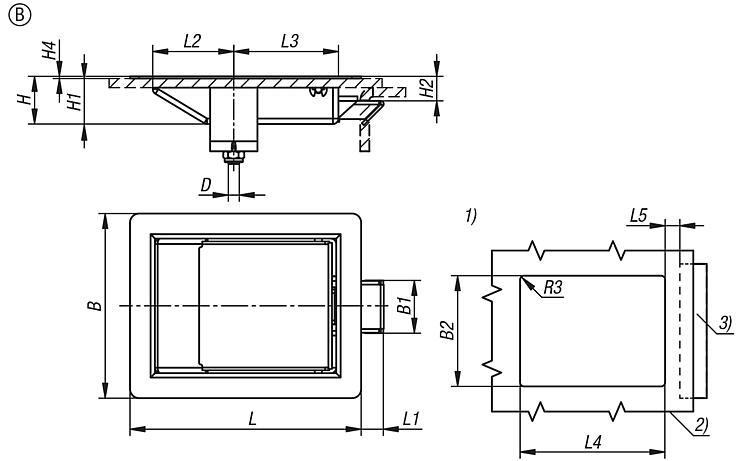

Snap locks, steel or stainless steel, with fold-down grip, mounted using a mounting bracket, Form B |
More information |
| Order No. | Form | Form definition | Main
material | B
| B1 | B2 | D | H | H1 | H2 | H4 | L | L1 | L2 | L3 | L4 | L5 | CAD | Acc. | Price | Order |
|---|
| 05596-30-001127101 | B | not lockable | steel | 101,5 | 29 | 82,5 | M6 | 48 | 25 | 13,5 | 1,2 | 127 | 11 | 44,5 | 57,5 | 108 | 11-16 | | | on request | | | 05596-30-111127101 | B | not lockable | stainless steel | 101,5 | 29 | 82,5 | M6 | 48 | 25 | 13,5 | 1,2 | 127 | 11 | 44,5 | 57,5 | 108 | 11-16 | | | on request | |
|
