Pull handles, square aluminium

06929-01

Pull handles, square aluminium

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles
        Pull handles, square aluminium

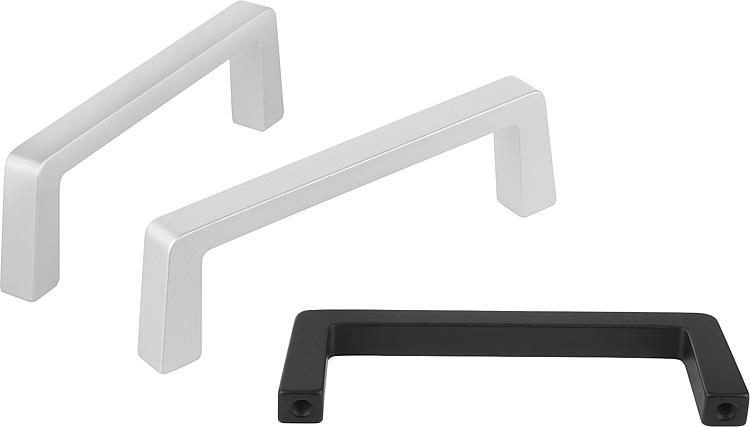

Item description/product images

DescriptionMaterial:Aluminium.Version:Matt-finished, anodised black or natural tone.Note for ordering:Fastening screws included.Assembly:From the rear.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06929-01 Pull handles, square aluminium

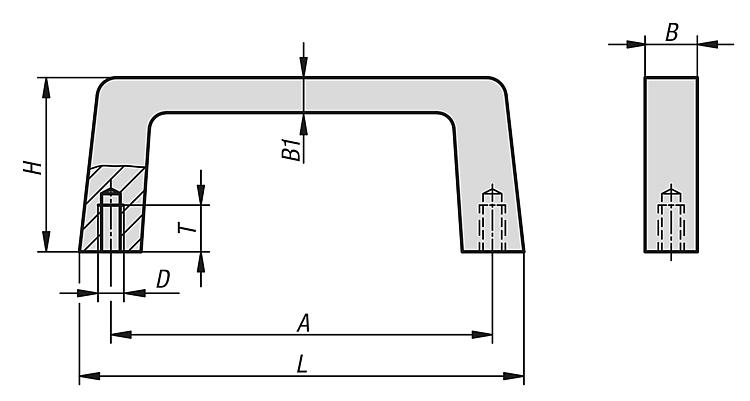

Drawings

Pull handles, square aluminium

Item selection/filter

Order No.	Colour	Main material	A	B	B1	D	H	L	T	Load capacity N	CAD	Acc.	Price	Order
06929-01-055053	natural	aluminium	55	12,2	8	M5	40	69	10	750			on request
06929-01-088053	natural	aluminium	88	12,2	8	M5	40	102	10	750			on request
06929-01-120053	natural	aluminium	120	12,2	8	M5	40	134	10	750			on request
06929-01-180053	natural	aluminium	180	12,2	8	M5	40	194	10	750			on request
06929-01-235053	natural	aluminium	235	12,2	8	M5	40	249	10	750			on request
06929-01-055051	black	aluminium	55	12,2	8	M5	40	69	10	750			on request
06929-01-088051	black	aluminium	88	12,2	8	M5	40	102	10	750			on request
06929-01-120051	black	aluminium	120	12,2	8	M5	40	134	10	750			on request
06929-01-180051	black	aluminium	180	12,2	8	M5	40	194	10	750			on request
