        Nuts for T-slots - inch

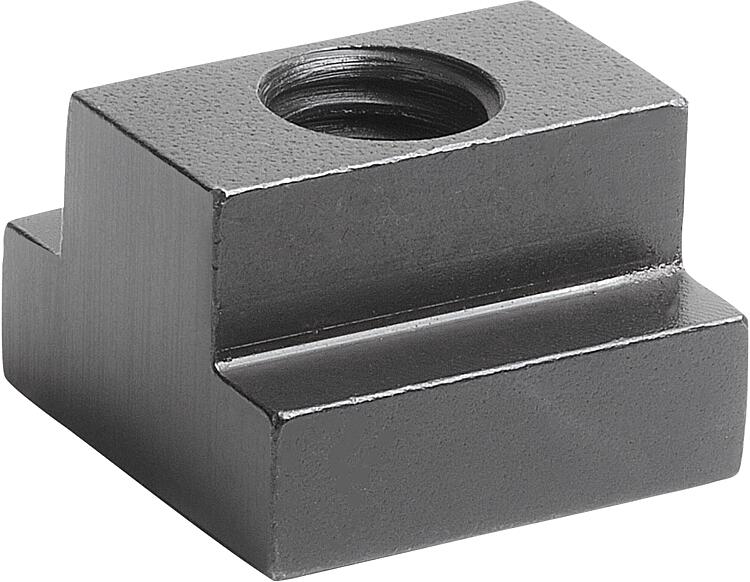

Item description/product images

DescriptionMaterial:Carbon steel.Version:Case-hardened and black oxidised.Note:The last thread is not complete, so that the counterpart cannot be screwed through completely.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07060-01 inch Nuts for T-slots - inch

223 kB

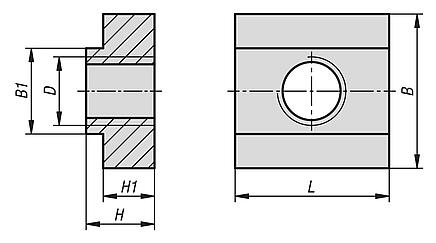

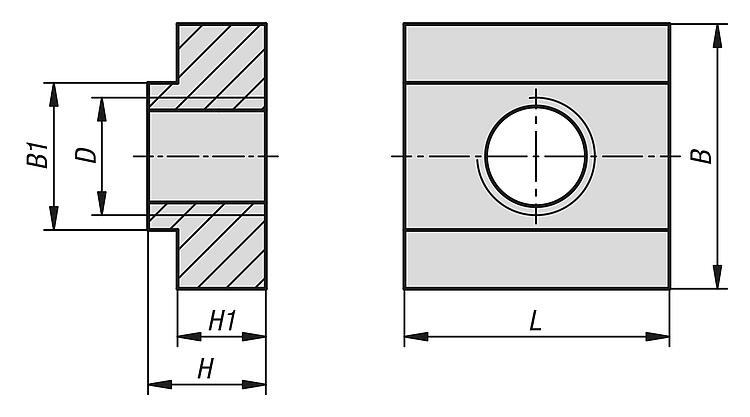

Drawings

Item selection/filter

Order No.	B in inch	B1 in inch	D=Thread	H in inch	H1 in inch	L inch	Price
07060-01-1A208L04	9/16	5/16	1/4-20	0.250	0.188	0.563	on request
07060-01-1A310L06	5/8	3/8	5/16-18	0.375	0.250	0.875	on request
07060-01-1A413L08	7/8	1/2	3/8-16	0.500	0.281	0.875	on request
07060-01-1A516L10	1	5/8	1/2-13	0.625	0.344	1.125	on request
07060-01-1A516L12	1-1/8	5/8	1/2-13	0.750	0.375	1.125	on request
07060-01-1A515L10	7/8	9/16	1/2-13	0.625	0.344	1.125	on request
07060-01-1A518L12	1-1/8	11/16	1/2-13	0.750	0.438	1.250	on request
07060-01-1A618L12	1-1/8	11/16	5/8-11	0.750	0.438	1.250	on request
07060-01-1A620L12	1-1/4	3/4	5/8-11	0.750	0.469	1.250	on request
07060-01-1A621L16	1-1/4	13/16	5/8-11	1.000	0.563	1.500	on request
07060-01-1A721L16	1-1/4	13/16	3/4-10	1.000	0.563	1.500	on request
07060-01-1A723L16	1-1/2	7/8	3/4-10	1.000	0.563	1.500	on request
07060-01-1A726L16	1-5/8	1	3/4-10	1.000	0.625	1.750	on request
