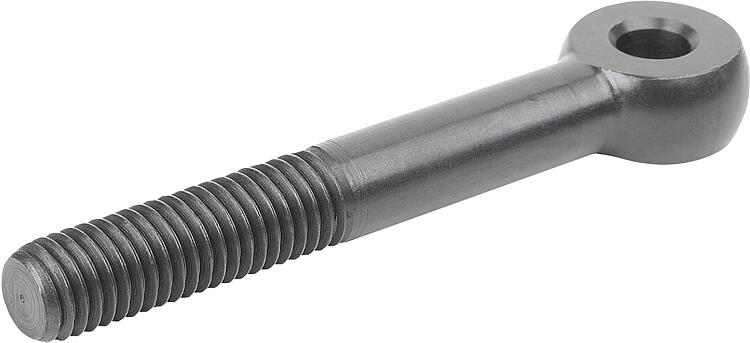

Eye bolts - inch

Item description/product images

DescriptionMaterial:Carbon steel.Version:Case-hardened and black oxidised.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

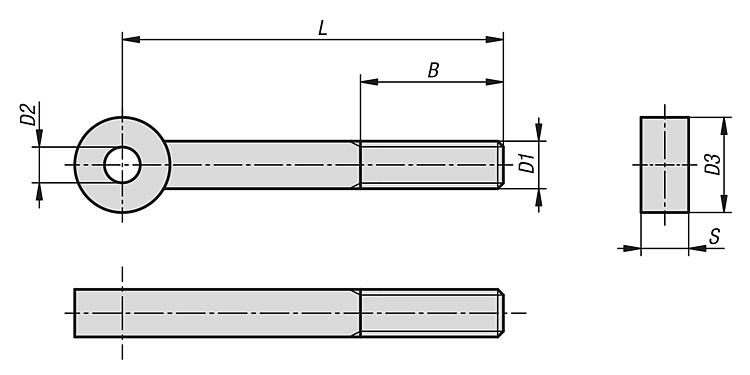

Order No.	B in inch	D1 in inch	D2 in inch	D3 in inch	L inch	S in inch	Price
07180-01-A2L32CLL03	0.750	1/4-20	0.188	0.500	2.000	0.250	on request
07180-01-A2L40CLL03	1.250	1/4-20	0.188	0.500	3.000	0.250	on request
07180-01-A3L40CNL05	1.500	5/16-18	0.313	0.625	3.000	0.313	on request
07180-01-A3L40CML05	1.500	5/16-18	0.250	0.625	3.000	0.313	on request
07180-01-A3L44CNL05	2.000	5/16-18	0.313	0.625	4.000	0.313	on request
07180-01-A3L44CML05	2.000	5/16-18	0.250	0.625	4.000	0.313	on request
07180-01-A4L40COL06	1.500	3/8-16	0.375	0.750	3.000	0.375	on request
07180-01-A4L43COL06	2.000	3/8-16	0.375	0.750	3.750	0.375	on request
07180-01-A4L48COL06	2.500	3/8-16	0.375	0.750	5.000	0.375	on request
07180-01-A4L40CNL06	1.500	3/8-16	0.313	0.750	3.000	0.375	on request
07180-01-A5L43COL08	1.500	1/2-13	0.375	1.000	3.750	0.500	on request
07180-01-A5L48COL08	2.000	1/2-13	0.375	1.000	5.000	0.500	on request
07180-01-A6L46CQL10	2.000	5/8-11	0.625	1.250	4.500	0.625	on request
07180-01-A6L52CQL10	2.500	5/8-11	0.625	1.250	6.000	0.625	on request
07180-01-A7L46CRL12	2.000	3/4-10	0.750	1.500	4.500	0.750	on request
07180-01-A7L52CRL12	2.500	3/4-10	0.750	1.500	6.000	0.750	on request
