Hexagon nuts with rotatable collar - inch
 07242-01 inch

Hexagon nuts with rotatable collar - inch

 go back

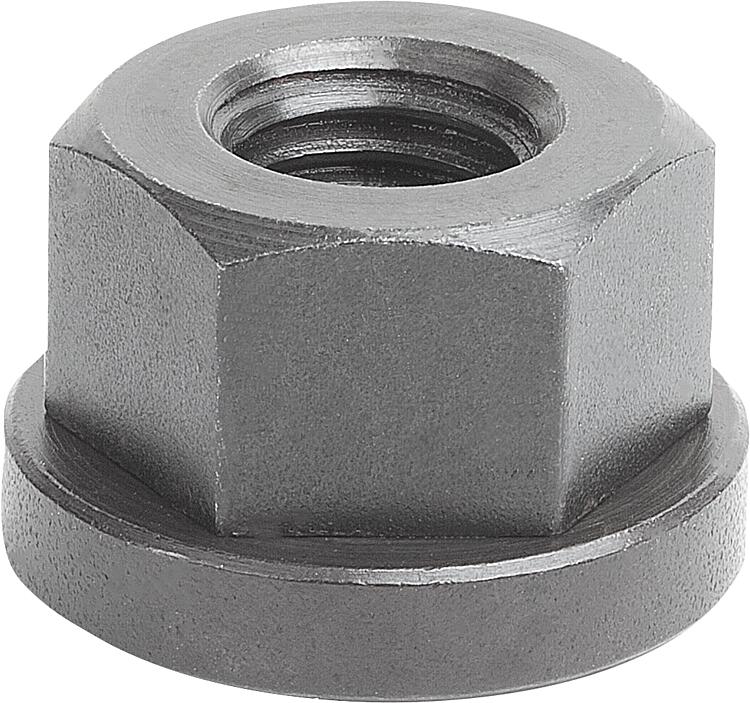

Item description/product images
DescriptionMaterial:Carbon steel.Version:Case-hardened and black oxidised.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07242-01 inch Hexagon nuts with rotatable collar - inch 305 kB

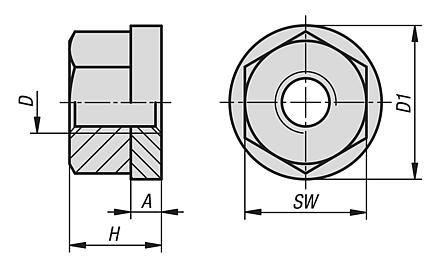

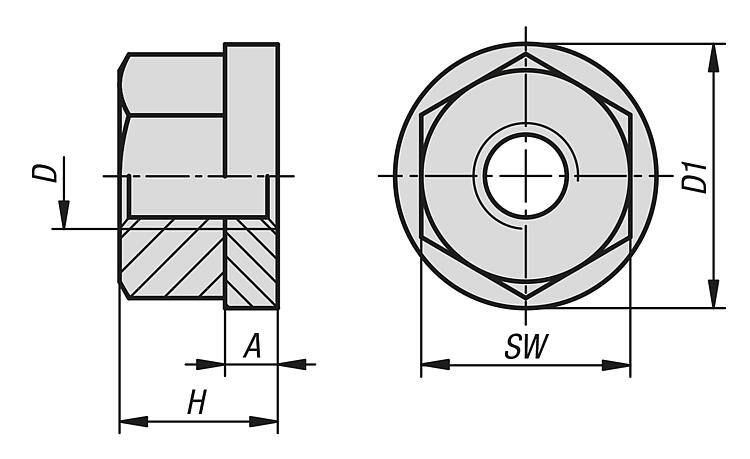

Drawings

Hexagon nuts with rotatable collar - inch

Item selection/filter
Order No.

A in inchD=ThreadD1 in inchH in inchSWCADAcc.PriceOrder
07242-01-11A20.1251/4-200.6250.3750.500 on request
07242-01-11A30.1415/16-180.7500.4380.563 on request
07242-01-11A40.1563/8-160.8750.5310.688 on request
07242-01-11A50.2191/2-131.1250.7190.875 on request
07242-01-11A60.2505/8-111.3750.9061.063 on request
07242-01-11A70.2813/4-101.6251.0161.250 on request
