Eye bolts with contact face - inch

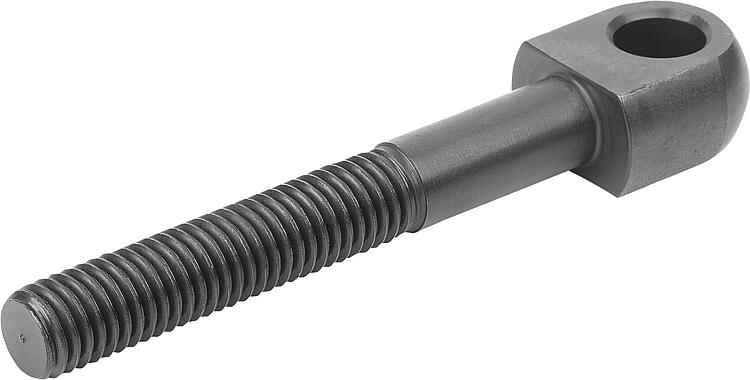

Item description/product images

DescriptionMaterial:Carbon steel.Version:Case-hardened and black oxidised.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

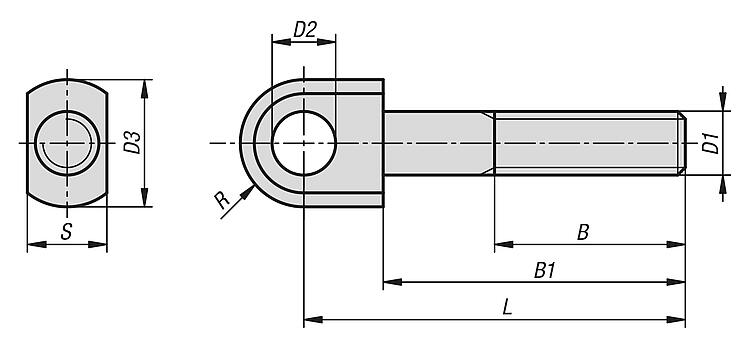

Order No.	B in inch	B1 in inch	D1 in inch	D2 in inch	D3 in inch	L inch	R in inch	S in inch	Price
07181-10-A4L43COL06	0.560	0.810	10-32	0.189	0.375	1.000	0.190	0.189	on request
07181-10-A5A09CPL08	1.000	1.810	10-32	0.189	0.375	2.000	0.190	0.189	on request
07181-10-A1L16CLL03	0.750	1.188	1/4-20	0.250	0.500	1.500	0.250	0.313	on request
07181-10-A1L32CLL03	1.250	2.188	1/4-20	0.250	0.500	2.500	0.250	0.313	on request
07181-10-A7L46CRL14	2.313	2.313	1/4-20	0.250	0.500	2.625	0.250	0.250	on request
07181-10-A2L24CML05	1.000	1.625	5/16-18	0.313	0.625	2.000	0.313	0.375	on request
07181-10-A2L36CML05	1.375	2.625	5/16-18	0.313	0.625	3.000	0.313	0.375	on request
07181-10-A7L52CRL14	2.813	2.813	5/16-18	0.313	0.625	3.188	0.328	0.313	on request
07181-10-A3L32CNL06	1.375	2.000	3/8-16	0.375	0.750	2.500	0.375	0.500	on request
07181-10-A3L40CNL06	2.000	3.000	3/8-16	0.375	0.750	3.500	0.375	0.500	on request
07181-10-A2L37CML04	3.313	3.313	3/8-16	0.375	0.750	3.750	0.391	0.375	on request
07181-10-A4L36COL08	1.750	2.500	1/2-13	0.500	1.000	3.125	0.500	0.625	on request
07181-10-A4L42COL08	2.250	3.500	1/2-13	0.500	1.000	4.125	0.500	0.625	on request
07181-10-A3A08CNL05	4.313	4.313	1/2-13	0.500	1.000	4.875	0.516	0.500	on request
07181-10-A5A06CPL10	1.625	2.750	5/8-11	0.625	1.250	3.500	0.625	0.750	on request
07181-10-A5A07CPL10	2.500	4.000	5/8-11	0.625	1.250	4.750	0.625	0.750	on request
07181-10-A6L42CQL12	2.000	3.625	3/4-10	0.750	1.500	4.500	0.750	0.875	on request
07181-10-A6L47CQL12	3.000	3.313	3/4-10	0.750	1.500	6.000	0.750	0.875	on request
