95060-05

Heavy-duty wheels with polyurethane tread and aluminium wheel hub

go back

Products
- Product overview
  - Material handling and transport
    - Material handling and transport
      - Wheels and rollers

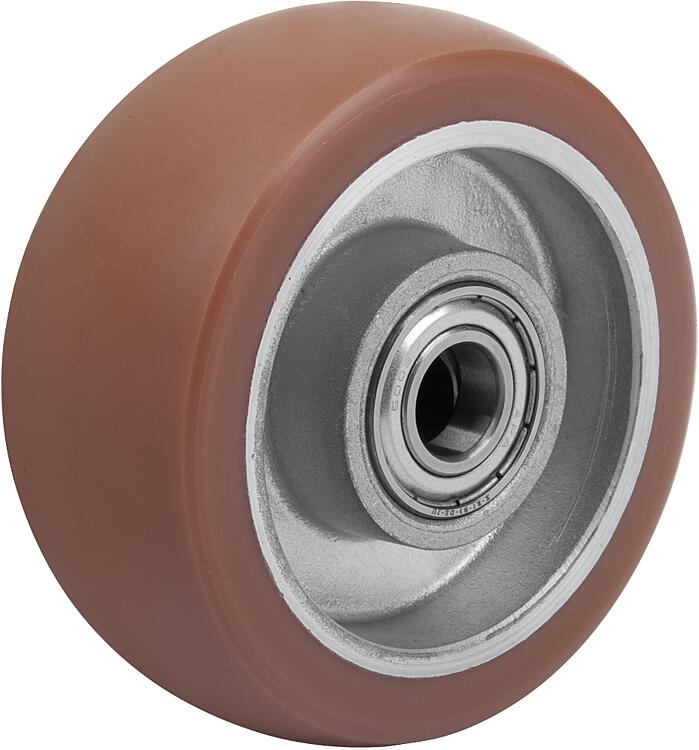

        Heavy-duty wheels with polyurethane tread and aluminium wheel hub

Item description/product images

DescriptionProduct description:The heavy-duty wheels with polyurethane tread and aluminium wheel hub (Shore 92A) offer an extremely high dynamic load capacity with minimal rolling resistance. The brown polyurethane tread is non-marking, cut-resistant and chemically bonded to the die-cast aluminium wheel hub.Material:Wheel hub aluminium.
Tread polyurethane.Version:Polyurethane brown.Note:The wheels have a high chemical resistance to many aggressive media.

The load-bearing capacity decreases by temperatures over 40 °C.Temperature range:-20 °C to +80 °C.
Briefly up to +90 °C.Accessory:95025 Steel plate swivel and fixed castors with elastic solid rubber tread, medium load version
95025-01 Steel plate swivel and fixed castors with polyurethane elastomer tread, heavy duty versionSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95060-05 Heavy-duty wheels with polyurethane tread and aluminium wheel hub

222 kB

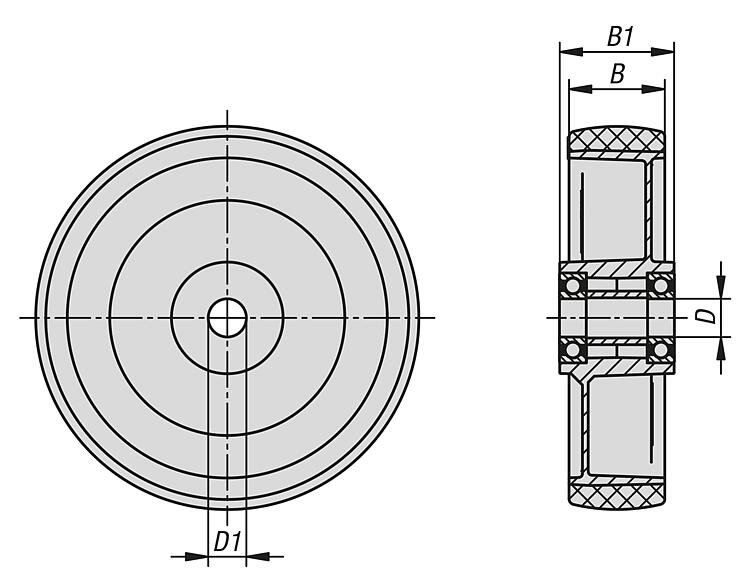

Drawings

Item selection/filter

Order No.	Main material	Wheel bearing	D	B	B1	D1	Permissible load kg	Material tread	Price
95060-05-10040	aluminium	Ball bearing	100	40	40	15	400	polyurethane	on request
95060-05-12540	aluminium	Ball bearing	125	40	45	15	550	polyurethane	on request
95060-05-15050	aluminium	Ball bearing	150	50	60	20	650	polyurethane	on request
95060-05-16050	aluminium	Ball bearing	160	50	60	20	750	polyurethane	on request
95060-05-20050	aluminium	Ball bearing	200	50	60	20	800	polyurethane	on request
