95060-06Heavy-duty wheels with polyurethane tread and steel wheel hub |
go back |
|
Item description/product images |
|
|

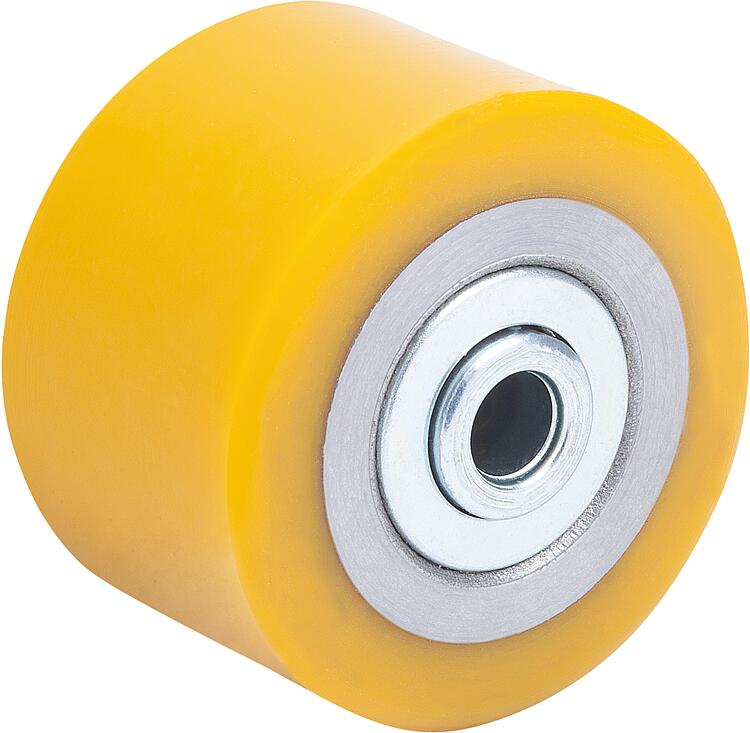

DescriptionProduct description:The heavy-duty wheels with polyurethane tread and steel wheel hubs (Shore 92A) are characterised by high abrasion resistance and low rolling resistance. The light brown, non-marking polyurethane tread is firmly bonded to the steel wheel hub. The wheels are perfect for heavy loads and demanding industrial floor conditions.Material:Wheel hub steel.
Tread polyurethane.Version:Polyurethane light brown.Note:The wheels have a high chemical resistance to many aggressive media.
The load-bearing capacity decreases by temperatures over 40 °C.Temperature range:-20 °C to +70 °C.
Briefly up to +90 °C.Accessory:95045 Steel plate swivel caster compact version.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

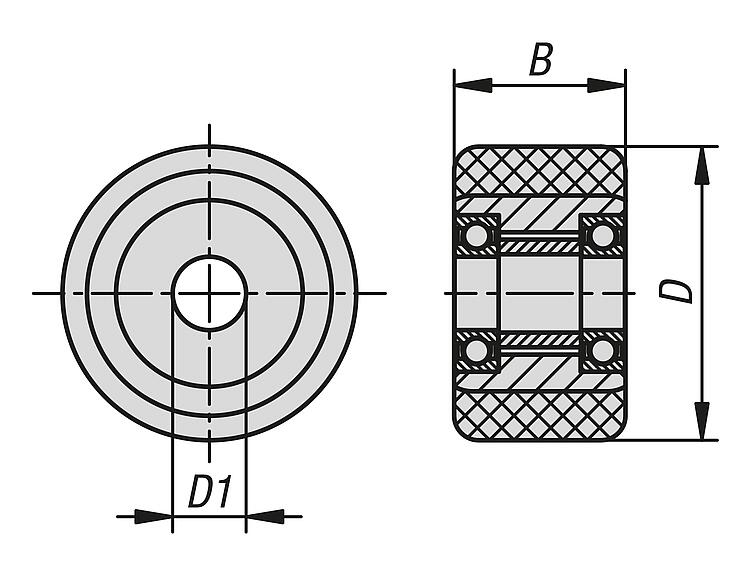

| Order No. | Main
material | Wheel
bearing | D
| B | B1 | D1 | Permissible
load
kg | Material
tread
| CAD | Acc. | Price | Order |
|---|
| 95060-06-03527 | steel | Ball bearing | 35 | 27 | 30 | 6 | 100 | polyurethane |  | | on request | | | 95060-06-05033 | steel | Ball bearing | 50 | 33 | 36 | 8 | 150 | polyurethane | | | on request | |
