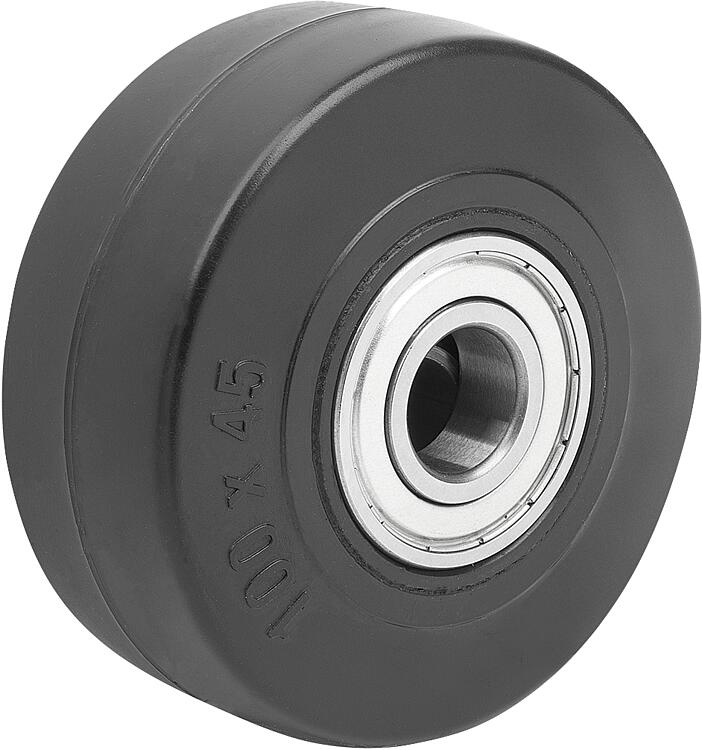

        Heavy-duty wheels, solid rubber with polyamide or steel wheel hub

Item description/product images

DescriptionProduct description:The heavy-duty solid rubber wheels with polyamide or steel wheel hubs (Shore 65A) guarantee excellent travel comfort and low rolling resistance. The robust wheel hubs made of triple-welded sheet steel (or polyamide for Ø 80-125 mm) is extremely resistant to impacts and dirt. The tyres are firmly vulcanised on or pressed on with steel wire reinforcement.Material:Wheel hub steel or polyamide.
Tread elastic solid rubber.Version:Steel anthracite.
Polyamide black.
Elastic solid rubber, black.Note:The wheels have a high chemical resistance to many aggressive media, but not to oils.

The load-bearing capacity decreases by temperatures over 60 °C.Temperature range:-20 °C to +80 °C.
Briefly up to +100 °C.Accessory:95020 Steel plate swivel and fixed castors with steel wire reinforced elastic solid rubber tyres, heavy duty versionSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95060-15 Heavy-duty wheels, solid rubber with polyamide or steel wheel hub

239 kB

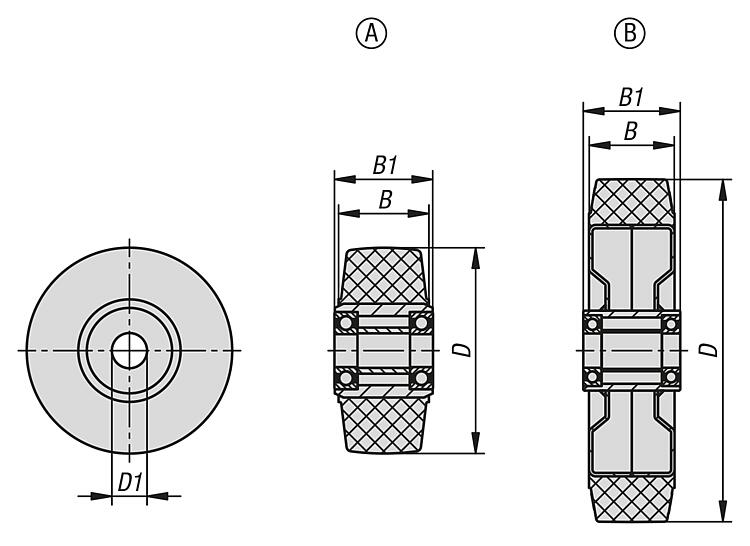

Drawings

Item selection/filter

Order No.	Form	Main material	Wheel bearing	D	B	B1	D1	Permissible load kg	Material tread	Price
95060-15-1004520	A	polyamide	Ball bearing	100	45	45	20	45	Elastic solid rubber	on request
95060-15-1255320	A	polyamide	Ball bearing	125	53	60	20	53	Elastic solid rubber	on request
95060-15-1605020	B	steel	Ball bearing	160	50	60	20	50	Elastic solid rubber	on request
95060-15-2005020	B	steel	Ball bearing	200	50	60	20	50	Elastic solid rubber	on request
95060-15-2005025	B	steel	Ball bearing	200	50	60	25	50	Elastic solid rubber	on request
95060-15-2506025	B	steel	Ball bearing	250	60	70	25	60	Elastic solid rubber	on request
