05596-31Snap locks, steel or stainless steel, with fold-down grip |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing steel or stainless steel.Version:Housing black powder-coated.Note:The seal protects against water and dust.
Door leaf thickness max. 6 mm.
The locks have a single key system, i.e. each lock can be opened with the same key.
Form A: A padlock bracket is provided for additional security using a padlock.Type of operation:When the grip is pulled, the latch moves into the open position and the door can be opened. The door latches automatically when pushed shut.Assembly:1. Cut out a mounting hole as shown in the drawing.
2. Attach the mounting bracket.
3. Fasten the snap lock from the rear using nuts.Supplied withNuts, seal, 2 keys and mounting bracket are supplied.
Screws for the mounting bracket are not supplied.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

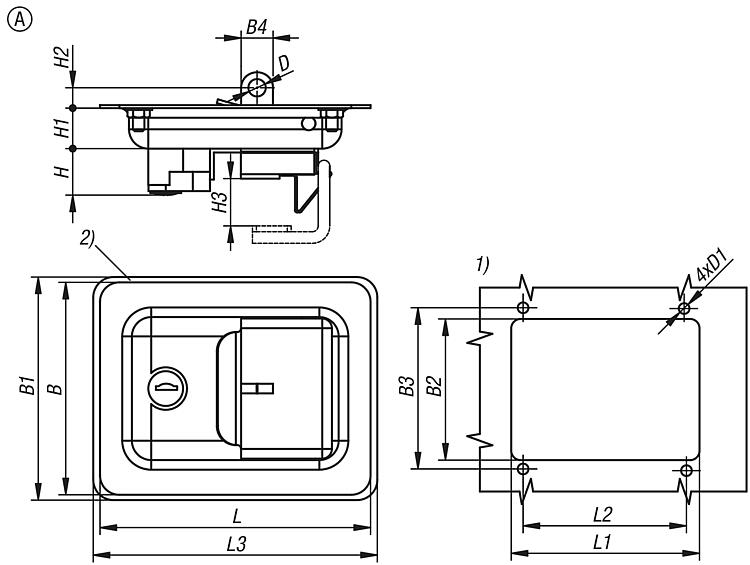

Drawings (total overview) |

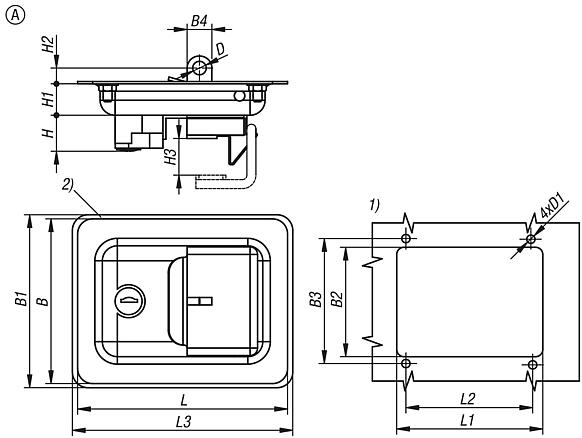

Snap locks, steel or stainless steel, with fold-down grip, Form A |
More information |
| Order No. | Form | Form definition | Main
material | B
| B1 | B2 | B3 | B4 | D | D1 | H | H1 | H2 | H3 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| 05596-31-000140110 | A | with padlock hole | steel | 110 | 114,5 | 83,5 | 94 | 16,5 | 9 | 6,5 | 22 | 21 | 9 | 27 | 140 | 113,5 | 100 | 144,5 |  | | on request | |
|

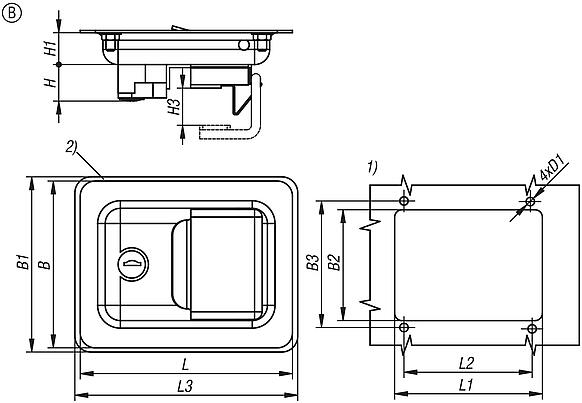

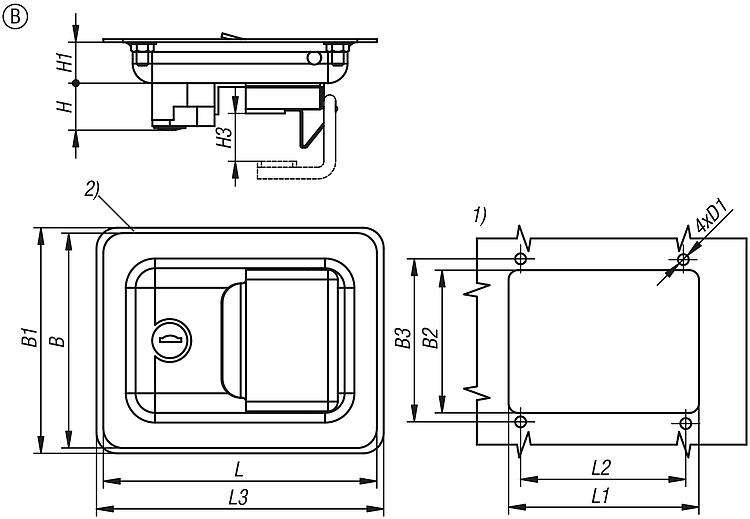

Snap locks, steel or stainless steel, with fold-down grip, Form B |
More information |
| Order No. | Form | Form definition | Main
material | B
| B1 | B2 | B3 | D1 | H | H1 | H3 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|
| 05596-31-101140110 | B | without padlock bracket | stainless steel | 110 | 114,5 | 83,5 | 94 | 6,5 | 22 | 21 | 27 | 140 | 113,5 | 100 | 144,5 | | | on request | |
|
