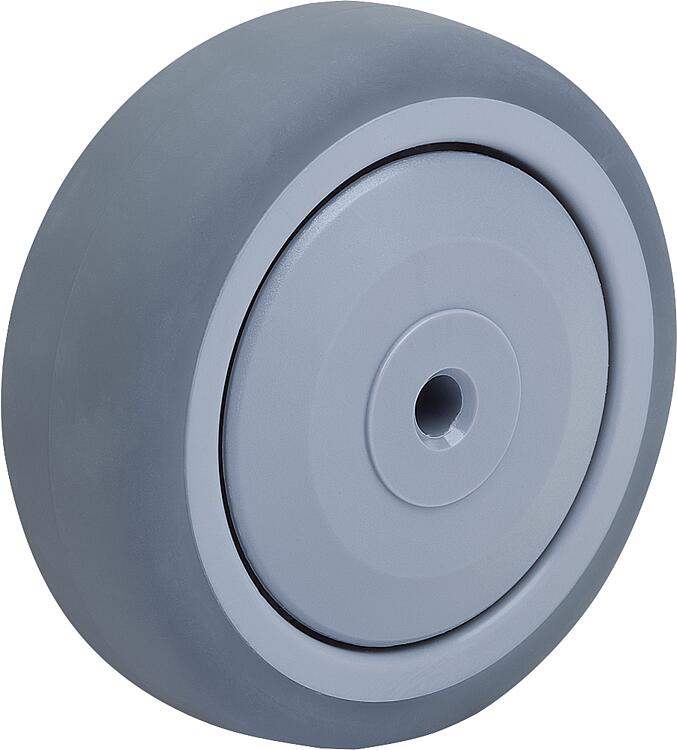

        Polypropylene wheels with rubber tread

Item description/product images

DescriptionProduct description:These polypropylene wheels with rubber tread offer minimal rolling resistance and non-marking running through high-quality thermoplastic rubber elastomer (TPE) tread (Shore 85A). The unbreakable polypropylene wheel hub ensures stability and high chemical resistance. Material:Wheel hub polypropylene.
Tread rubber elastomer (TPE).Version:Polypropylene silver grey.
Rubber elastomer grey.Note:The wheels have a high chemical resistance to many aggressive media, but not to oils.

The load-bearing capacity decreases by temperatures over 30 °C.Temperature range:-20 °C to +60 °C.Accessory:95046-17 Swivel and fixed equipment castors, steel with TPE tread, for aluminium profilesSpecial features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 95056-20 Polypropylene wheels with rubber tread

197 kB

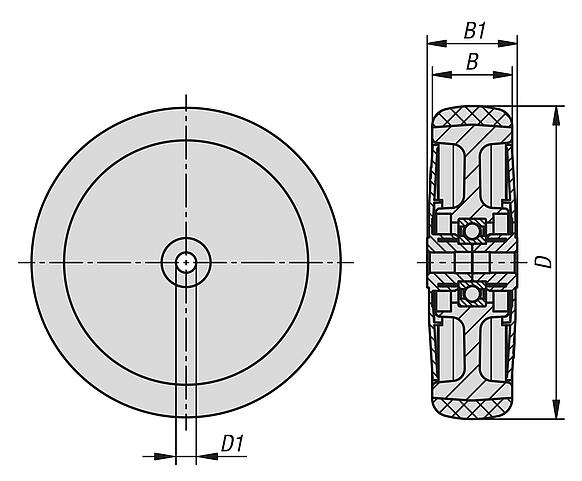

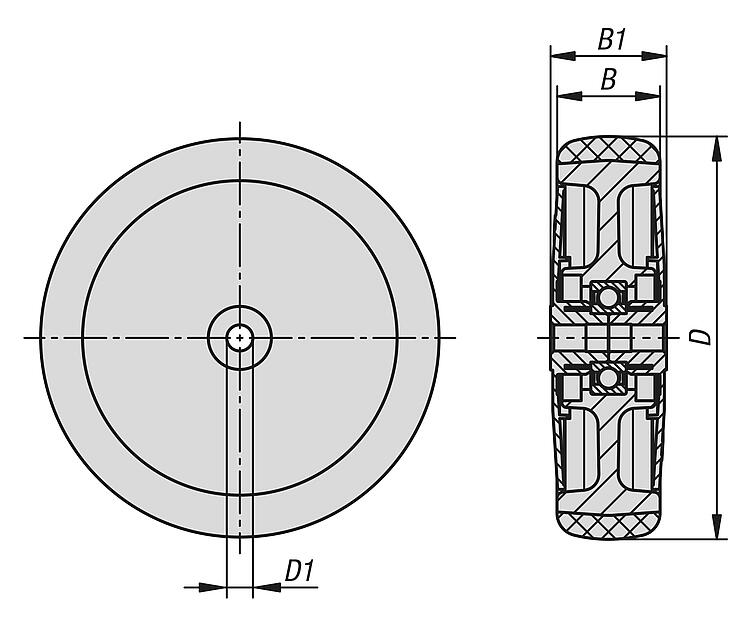

Drawings

Item selection/filter

Order No.	Main material	Wheel bearing	D	B	B1	D1	Permissible load kg	Material tread	Price
95056-20-07525	polypropylene	Ball bearing	75	25	31	6	75	Rubber elastomer	on request
95056-20-08032	polypropylene	Ball bearing	80	32	36	8	100	Rubber elastomer	on request
95056-20-10032	polypropylene	Ball bearing	100	32	36	8	110	Rubber elastomer	on request
95056-20-12532	polypropylene	Ball bearing	125	32	36	8	125	Rubber elastomer	on request
